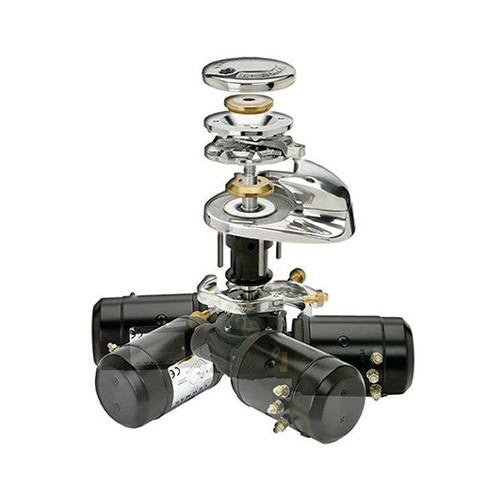

Lewmar V3 Vertical Windlass Kit 6672211110-139, 12V 1000W Gypsy Only, Fits 3/8 Inch G4 Chain, 2260 lbs Max Pull

The Lewmar V3 Vertical Windlass Kit (part number 6672211110-139) is a 12-volt, 1000-watt electric anchor windlass built for power and sailboats in the 40 to 50 foot range. The low-profile deck unit conceals a drive train, worm gearbox, and splined shaft that work together to raise and lower rode chain or all-chain anchor lines at the touch of a button, giving you controlled, repeatable anchoring without manual winching.

Installation is designed around Lewmar's stainless steel FastFit clamping system, which aligns the deck unit and motor gearbox so a single person can complete the fit correctly the first time, without a helper below deck to hold parts in place. The windlass is sized for 3/8 inch G4 chain and is rated for a maximum pull of 2,260 lbs, giving it enough holding power for anchoring tasks on boats in its size class. This listing is for the gypsy-only configuration of the V3 windlass. The compact housing keeps deck footprint low while the internal components stay protected from the elements.

Specifications

• Brand: Lewmar
• Manufacturer Part Number: 6672211110-139
• Product Type: Vertical Windlass
• Voltage: 12V
• Motor Power: 1000 watts
• Maximum Pull: 2260 pounds
• Chain Size: 3/8 inch G4 chain
• Boat Length Compatibility: 40 to 50 feet
• Included Components: Gypsy only
• Item Dimensions: 18 x 10 x 6 inches
• Package Dimensions: 18.5 x 15 x 14.5 inches
• Weight: 49 pounds
• Material: Stainless steel
• UPC: 743683328121

Frequently Asked Questions

What boats is the Lewmar V3 windlass kit 6672211110-139 designed for? It is designed for power and sailboats in the 40 to 50 foot range, running on a 12V electrical system.

What size chain does this windlass fit? The Lewmar V3 windlass (part 6672211110-139) is sized for 3/8 inch G4 chain.

How much pulling force does the Lewmar V3 windlass produce? It has a maximum pull rating of 2,260 lbs, driven by a 1000-watt, 12V motor.

Is this the full windlass motor and gearbox, or just the gypsy? This listing, part number 6672211110-139, is the gypsy-only configuration of the Lewmar V3 vertical windlass.

What is FastFit and how does it help installation? FastFit is Lewmar's stainless steel clamping system that aligns the deck unit and motor gearbox during mounting, letting one person complete the installation without needing to hold parts in alignment from below deck.

What material is the Lewmar V3 windlass made from? The windlass is constructed with stainless steel to hold up to marine conditions and protect the chain and rode over time.

How much does the Lewmar V3 windlass kit weigh? The Lewmar V3 windlass kit, part 6672211110-139, weighs 49 pounds.

What are the item dimensions of the Lewmar V3 windlass? The windlass measures 18 x 10 x 6 inches, with a shipping package size of 18.5 x 15 x 14.5 inches.

Does the Lewmar V3 windlass have a low profile on deck? Yes, the V3 windlass has a compact housing that conceals the drive train, worm gearbox, and splined shaft to keep the deck footprint low.

What voltage does the Lewmar V3 windlass 6672211110-139 run on? It runs on a 12V power supply.

Can one person install the Lewmar V3 windlass alone? Yes, the FastFit clamping system on the Lewmar V3 windlass is designed so installation can be completed by one person.
