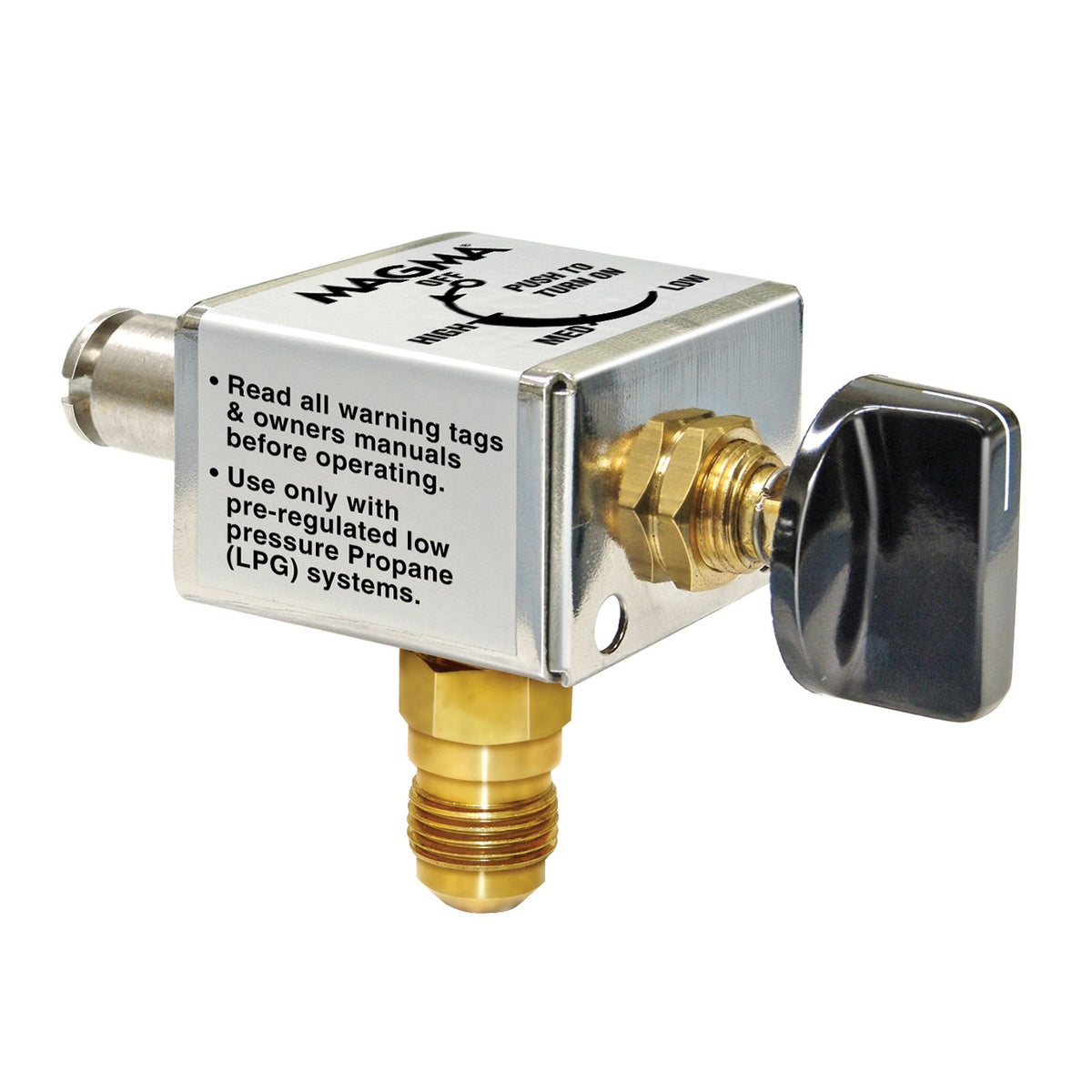

Magma A10-220 LPG Low Pressure Control Valve, Type 3, Low Output, Converts Type 1 Propane Grills to On-Board LPG

The Magma A10-220 is a low pressure LPG (propane) control valve built to convert a Magma grill from its factory Type 1 control valve/regulator and 1-lb propane fuel canister to a pre-regulated, low pressure, on-board LPG (propane) system. It is designed for Magma gas kettles and Magma rectangular gas grills with a 9 inch x 18 inch grill surface that currently use the Type 1 canister setup.

Constructed from stainless steel and brass, the A10-220 is built to hold up in the marine environment. It connects to the low pressure side of the system's regulator, delivering fuel consistently and safely to the grill once installed. The valve has a single port with FNPT female connections and a 1/4-14 NPT thread size, and functions as a Type 3, low output control valve within Magma's LPG lineup.

This is a conversion valve only: the hose and tank fittings needed to complete the connection to an on-board propane supply are not included, so the installation can be customized to the boat or RV's existing propane plumbing. This lets boat owners tie their Magma grill into a permanent, on-board propane source and do away with disposable 1-lb propane canisters.

Specifications

• Brand: Magma
• Manufacturer Part Number: A10-220
• Valve Type: LPG Control Valve, Type 3, Low Output
• Material: Stainless steel and brass
• Finish: Stainless steel
• Inlet Connection Type: FNPT
• Outlet Connection Type: FNPT
• Thread Size: 1/4-14 NPT
• Thread Type: Female
• Number of Ports: 1
• Item Dimensions: 7.8 x 4.8 x 1.8 inches
• Weight: 0.5 pounds
• Fuel Type: LPG (propane)
• Converts From: Type 1 control valve/regulator and 1-lb propane fuel canister
• Converts To: Pre-regulated, low pressure, on-board LPG (propane) system
• Included Components: LPG control valve (hose and tank fittings not included)
• UPC: 088379102204

Fitment

• Magma gas kettles
• Magma rectangular gas grills with a 9 inch x 18 inch grill surface
• Grills currently equipped with a Type 1 control valve/regulator and 1-lb propane fuel canister

Frequently Asked Questions

What does the Magma A10-220 do? The Magma A10-220 is a low pressure control valve that converts a Magma grill from its Type 1 control valve/regulator and 1-lb propane canister setup to a pre-regulated, low pressure, on-board LPG (propane) system.

Which Magma grills is the A10-220 compatible with? It fits Magma gas kettles and Magma rectangular gas grills with a 9 inch x 18 inch grill surface that use a Type 1 control valve/regulator and 1-lb propane canister.

Are hose and tank fittings included with the A10-220? No. The A10-220 control valve does not include the hose or tank fittings needed to connect it to an on-board propane system; these must be sourced separately for the installation.

What is the A10-220 made of? The A10-220 control valve is built from stainless steel and brass, materials chosen to hold up in the marine environment.

What size are the valve connections on the A10-220? The A10-220 has a single port with FNPT (female NPT) inlet and outlet connections and a 1/4-14 NPT thread size.

How big is the A10-220 control valve? The A10-220 measures 7.8 x 4.8 x 1.8 inches and weighs 0.5 pounds.

Where does the A10-220 connect in the propane system? The A10-220 connects to the low pressure side of the regulator in an on-board LPG (propane) system, delivering fuel to the grill after the regulator has stepped it down.

Why would I install the A10-220 instead of using disposable propane canisters? Installing the A10-220 lets a Magma grill draw from a permanent, on-board propane source instead of 1-lb disposable canisters, converting the Type 1 canister setup to a pre-regulated on-board LPG system.

Is the A10-220 a Type 1, Type 2, or Type 3 valve? The A10-220 is a Type 3, low output control valve used to convert a grill's existing Type 1 control valve/regulator setup to an on-board LPG system.

Does the A10-220 work with kettle-style Magma grills? Yes, the A10-220 is compatible with Magma gas kettles as well as Magma rectangular gas grills with a 9 inch x 18 inch grill surface.
