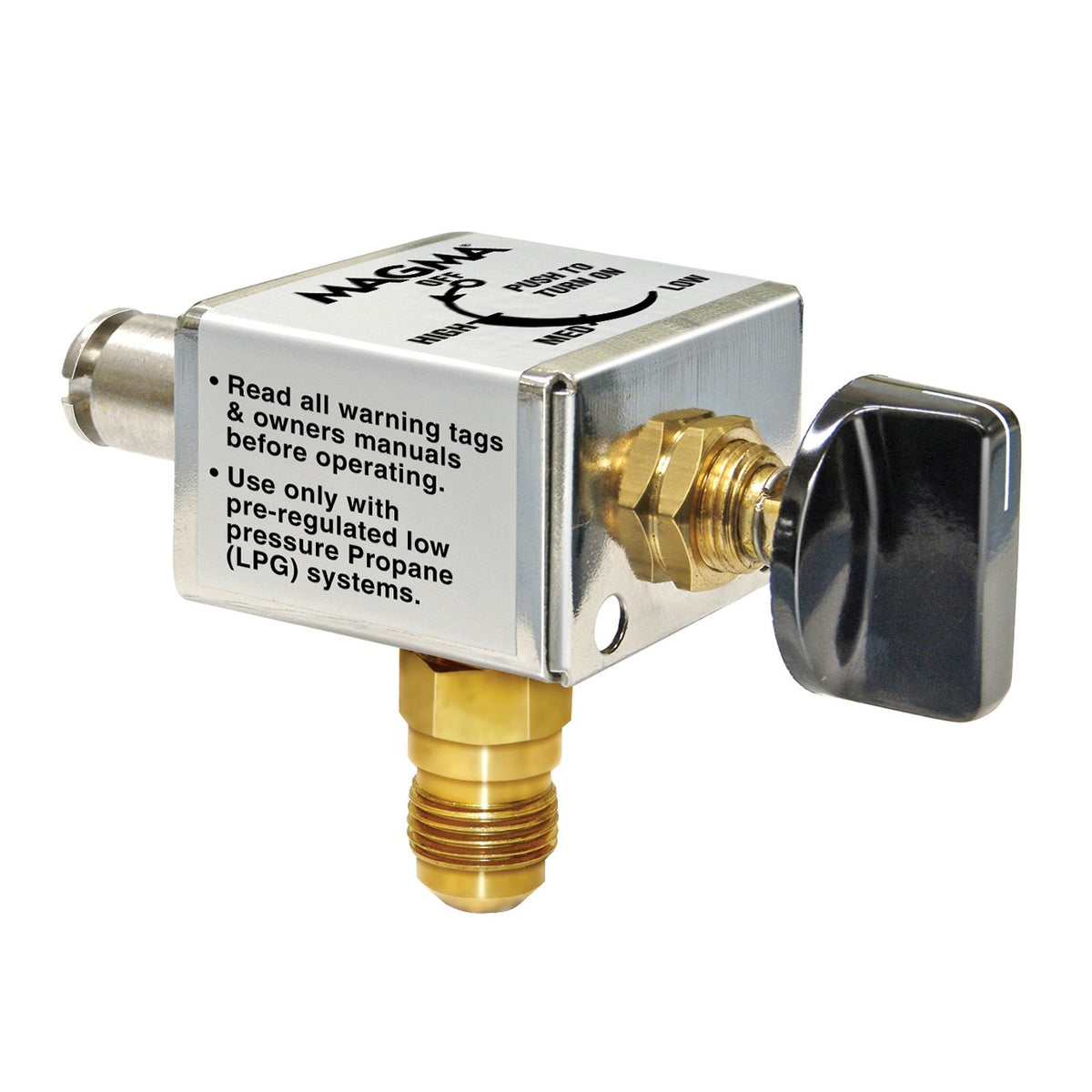

Magma A10-223 LPG Low Pressure Control Valve, Type 3, Medium Output for 12 Inch x 18 Inch Grills

The Magma A10-223 is a Type 3 low pressure control valve, medium output, built to convert a Magma grill from its original Type 1 control valve/regulator and 1-lb propane fuel canister to a pre-regulated, low pressure, on-board LPG (propane) system. This is the setup boat owners use to tie their Magma grill into the vessel's permanent propane supply instead of running through disposable 1-lb canisters.

Construction is stainless steel and brass, chosen to hold up to sustained exposure to salt air and moisture in a marine environment. The valve connects specifically to the low-pressure side of the system's regulator, which keeps fuel delivery to the grill consistent and safe. It has two ports with compression-type inlet and outlet connections, a 0.25 inch outlet connection size, and 1/4 inch NPT compression thread fittings.

This valve is designed for Magma rectangular gas grills with a 12 inch x 18 inch grill surface. Hose and tank fittings are not included, which leaves the final connection open for you to customize to your specific on-board propane system.

Specifications

• Brand: Magma
• Manufacturer Part Number: A10-223
• Type: Low Pressure Control Valve, Type 3, Medium Output
• Material: Stainless steel and brass
• Item Dimensions: 7.8 x 4.8 x 1.8 inches
• Weight: 0.5 pounds
• Exterior Finish: Stainless Steel
• Inlet Connection Type: Compression
• Outlet Connection Type: Compression
• Number of Ports: 2
• Outlet Connection Size: 0.25 inches
• Thread Size: 1/4 inch NPT
• Thread Type: Compression
• Connector Type: Compression
• Grill Compatibility: 12 inch x 18 inch grill surface
• Included Components: Low Pressure Control Valve, Type 3

Fitment

• Magma rectangular gas grills with a 12 inch x 18 inch grill surface, converting from a Type 1 control valve/regulator and 1-lb propane fuel canister

Frequently Asked Questions

What does the Magma A10-223 control valve do? It converts a Magma grill from its original Type 1 control valve/regulator and 1-lb propane fuel canister to a pre-regulated, low pressure, on-board LPG (propane) system, so the grill can run off a boat's permanent propane supply instead of disposable canisters.

Which grills does the A10-223 fit? The A10-223 is designed for Magma rectangular gas grills with a 12 inch x 18 inch grill surface that currently use a Type 1 control valve and 1-lb propane canister.

Is the A10-223 a Type 1, Type 2, or Type 3 valve? The Magma A10-223 is a Type 3 low pressure control valve with medium output, used to replace a Type 1 setup on compatible Magma grills.

Are hose and tank fittings included with this valve? No, hose and tank fittings are not included with the A10-223. It ships as the control valve only, so you can connect it to your specific on-board propane system's existing hose and fitting configuration.

What material is the A10-223 control valve made from? The A10-223 is made from stainless steel and brass, materials chosen to resist corrosion in a marine environment.

What are the dimensions of the A10-223? The Magma A10-223 measures 7.8 x 4.8 x 1.8 inches and weighs 0.5 pounds.

What size are the connections on the A10-223? The A10-223 has compression-type inlet and outlet connections, a 0.25 inch outlet connection size, and 1/4 inch NPT compression thread fittings, with 2 ports total.

Which side of the regulator does the A10-223 connect to? The A10-223 connects to the low-pressure side of the system's regulator, which provides consistent and safe fuel delivery to the grill.

Can the A10-223 be used with a permanent on-board LPG tank? Yes, that is its purpose: the A10-223 lets a Magma grill be integrated into a pre-regulated, low pressure, on-board LPG (propane) system rather than running on 1-lb disposable canisters.

Is the A10-223 the same valve used on Magma grills sold in Australia, New Zealand, or Europe? No, the A10-223 is the United States version of this Type 3 low pressure control valve; Magma grills sold in other regions use separate part numbers for their equivalent valves.

Why would I need to replace or upgrade my grill's control valve to the A10-223? Boat owners upgrade to the A10-223 to move away from disposable 1-lb propane canisters and connect their Magma grill directly to the vessel's on-board propane supply through a pre-regulated, low pressure system.
