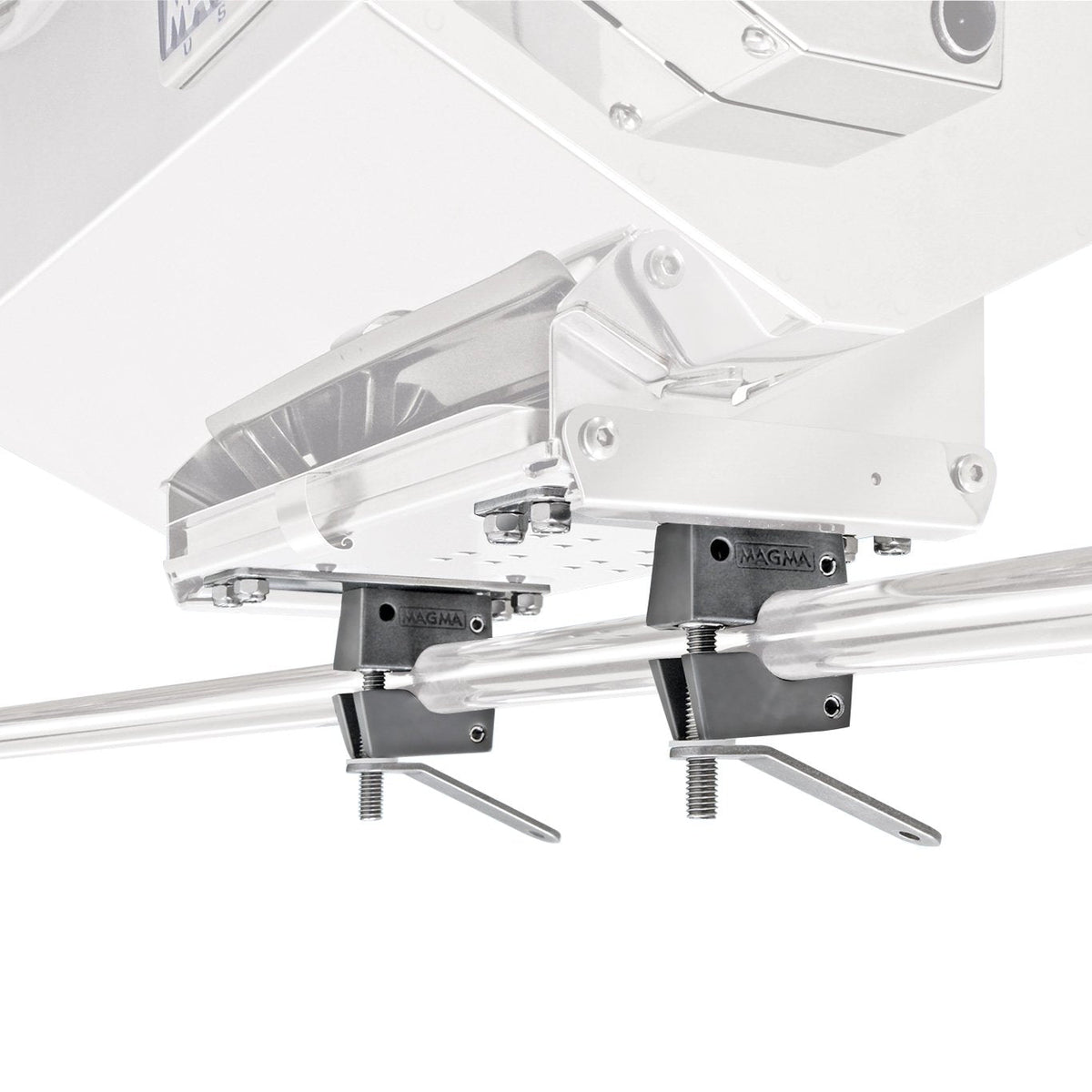

Magma T10-585 Dual Horizontal Round Rail Mount - Oversize 1-1/8 in. Or 1-1/4 in. Rails

The Magma T10-585 is a dual horizontal round rail mount built for boaters who need a strong, no-tools mounting point for Magma grills and tables on oversize round rails. It is designed to fit rails measuring 1-1/8 inches (28.6 mm) or 1-1/4 inches (31.8 mm) in diameter, making it a fit for larger stern and side rails found on many boats.

What sets this mount apart is its pivoting design, which lets it attach not only to straight sections of rail but also to curved rails or across the corner of a stern rail, giving installers flexibility in tight or angled spaces. Construction is 304 stainless steel paired with 356 hard anodized aluminum, a combination chosen for strength and rigidity so the mount will not slip once clamped in place. When the grill or table is not in use, the mount detaches instantly without any tools, allowing for compact storage and leaving no loose hardware attached to the rail. This tool-free release is a key convenience feature for boaters who regularly stow their cooking or dining accessories between uses.

Specifications

• Brand: Magma
• Manufacturer Part Number: T10-585
• Rail Size: 1-1/8 inches (28.6 mm) or 1-1/4 inches (31.8 mm)
• Material: 304 stainless steel and 356 hard anodized aluminum
• Finish: Polished and hard anodized
• Mounting Type: Rail mount, tool-free detachable
• Design: Pivoting, fits curved rails or across stern rail corners
• Dimensions: 9.8 x 6.8 x 2 inches
• Weight: 1.81 pounds

Frequently Asked Questions

What rail sizes does the Magma T10-585 fit? The T10-585 is built for oversize round rails measuring 1-1/8 inches (28.6 mm) or 1-1/4 inches (31.8 mm) in diameter.

Can this mount be installed on a curved rail? Yes, the T10-585 uses a pivoting design that allows it to attach to curved rails or across the corner of a stern rail, not just straight sections.

What is the Magma T10-585 made of? It is constructed from 304 stainless steel and 356 hard anodized aluminum for strength and rigidity in a marine environment.

Do I need tools to remove the mount? No tools are required. The T10-585 detaches instantly by hand for compact storage, leaving no hardware attached to the rail.

Will the mount slip once it is clamped onto the rail? The T10-585 is designed to be incredibly strong and rigid so it will not slip on the rail once installed.

What are the dimensions of the T10-585 mount? The Magma T10-585 measures 9.8 x 6.8 x 2 inches.

How much does the T10-585 weigh? The T10-585 weighs 1.81 pounds.

What does 'Dual Horizontal Round' mean in the product name? It describes the mount style: a horizontal rail mount configuration designed for round rail stock, as opposed to square or oval rail profiles.

Is this mount left attached to the rail when not in use? No, the T10-585's quick-detach design means it can be fully removed from the rail, leaving no hardware behind when it is not needed.

What is the difference between the T10-585 and the T10-590? The T10-585 is sized for oversize rails of 1-1/8 inches or 1-1/4 inches, while the similar Magma T10-590 mount is made for large rails of 1-1/2 inches, a different diameter rail.

Is the Magma T10-585 genuine Magma hardware? Yes, the T10-585 is a genuine Magma rail mount, identified by its Magma part number T10-585.
