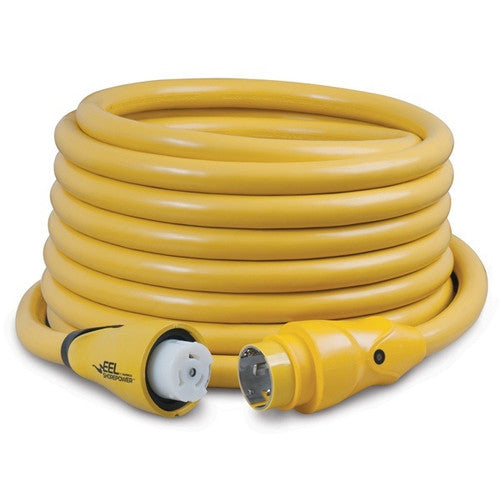

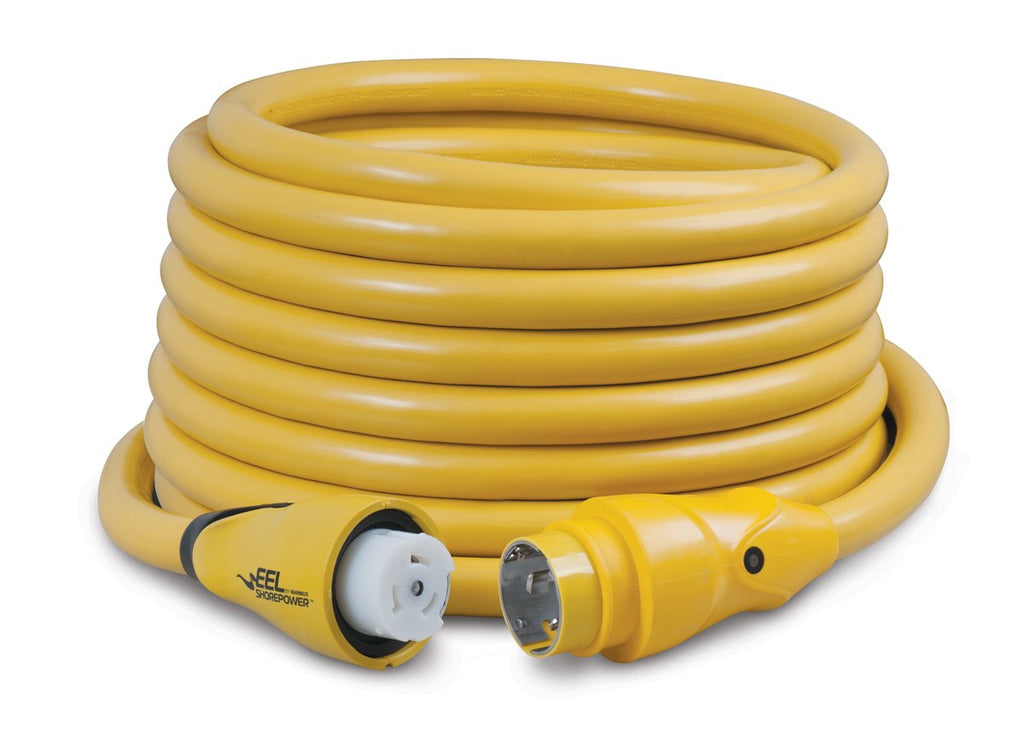

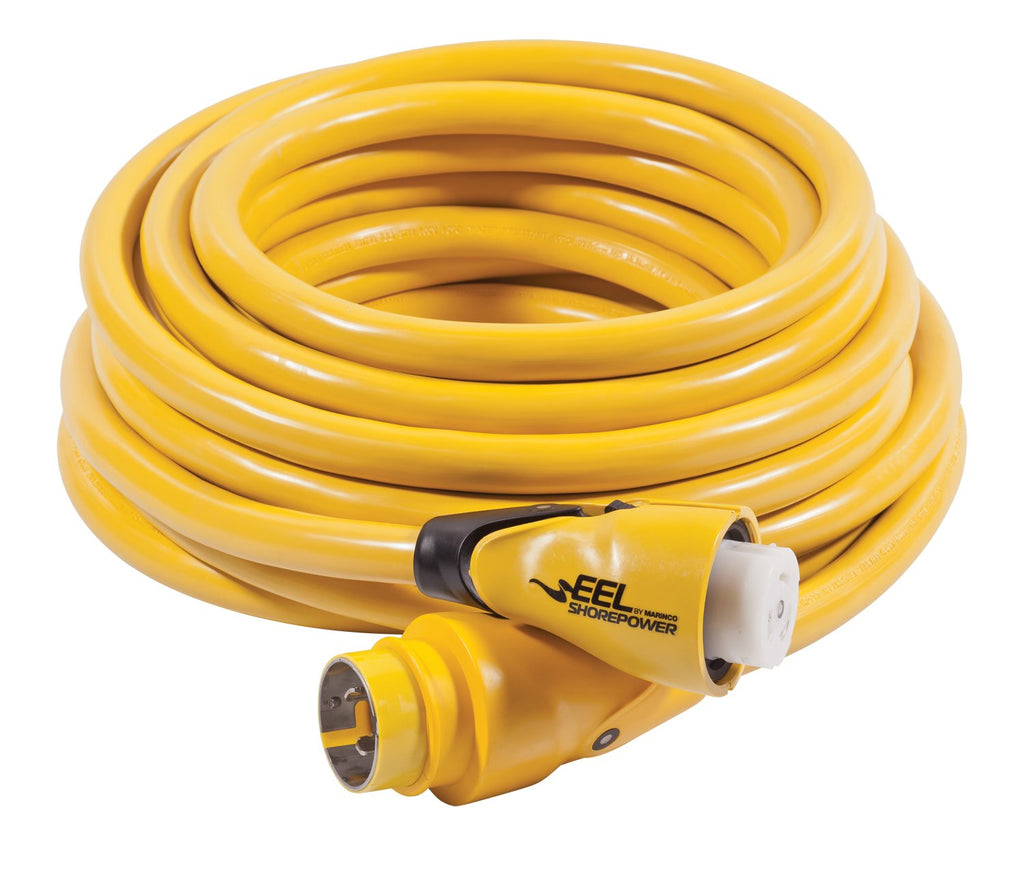

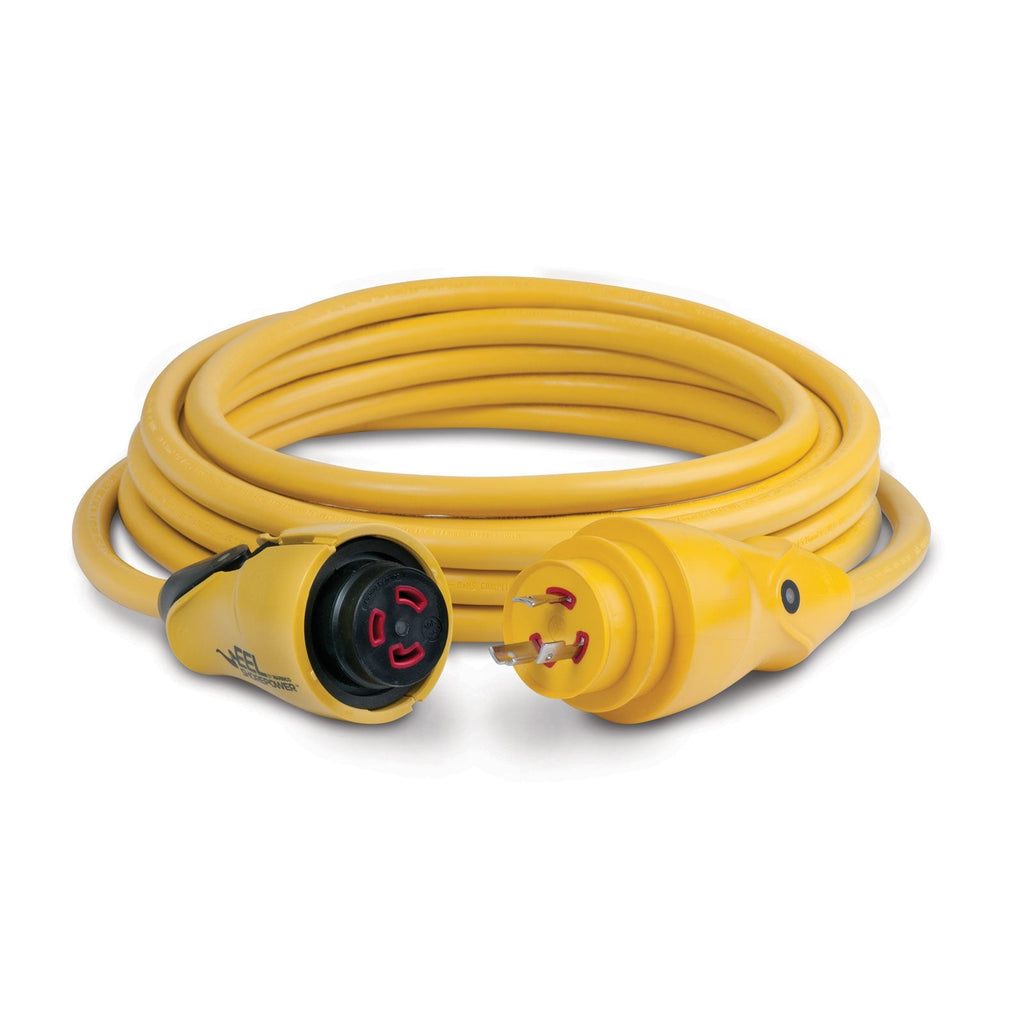

Marinco EEL Shore Power Cordsets - 30 Amp & 50 Amp, Available in 12' to 50' Lengths

The Marinco EEL shore power cordset connects your boat's shore power inlet to a dock power pedestal with a watertight, locking connection that stands up to marine environments. Every EEL cordset uses Marinco's patented jaw-clamp technology, which closes tightly around the pedestal connector to form a waterproof seal and resist accidental disconnection from wave action or dock traffic. A built-in cord light glows when the cordset is energized, giving you an instant visual check that shore power is live before you step aboard. The line spans 30 amp 125 volt cordsets for smaller boats and 50 amp 125 volt or 125/250 volt cordsets for larger vessels with heavier electrical loads, in lengths from 12 feet up to 50 feet to match the distance between your boat's inlet and the dock pedestal.

Specifications

• Brand: Marinco
• Connector gender: Male-to-female
• Color: Yellow
• Water resistance: Waterproof, jaw-clamp watertight seal
• UL Listed: Yes
• Cord light: Illuminates when powered
• Amperage: 30 amp or 50 amp depending on model
• Voltage: 125 volt or 125/250 volt depending on model
• Lengths: 12, 25, or 50 feet

Sizes & Options

Start by matching your boat's shore power inlet rating: 30 amp 125 volt boats need a CS30 series cordset, while 50 amp boats need either a CS503 (125 volt) or CS504 (125/250 volt) cordset depending on their shore power inlet configuration. Once you've confirmed amperage and voltage, choose the length that reaches from your boat's inlet to the dock pedestal with enough slack to avoid tension on the connectors, without so much excess cord that it becomes a trip hazard on deck or dock. Shorter cords (12-25 feet) suit boats docked close to the pedestal, while 50-foot cords give more reach for larger boats or pedestals set farther down the dock.
