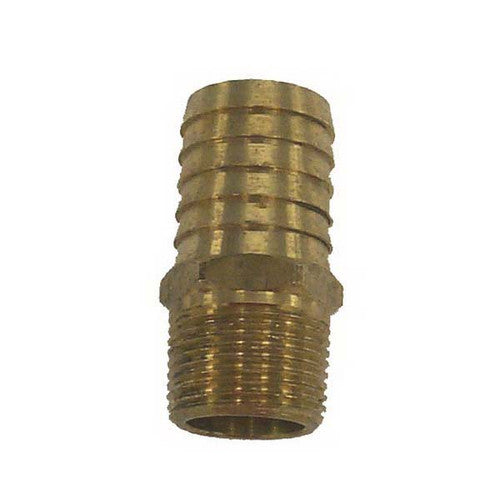

Sierra 18-4461 Brass Hose Barb Fitting, 3/4 Inch NPT x 1 Inch Hose, Replaces Mercruiser 22-807155, GLM 13984

The Sierra 18-4461 is a corrosion resistant brass hose barb fitting sized 3/4 inch - 14 NPT threads to a 1 inch hose barb. It is used to connect exhaust manifold plumbing and cooling hose runs, and appears in the Chrysler inboard exhaust manifold parts range alongside related mounting kits, manifold gaskets, spacers, and elbows. The fitting is machined from brass for corrosion resistance in a marine environment, making it suitable for saltwater and freshwater engine cooling and exhaust water circuits where a threaded NPT connection needs to step down to hose.

This part is a direct fit replacement for several OEM hose barb numbers used on Mercruiser and GLM applications, letting an installer swap in a Sierra part without hunting down the original manufacturer's fitting. Each Sierra part is built to meet or exceed the original equipment part it replaces. At 0.17 pounds, it is a light, compact brass component intended to thread directly into an existing NPT port.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 18-4461
• Product Type: Hose Barb Fitting
• Material: Brass
• Finish: Machined, corrosion resistant
• Thread Size: 3/4 inch - 14 NPT
• Hose Barb Size: 1 inch hose
• Connector Type: Barb
• Item Dimensions: 1 x 4 x 5.12 inches
• Weight: 0.17 pounds
• Application Category: Chrysler Inboard Exhaust Manifolds
• OEM Cross-Reference: GLM 13984, Mercruiser 22-807155, 22-866725, 22-863804, 22-45084

Fitment

Listed within the Chrysler inboard exhaust manifold parts range as a 3/4 inch NPT to 1 inch hose barb fitting.

Replaces (OEM)

GLM 13984; Mercruiser 22-807155, 22-866725, 22-863804, 22-45084.

Frequently Asked Questions

What size hose does the Sierra 18-4461 fit? The Sierra 18-4461 has a 3/4 inch - 14 NPT thread on one end and a 1 inch hose barb on the other, so it steps a threaded NPT port down to a 1 inch hose connection.

Is the 18-4461 interchangeable with Mercruiser fittings? Yes, the Sierra 18-4461 is interchangeable with Mercruiser 22-807155, 22-866725, 22-863804, and 22-45084, as well as GLM 13984.

What material is the Sierra 18-4461 hose barb made of? It is made of brass with a machined finish, chosen for corrosion resistance in marine cooling and exhaust water circuits.

How much does the Sierra 18-4461 weigh? The Sierra 18-4461 brass hose barb weighs 0.17 pounds.

What are the dimensions of the 18-4461 fitting? The Sierra 18-4461 measures 1 x 4 x 5.12 inches as packaged.

Will the 18-4461 work in saltwater applications? Brass construction on the Sierra 18-4461 provides corrosion resistance, making it suitable for marine saltwater and freshwater exhaust and cooling hose connections.

What is the difference between the 18-4461 and the 18-8215 hose barb? Both are corrosion resistant brass 3/4 inch - 14 NPT fittings, but the 18-4461 barbs to a 1 inch hose while the 18-8215 barbs to a 3/4 inch hose - they are different SKUs for different hose sizes.

Is the Sierra 18-4461 an OEM part or an aftermarket replacement? The 18-4461 is a Sierra aftermarket part built to meet or exceed the original equipment fittings it replaces, including Mercruiser 22-807155 and GLM 13984.

What is included when I order the 18-4461? You receive one Sierra 18-4461 brass hose barb fitting; no additional mounting hardware or gaskets are included with this part number.

What thread type does the 18-4461 use? The Sierra 18-4461 uses a 3/4 inch NPT (National Pipe Thread) connection on the threaded end.

What application is the 18-4461 used on? The Sierra 18-4461 is listed under Chrysler inboard exhaust manifold parts as a hose barb fitting for exhaust and cooling hose connections.
