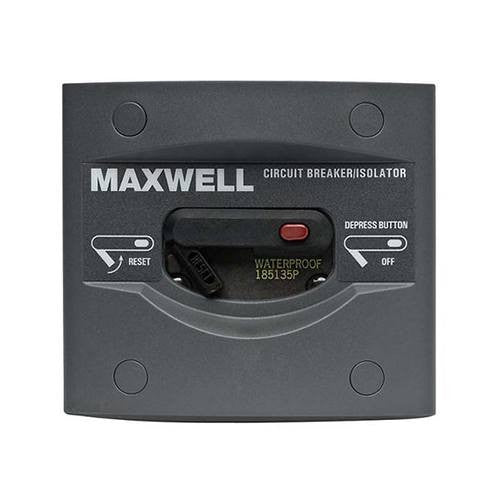

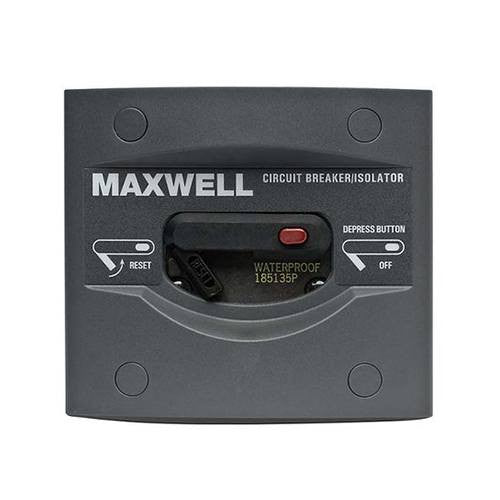

Maxwell Breaker/Isolator Panel for 12V/24V DC Windlass Systems - Available in 80 Amp and 135 Amp

The Maxwell Breaker/Isolator Panel protects the main DC conductor circuit feeding your Maxwell windlass or capstan. Wired into the power supply line between the battery and the windlass motor, it guards against short circuits and reduces the risk of DC motor burn-out if the winch is overloaded or jams under load. The panel also functions as a manual isolator, letting you disconnect the battery or electrical supply whenever the windlass is not in use, which protects the system from accidental activation and stray current draw. Built for both 12V and 24V DC installations, this panel mounts close to the battery power source for the shortest possible run of unprotected cable. Choose the 80 Amp panel for lighter-duty windlass and capstan installations, or step up to the 135 Amp panel for higher-draw systems that need additional headroom.

Specifications

• Brand: Maxwell
• Circuit Breaker Type: Standard
• Mounting Type: Panel mount
• Number of Poles: 2
• Voltage: 12V or 24V DC
• Category: Switches and solenoids

Sizes & Options

This panel is available in two current ratings: 80 Amp (P100790) and 135 Amp (P100791). Match the panel rating to your windlass motor's maximum draw and your existing wiring gauge -- check your windlass manufacturer's specification sheet for the recommended breaker size, and when in doubt, size up rather than down to avoid nuisance tripping under heavy load.
