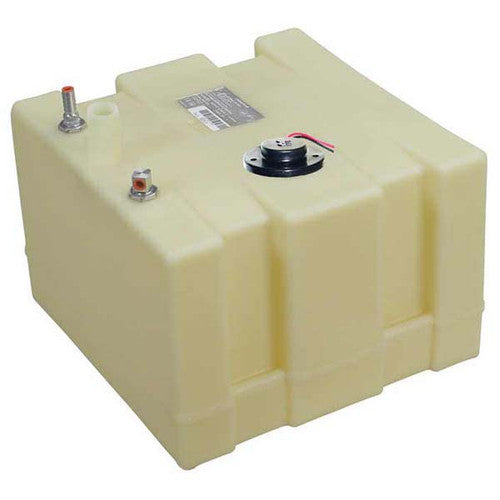

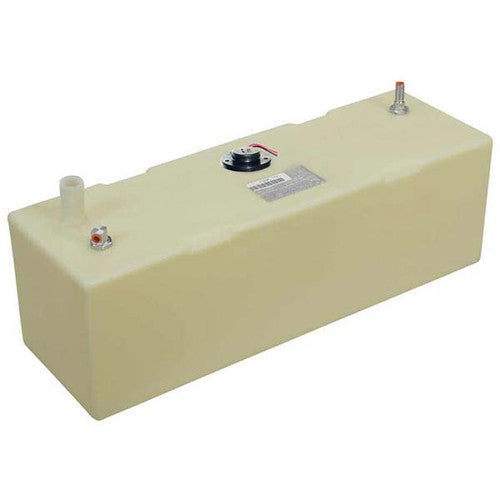

Moeller Below-Deck Permanent Fuel Tank - Available in 13, 15, and 23 Gallon Capacities

The Moeller Below-Deck Permanent Fuel Tank is a purpose-built replacement fuel tank engineered for boats built before 2011. Constructed from rugged, UV-stabilized plastic, each tank is fully ABYC-compliant and designed to install below deck in place of your boat's original factory tank. Every tank ships with a machined aluminum 3/8 inch withdrawal fitting featuring a 360 degree swivel poplock, a swing-arm fuel level sender (A002074), and a tie-down bracket (300110) for secure, vibration-resistant mounting. The corrosion-resistant fittings and shell stand up to today's ethanol- and biodiesel-blended fuels, while the wide -40 F to 176 F temperature rating means reliable performance whether you're running in cold northern lakes or hot southern coastal waters. Choose from three capacities - 13, 15, or 23 gallons - to match your boat's original tank footprint and your on-water range needs.

Specifications

• Brand: Moeller
• Category: Permanent Fuel Tank
• Material: Plastic
• Withdrawal Fitting: Machined aluminum, 3/8 inch, with 360 degree swivel poplock
• Fuel Pick Up: 1
• Diesel Return: No
• Sender: Swing Arm A002074
• Belly Tank: No
• Bracket Tie Down: 300110
• UV Rating: 8
• Temperature Rating: -40 F to 176 F
• Fitting Standard: ABYC-compliant
• Compatibility: For boats built before 2011

Sizes & Options

This tank line is sold by capacity: 13 gallon (032513), 15 gallon (032515), and 23 gallon (032623). Before ordering, confirm your boat was built prior to 2011 and measure your existing below-deck tank compartment, since capacity is directly tied to physical footprint - larger gallon ratings require more length, width, or height. Match the replacement tank to your original manufacturer specification or your boat's fuel system documentation to ensure a proper below-deck fit.
