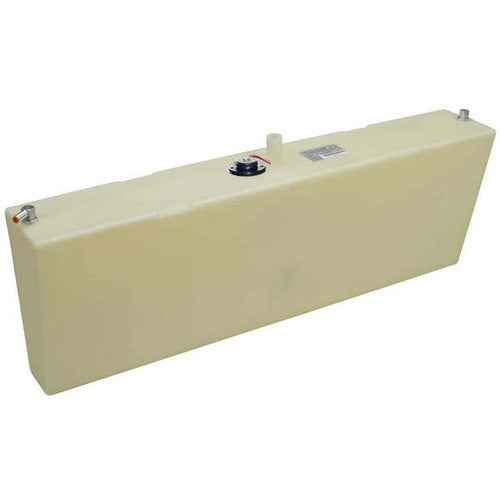

Moeller Marine 24 Gallon Below Deck Permanent Fuel Tank, Port Side Withdraw (032524)

The Moeller Marine 032524 is a 24 gallon (91 liter) below-deck permanent fuel tank built for installation beneath a boat's deck or in a dedicated fuel tank compartment. It is constructed of plastic and designed with a port side fuel withdraw configuration, meaning the fuel pickup and fitting are located on the port side of the tank rather than the starboard side or the center. This makes it suited for boat layouts where the fuel line and pickup need to route from the port side of the hull.

As a permanent (non-portable) tank, the 032524 is intended for a fixed, below-deck mounting position rather than being moved in and out of the boat like a portable fuel tank. It measures 51.00 in. L x 8.75 in. W x 20.63 in. H (1295 mm L x 222 mm W x 524 mm H) and weighs 22 pounds empty, and is rated for gasoline fuel systems. A matching tie-down bracket, part number 300110, is associated with this tank for securing it in place during installation.

Because fuel tank installation position and withdraw side directly affect fuel line routing, boat owners should confirm their existing tank's withdraw side and footprint before ordering to make sure the port side withdraw configuration of the 032524 matches their boat's fuel system layout.

Specifications

• Brand: Moeller Marine
• Manufacturer Part Number: 032524
• Capacity: 24 gallons (91 liters)
• Dimensions: 51.00 in. L x 8.75 in. W x 20.63 in. H (1295 mm L x 222 mm W x 524 mm H)
• Weight: 22 pounds
• Material: Plastic
• Fuel Withdraw Side: Port
• Installation Type: Below deck, permanent mount
• Fuel Type: Gasoline
• Compatible Tie-Down Bracket: 300110

Fitment

This is a below-deck permanent fuel tank intended for boats requiring a port side fuel withdraw configuration; confirm your boat's existing tank footprint and withdraw side before ordering.

Frequently Asked Questions

What is the fuel capacity of the Moeller Marine 032524 tank? The Moeller Marine 032524 holds 24 gallons (91 liters) of fuel.

Does the 032524 tank withdraw fuel from the port or starboard side? The 032524 is a port side withdraw tank, meaning the fuel pickup and fitting are located on the port side. It is not configured for starboard-side withdraw, so confirm your boat's fuel line routing matches a port side pickup before ordering.

What are the dimensions of the 032524 fuel tank? The 032524 measures 51.00 in. L x 8.75 in. W x 20.63 in. H (1295 mm L x 222 mm W x 524 mm H).

How much does the 032524 fuel tank weigh? The Moeller Marine 032524 weighs 22 pounds empty.

What material is the 032524 fuel tank made of? It is constructed of plastic, per Moeller Marine's specifications for the 032524 below-deck fuel tank.

Is the 032524 a portable or permanent fuel tank? It is a permanent, below-deck fuel tank meant for fixed installation, not a portable tank that gets carried in and out of the boat.

What fuel type is the 032524 tank designed for? The 032524 is designed for gasoline fuel systems.

Is there a tie-down bracket for the 032524 tank? Yes, tie-down bracket part number 300110 is associated with the Moeller Marine 032524 for securing the tank during installation.

What is included with the 032524 fuel tank? The 032524 is the below-deck permanent fuel tank itself, port side withdraw configuration, 24 gallon capacity.

Will the 032524 fit any boat below-deck fuel compartment? The 032524 fits below-deck compartments sized for its 51.00 in. L x 8.75 in. W x 20.63 in. H footprint and requiring a port side fuel withdraw; measure your existing compartment and withdraw side before ordering.
