Moeller Marine Below Deck Permanent Fuel Tank, 12 to 25 Gallon

The Moeller Marine Below Deck Permanent Fuel Tank line delivers a rugged, ABYC-compliant fuel storage solution built for permanent installation beneath the deck of runabouts, center consoles, and small cruisers. Rotationally molded from ethanol- and biodiesel-resistant plastic, each tank in this line resists corrosion, pitting, and UV degradation while sealing fill neck and withdrawal/vent fittings directly into the shell to eliminate weak points. Available in 12 gallon and 25 gallon capacities, this line covers everything from compact bow storage to larger below-deck installations, with a machined aluminum withdrawal fitting featuring a 360 degree swivel poplock for flexible hose routing.

Specifications

• Brand: Moeller Marine
• Fuel capacity range: 12 to 25 gallons (45 to 95 liters)
• Material: Ethanol- and biodiesel-resistant plastic (rotationally molded)
• Withdrawal fitting: Machined aluminum 3/8 inch fitting with 360 degree swivel poplock
• Fittings: ABYC-compliant, seamless connections to rigid low-permeation hoses
• Sender: Swing Arm A002074
• UV Rating: 8
• Temperature Rating: 40F to 176F
• Diesel return: Not included

Sizes & Options

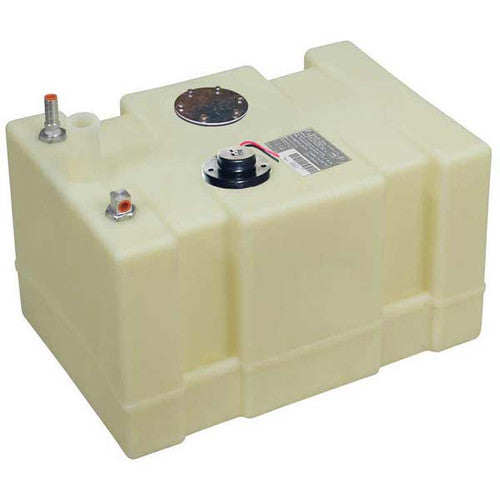

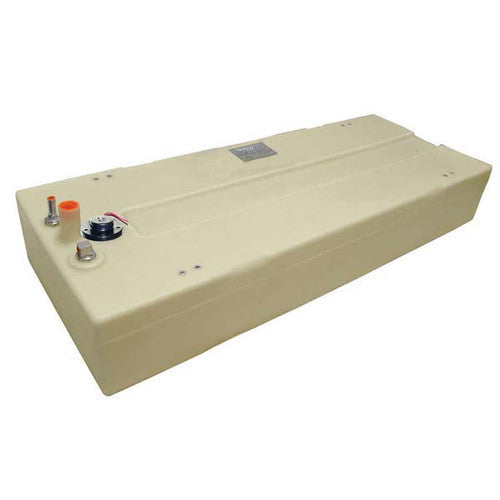

This tank line is sold by size, sized to your available below-deck footprint and desired range. The 12 gallon tank (20 in. L x 14 in. W x 14.5 in. H) suits compact installations and shorter-range boats, while the 25 gallon tank (47 in. L x 18.03 in. W x 10.25 in. H) fits longer, lower bilge spaces and extends cruising range. Measure your available mounting cavity, including clearance for the fill neck, vent, and withdrawal fitting, before ordering, and confirm bracket tie-down compatibility (035710 or 300110) for your chosen size.
