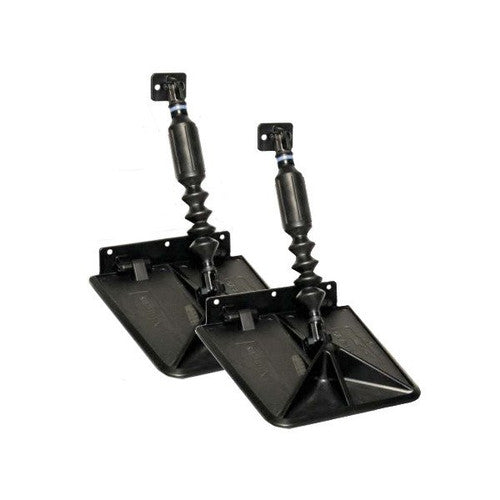

Nauticus SX9510 Self-Leveling Trim Tab Kits - 9.5" x 10" Plates for 30-240HP Boats, 12'-22'+

The Nauticus SX9510 Self-Leveling Trim Tab Kit gives outboard-powered boats automatic, hands-free trim correction without the wiring, hydraulic pumps, or dash switches that traditional electric or hydraulic trim tab systems require. Each kit uses a pair of 9.5 inch wide by 10 inch deep thermo-molded composite trim planes that self-adjust to changing sea conditions, boat speed, and weight distribution, leveling the ride, reducing bow rise, cutting down on porpoising, and improving fuel economy and visibility while underway. Because the planes react mechanically to water pressure instead of relying on electronics, there is nothing to fail underwater and no controller to maintain. The SX9510 line is built around a single 9.5 x 10 inch plate size but is offered in four capacity-rated kits so you can match the tabs to your boat's horsepower, length, and weight instead of buying an oversized or undersized system.

Specifications

• Brand: Nauticus
• Trim plane size: 9.5 inches wide x 10 inches deep
• Material: Thermo-molded composite with reinforced tracking ribs
• Color: Black
• Actuator mounting positions: 5
• Country of Origin: Made in the USA
• Kit contents: Pair of self-leveling trim planes with mounting hardware
• No electrical, hydraulic, or dash-switch installation required

Sizes & Options

All four SX9510 kits share the same 9.5 x 10 inch trim plane, so the choice between them comes down to your outboard's horsepower and your boat's length and weight. The SX9510-30 suits 30-40HP two-stroke boats from 13-15 feet; the SX9510-40 is rated for 40-50HP boats of 12-15 feet; the SX9510-60 steps up to 80-135HP boats from 17-19 feet and larger; and the SX9510-80 is built for 150-240HP boats from 18-22 feet. Selecting a kit rated for your boat's actual horsepower and weight, rather than length alone, ensures the self-leveling action responds correctly at cruising speed.
