How do I pick the right side for my trailer?

Face the rear of your trailer as if you were driving it: the light on your right is the passenger side (STL6RS) and the light on your left is the driver side (STL7RS).

Do I need to buy both lights?

If you are replacing both tail lights, order one STL6RS and one STL7RS to cover the passenger and driver sides. If only one side has failed, you can order that side alone.

Does either light include a license plate light?

Yes, the STL7RS driver side unit includes an integrated 3-LED license plate light. The STL6RS passenger side unit does not.

What color are the lenses?

Both lights use a red acrylic lens, standard for trailer tail light applications.

Are these lights waterproof for boat ramp use?

Yes, both use SMD LED technology in a sealed, stud-mount housing designed for waterproof, reliable performance when submerged at boat ramps.

How do these lights mount to the trailer?

Both are stud mount lights that install on a 2 inch mounting center pattern, matching common trailer tail light bases.

How are these lights wired?

Both are hardwired with a separate ground wire for a secure, corrosion-resistant electrical connection.

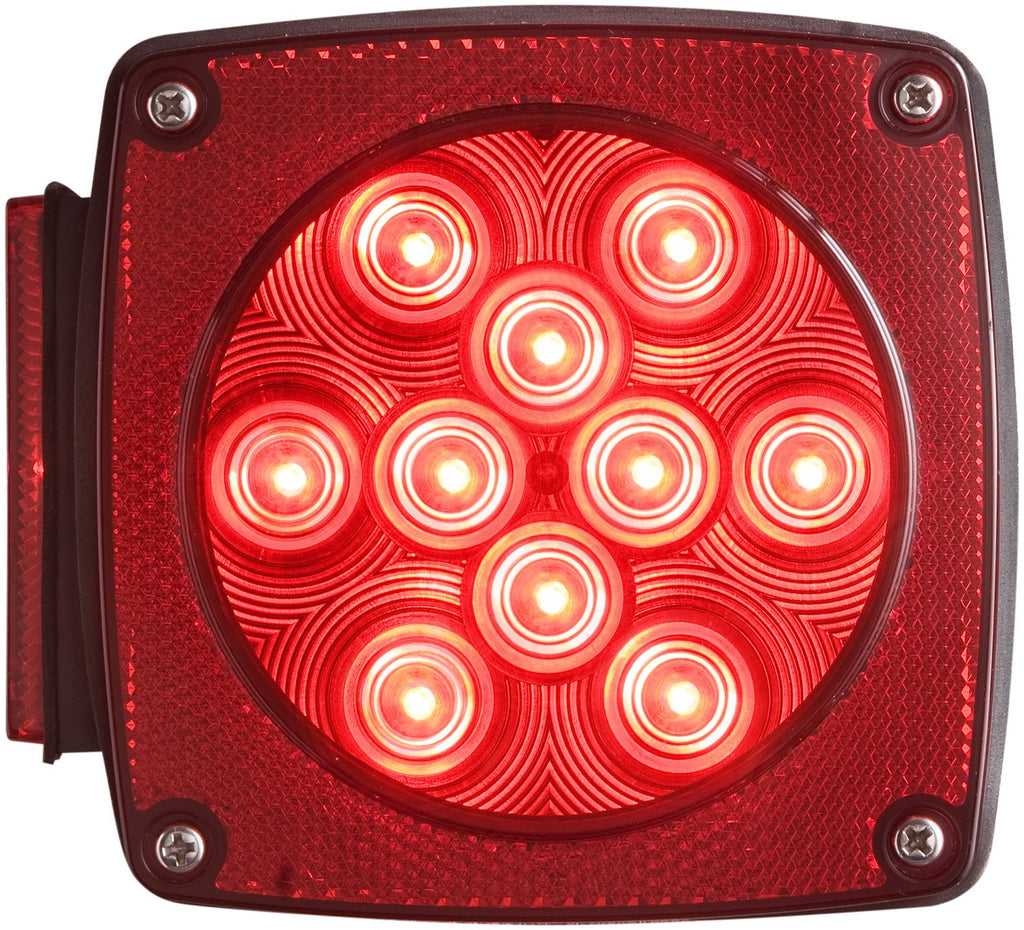

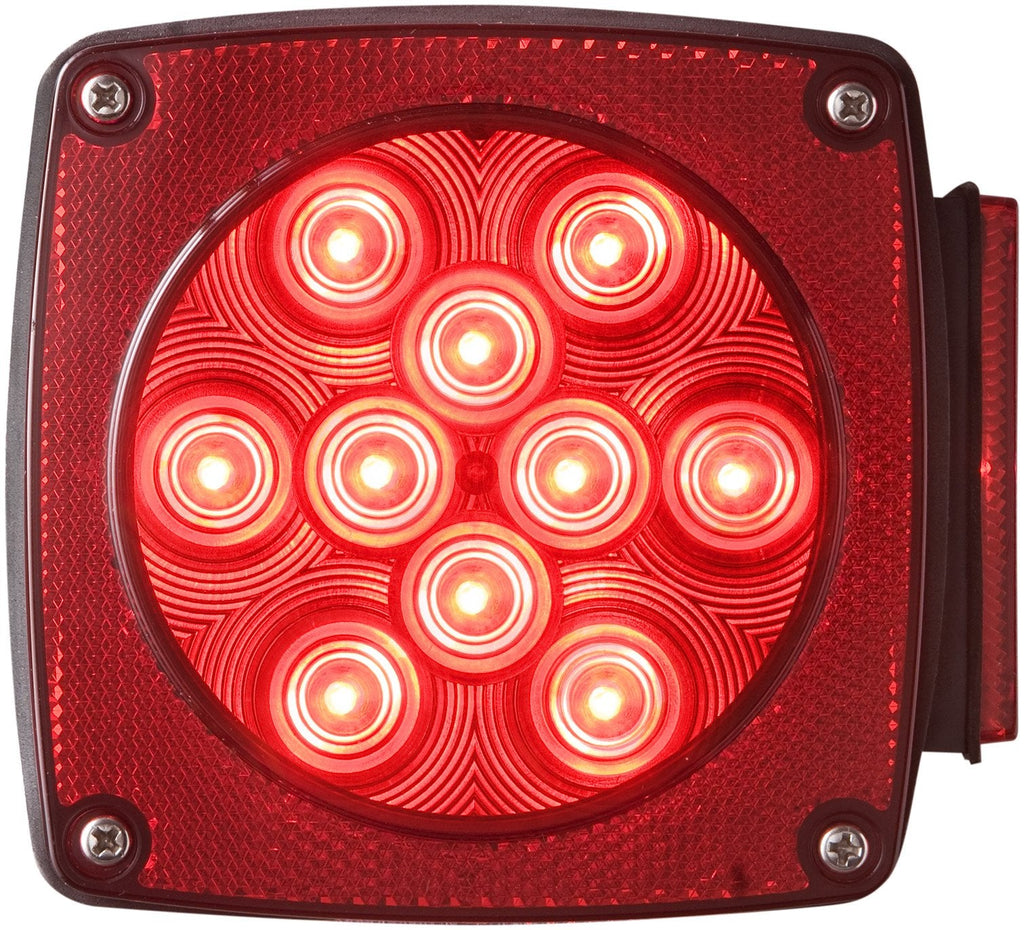

Optronics LED Trailer Tail Lights - Red Lens

Optronics LED Trailer Tail Lights - Passenger & Driver Side, Red Lens

$42.49

Upgrade your trailer's rear lighting with Optronics LED tail lights, engineered for the wet, vibration-heavy demands of boat and utility trailer use. Built with SMD LED technology and sealed housings, these stud-mount lights deliver bright, reliable stop, tail, and turn signal performance that stands up to submersion at boat ramps and long hauls on the highway. Available for both the passenger and driver side, including a combination unit with an integrated 3-LED license plate light, this line lets you outfit your trailer with matched, durable lighting front to back.

Specifications

Brand: Optronics
Light Source: LED (SMD technology)
Lens Color: Red
Lens Material: Acrylic
Housing Material: Plastic
Mounting Type: Stud mount, 2 inch centers
Wiring: Hardwired with separate ground wire
Waterproof: Yes
Warranty: Lifetime LED warranty

Sizes & Options

This line is sold as individual side-specific lights, not a pair, so choose the option that matches the position you need on your trailer. The STL6RS is a passenger side (right side) tail light. The STL7RS is a driver side (left side) combination tail light that also includes a built-in 3-LED license plate light, useful if your trailer's license plate light needs replacing at the same time. To fully outfit a trailer, order one of each to cover both sides.
