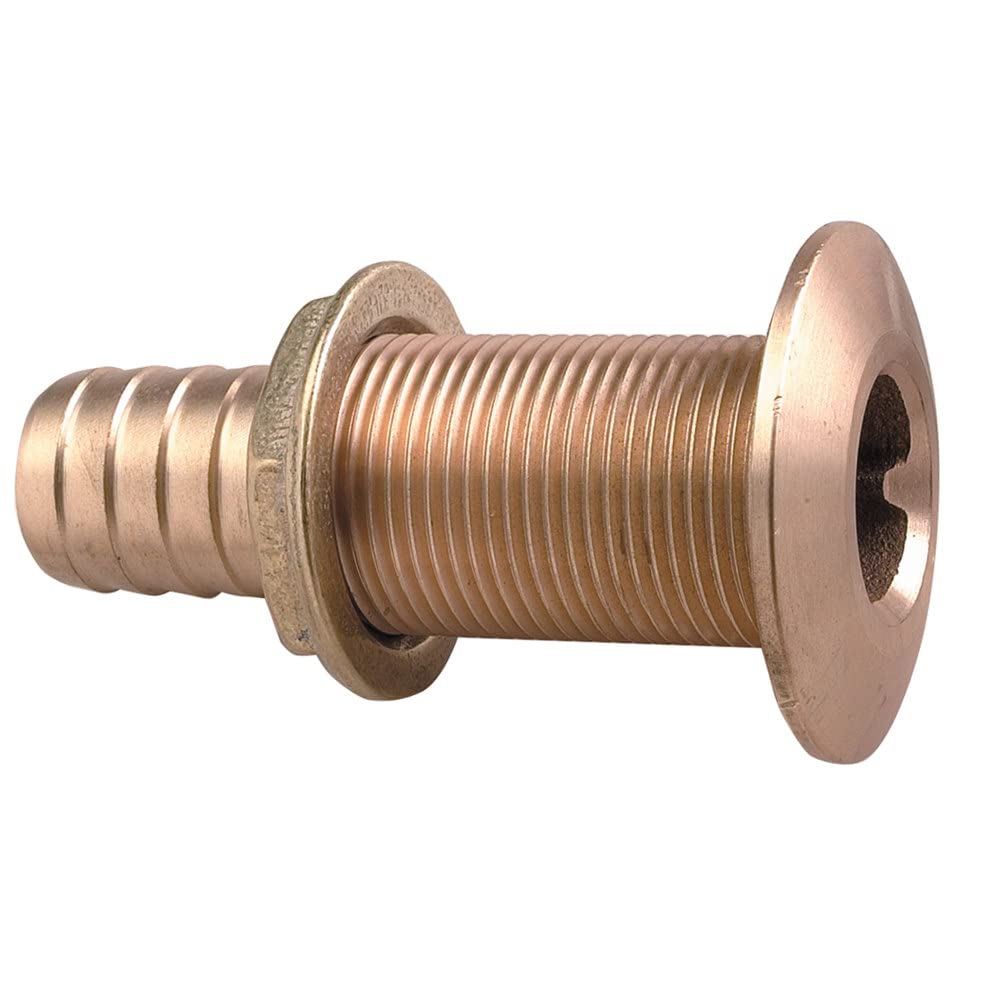

Perko 0350006DPP Plain Bronze Thru-Hull Connection for 1 Inch Hose

The Perko 0350006DPP is a plain cast bronze thru-hull connection designed for use with 1 inch hose. It provides a through-hull passage for plumbing and drain lines, allowing hose to be routed from inside the hull to the exterior of the boat. The flange is machined to fit flush against the hull surface and is grooved to retain bedding compound, helping create a secure, leak-resistant seal when properly bedded and through-bolted during installation. The neck is threaded to approximately 3/16 inch from the flange to accept a matching seacock or fitting.

This connection is built from solid cast bronze for corrosion resistance in a marine environment and is sized for 1 inch hose, with a mounting hole diameter of 1-5/16 inches and a maximum hull thickness rating of 1-3/4 inches. The flange outer diameter measures 2-1/4 inches. This thru-hull connection is intended for use with hose only and is not recommended for use below the waterline, per A.B.Y.C. Safety Standards for Small Craft, Section H-27.

Specifications

• Brand: Perko
• Manufacturer Part Number: 0350006DPP
• Hose Size: 1 inch
• Mounting Hole Diameter: 1-5/16 inches
• Maximum Hull Thickness: 1-3/4 inches
• Flange Outer Diameter: 2-1/4 inches
• Material: Cast Bronze
• Color/Finish: Bronze
• Weight: 0.8 pounds
• Item Dimensions: 4 x 3 x 3 inches
• Number of Pieces: 1

Frequently Asked Questions

What size hose does the Perko 0350006DPP fit? The Perko 0350006DPP is sized for 1 inch hose.

What is the mounting hole diameter for this thru-hull fitting? The mounting hole diameter for the Perko 0350006DPP is 1-5/16 inches.

What is the maximum hull thickness this fitting will work with? 1-3/4 inches is the maximum hull thickness rating for the Perko 0350006DPP thru-hull connection.

What material is the Perko 0350006DPP made from? This thru-hull connection is made from plain cast bronze, chosen for its corrosion resistance in marine environments.

Can the Perko 0350006DPP be installed below the waterline? No, thru-hull connections for use with hose, including the Perko 0350006DPP, are not recommended for use below the waterline, per A.B.Y.C. Safety Standards for Small Craft, Section H-27.

What is the flange outer diameter of this fitting? The flange outer diameter of the Perko 0350006DPP is 2-1/4 inches.

How does the flange seal against the hull? The flange on the Perko 0350006DPP is machined to fit the hull and grooved to retain bedding compound, which helps create a secure seal when the fitting is properly bedded and through-bolted.

How far is the neck threaded on this fitting? The neck of the Perko 0350006DPP is threaded to approximately 3/16 inch from the flange.

How much does the Perko 0350006DPP weigh? This fitting weighs 0.8 pounds.

Does the Perko 0350006DPP come as a single piece? Yes, the Perko 0350006DPP is sold as a single piece (1 count).

What are the overall dimensions of this thru-hull connection? The Perko 0350006DPP measures approximately 4 x 3 x 3 inches.
