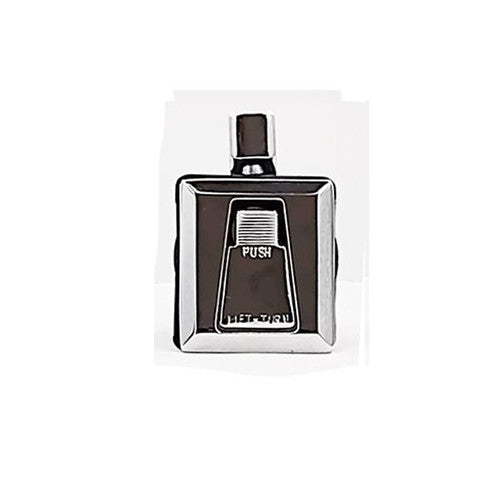

Perko 0922DP0CHR Chrome-Plated Non-Locking Flush Latch, 1-5/8 Inch Hole

The Perko 0922DP0CHR is a chrome-plated, non-locking flush latch built for cabin doors, hatches, and compartment panels where a low-profile, snag-free closure is needed. Constructed from zinc alloy with a chrome-plated, polished finish, it resists the corrosion and wear typical of marine environments while giving a clean, finished appearance on any door surface. As a non-locking latch, it does not come with keys, making it a straightforward choice where security locking is not required and a simple, reliable catch is enough.

Installation is designed to be simple: the latch mounts into a 1-5/8 inch diameter hole and is sized for doors with a thickness of 1/2 inch to 3/4 inch. The face plate measures 2-1/4 inches by 2 inches, sitting flush against the door face once installed. Perko also offers this same latch style as a locking version, part number 0921DP0CHR, for applications where key-locking is required on the same 1-5/8 inch hole pattern.

This latch is backed by Perko's 5-year limited warranty (reduced to 1 year, or the boat builder's general accessory warranty if longer, when installed as original equipment by a boat builder or manufacturer). It ships as a single unit ready for installation.

Specifications

• Brand: Perko
• Manufacturer Part Number: 0922DP0CHR
• Product Type: Non-Locking Flush Latch
• Material: Zinc Alloy
• Finish: Chrome Plated, Polished
• Color: Silver
• Mounting Hole Diameter: 1-5/8 inches
• Door Thickness Range: 1/2 inch to 3/4 inch
• Face Plate Dimensions: 2-1/4 inches x 2 inches
• Item Dimensions: 5.63 x 2.99 x 1.77 inches
• Weight: 0.4 pounds
• Lock Type: Non-Locking (No Keys Included)
• UPC: 085226661426
• Warranty: 5-Year Limited Warranty

Frequently Asked Questions

What size hole does the Perko 0922DP0CHR need? It installs into a 1-5/8 inch diameter hole, so the mounting cutout should be drilled to that size before installation.

Does this latch lock? No, the 0922DP0CHR is a non-locking flush latch and does not come with any keys. Perko's locking version of this latch is part number 0921DP0CHR.

What door thickness is this latch designed for? The Perko 0922DP0CHR is designed for doors between 1/2 inch and 3/4 inch thick.

What are the face plate dimensions? The visible face plate measures 2-1/4 inches by 2 inches once the latch is installed flush against the door.

What material is the latch made from? It is made of zinc alloy with a chrome-plated, polished finish for a durable, corrosion-resistant appearance.

How much does the 0922DP0CHR weigh? This Perko flush latch weighs 0.4 pounds.

Is a key included with this latch? No keys are included, since the 0922DP0CHR is the non-locking version of Perko's flush latch.

Is there a locking version of this latch? Yes, Perko makes a locking counterpart, part number 0921DP0CHR, for use in the same 1-5/8 inch hole where a key lock is needed.

What is included in the box? The package includes one Perko 0922DP0CHR chrome-plated non-locking flush latch; no keys are included since it is the non-locking model.

What color and finish does this latch come in? The 0922DP0CHR has a chrome-plated, polished silver finish.

What warranty covers this latch? The Perko 0922DP0CHR is covered by a 5-year limited warranty, reduced to 1 year (or the boat builder's general accessory warranty, whichever is longer) if installed as original equipment by a boat builder or manufacturer.

What is the overall item size of this latch? The Perko 0922DP0CHR measures 5.63 x 2.99 x 1.77 inches as packaged.
