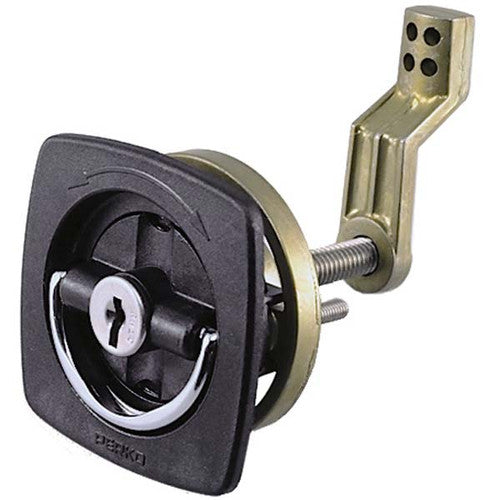

Perko 0931DP1BLK Flush-Mount Locking Latch, Black, Offset Cam Bar 3/8 to 3 Inches

The Perko 0931DP1BLK is a flush-mount locking latch built for cabinet doors, hatches, and access panels aboard a boat. The lock sits flush with the surface once installed, using an offset cam bar that adjusts from 3/8 inch to 3 inches to reach the strike, along with a flexible polymer strike that absorbs play and lets the latch seat smoothly even if the door has minor movement or misalignment. The body is molded in black plastic with a chrome plated zinc alloy lock mechanism, and the stem and lock nut are stainless steel for corrosion resistance in a marine environment.

Installation is straightforward: the lock mounts into a 2 inch diameter hole and uses a 2-1/2 inch by 2-1/2 inch face plate to cover the cutout, making it a practical retrofit for existing hardware of the same footprint. It is designed for doors and panels from 1/4 inch to 1-1/8 inch thick. Each lock ships with 2 keys so a spare is on hand from the start.

This is the black, keyed-lock version with the offset cam bar and flexible polymer strike. Perko also offers this same lock in white, in a version with an adjustable cam bar, and in a version with a straight cam bar for a shorter reach, as well as a non-locking latch counterpart, so the door hardware on a boat can be matched by finish, throw style, and whether a key is needed.

Specifications

• Brand: Perko
• Manufacturer Part Number: 0931DP1BLK
• Type: Lock (keyed, 2 keys included)
• Color: Black
• Cam Bar Adjustment: 3/8 inch to 3 inches
• Cam Bar Style: Offset cam bar with flexible polymer strike
• Door Thickness: 1/4 inch to 1-1/8 inch
• Face Plate Size: 2-1/2 inches x 2-1/2 inches
• Mounting Hole Diameter: 2 inches
• Material: Black plastic and chrome plated zinc alloy
• Stem and Lock Nut Material: Stainless steel
• Keys Included: 2
• Item Dimensions: 7.75 x 5 x 3.75 inches
• Weight: 0.54375 pounds
• UPC: 085226018046

Frequently Asked Questions

What door thickness fits the Perko 0931DP1BLK flush lock? The 0931DP1BLK is designed for doors and panels from 1/4 inch to 1-1/8 inch thick.

How many keys come with this lock? 2 keys are included with the Perko 0931DP1BLK flush-mount locking latch.

What size hole do I need to drill to install it? The 0931DP1BLK installs into a 2 inch diameter hole.

What is the face plate size on the 0931DP1BLK? The face plate measures 2-1/2 inches by 2-1/2 inches, which covers the mounting cutout.

How far does the cam bar reach on this lock? The offset cam bar on the Perko 0931DP1BLK adjusts from 3/8 inch to 3 inches to engage the strike.

What is the 0931DP1BLK made of? The lock body is black plastic with a chrome plated zinc alloy mechanism, and the stem and lock nut are stainless steel for corrosion resistance.

Is this lock available in a different color? Yes, the same lock is offered in white as the Perko 0931DP1WHT; the 0931DP1BLK is the black version.

What is the difference between the 0931DP1BLK and the 0931DP2BLK? The 0931DP1BLK uses an offset cam bar with a flexible polymer strike, while the 0931DP2BLK uses an offset adjustable cam bar; both share the same 3/8 inch to 3 inch reach.

Is there a non-locking version of this latch? Yes, Perko makes a non-locking latch counterpart (the 0932 series) to this 0931 keyed lock for doors that do not need a key.

What does the flexible polymer strike do? It lets the cam bar on the 0931DP1BLK seat smoothly against the strike, absorbing minor play so the door closes flush even with slight misalignment.

How much does the 0931DP1BLK weigh? The Perko 0931DP1BLK flush-mount locking latch weighs 0.54375 pounds.

Is the 0931DP1BLK a genuine Perko part? Yes, the 0931DP1BLK is a genuine Perko flush lock, not a generic substitute.
