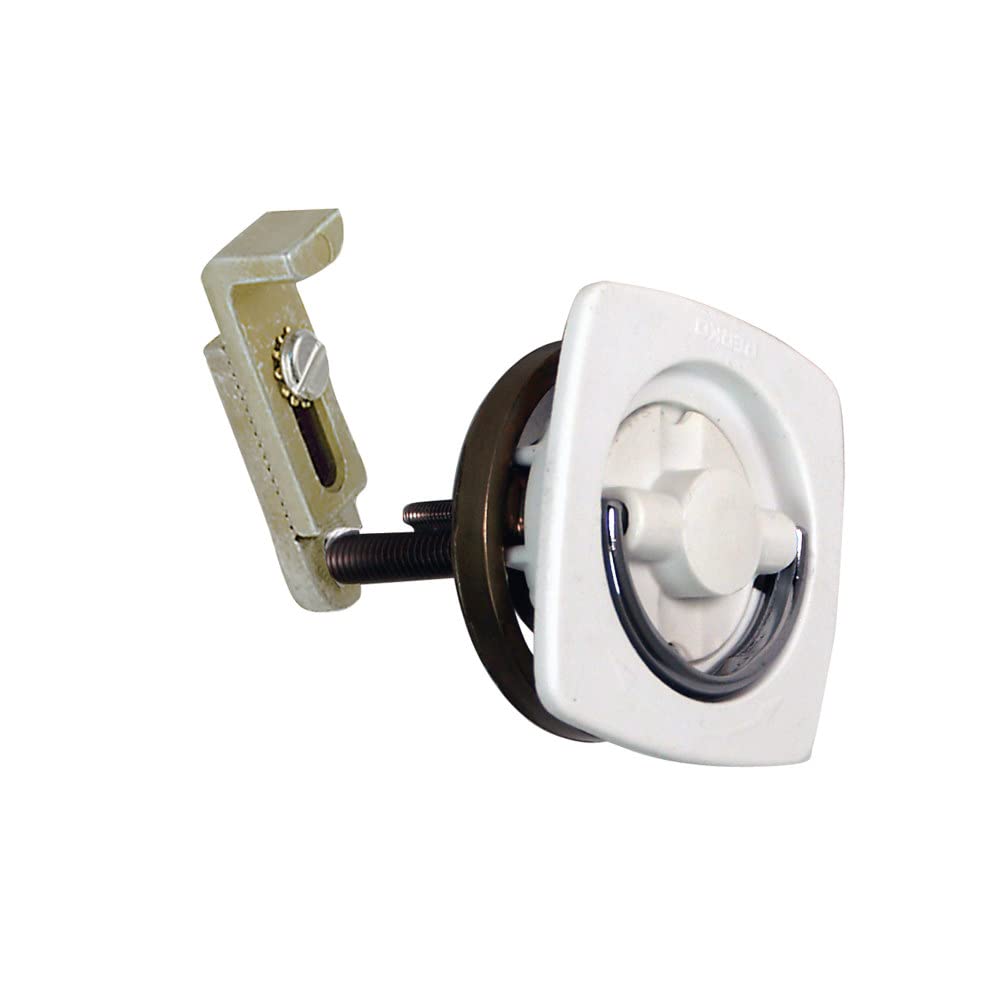

Perko 0932DP1WHT Flush-Mount Non-Locking Latch with Offset Cam Bar, White

The Perko 0932DP1WHT is a flush-mount, non-locking latch built for doors, hatches, and cabinet panels aboard a boat. It installs into a 2 inch diameter mounting hole and is designed to fit door or panel thickness from 1/4 inch to 1-1/8 inch. The latch uses an offset adjustable cam bar that accepts a range of 3/8 inch to 3 inches, letting it be set to match the specific door and frame gap on the installation. A flexible polymer strike is used with the cam bar to hold the door closed and reduce rattle.

Construction is a white polymer housing paired with a chrome-plated zinc alloy mechanism and a stainless steel stem, with a lock nut securing the assembly through the panel. The latch is non-locking, meaning it releases without a key, and detents in the mechanism let the user feel and see whether it is in the open or closed position. The face plate measures 2-1/2 inches by 2-1/2 inches. This is the white finish of the 0932DP1 non-locking flush latch; a black finish and a locking version are offered separately by Perko under different part numbers.

Specifications

• Brand: Perko
• Manufacturer Part Number: 0932DP1WHT
• Type: Latch, Non-Locking
• Color: White
• Cam Bar Adjustment Range: 3/8 inch to 3 inches, offset adjustable
• Door/Panel Thickness Fit: 1/4 inch to 1-1/8 inch
• Face Plate Dimensions: 2-1/2 inches x 2-1/2 inches
• Mounting Hole Diameter: 2 inches
• Strike Type: Flexible polymer strike
• Material: White polymer, chrome-plated zinc alloy, stainless steel stem
• Weight: 0.5 pounds
• UPC: 085226033995

Frequently Asked Questions

What size mounting hole does the Perko 0932DP1WHT require? It installs in a 2 inch diameter hole, matching the standard bore for this Perko flush latch.

What door or panel thickness does this latch fit? The 0932DP1WHT is built for door or panel thickness from 1/4 inch to 1-1/8 inch.

Is the 0932DP1WHT a locking latch? No, it is a non-locking flush latch, opening and closing without a key.

What is this latch made of? It has a white polymer housing combined with a chrome-plated zinc alloy mechanism and a stainless steel stem, secured with a lock nut.

What are the face plate dimensions of the 0932DP1WHT? The face plate measures 2-1/2 inches by 2-1/2 inches.

Does the latch include a strike plate? Yes, a flexible polymer strike is used with the offset cam bar to hold the door closed.

What is the adjustment range of the cam bar? The offset cam bar on the 0932DP1WHT adjusts across a range of 3/8 inch to 3 inches to match different door and frame gaps.

What color options are available for this latch? This part number, 0932DP1WHT, is the white finish; Perko also offers this same latch in a black finish under a different part number.

How much does the 0932DP1WHT weigh? It weighs 0.5 pounds.

How can I tell if the latch is open or closed? The 0932DP1WHT has detents built into the mechanism that indicate whether the latch is in the open or closed position.

Is a locking version of this latch available? Yes, Perko offers a locking flush latch of the same face plate size and cam bar range as a separate part with 2 keys, distinct from the non-locking 0932DP1WHT.

Does the 0932DP1WHT come assembled? Yes, the latch, cam bar, stainless steel stem, lock nut, and flexible polymer strike are included as a single assembly ready to install.
