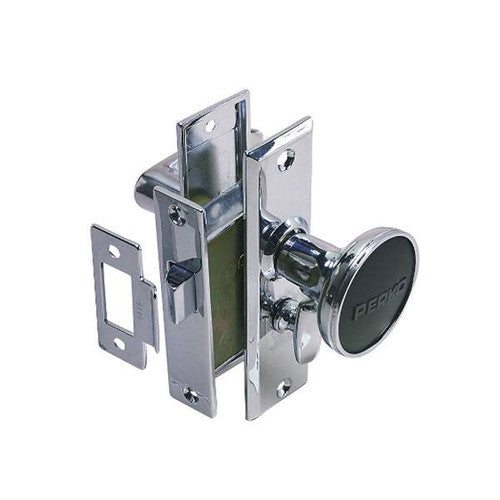

Perko Tubular Latch Set with Turn Button Lock, Chrome Plated Zinc Alloy, 0960DP0CHR

The Perko Tubular Latch Set (0960DP0CHR) is a chrome plated, zinc alloy latch built for cabin doors, lockers, and compartment doors aboard boats and other marine applications. The latch uses a turn button lock mechanism for quick, tool-free operation from either side of the door, and the beveled latch tongue can be reversed during installation, allowing the same latch to be fitted to a left-hand or right-hand swinging door without needing a separate mirrored part.

The set is finished in chrome over a zinc alloy body for corrosion resistance and a bright, durable appearance that matches other Perko chrome hardware. The tubular design uses a 3/4 inch O.D. Tube with a 4-3/8 inch by 1-1/4 inch escutcheon plate, and it is installed with #6 screws. This latch set is sold as a complete retail package, ready to install on interior cabin, locker, or storage compartment doors where a simple, reliable turn button latch is needed.

Specifications

• Brand: Perko
• Manufacturer Part Number: 0960DP0CHR
• Material: Zinc Alloy
• Finish: Chrome Plated
• Lock Type: Turn Button Lock
• O.D. Tube Diameter: 3/4 inch
• Escutcheon Dimensions: 4-3/8 inch x 1-1/4 inch
• Screw Size: #6
• Bevel: Reversible during installation
• Weight: 1.1 pounds
• UPC: 085226035548

Frequently Asked Questions

What is the Perko 0960DP0CHR latch set made of? The Perko 0960DP0CHR Tubular Latch Set is made of zinc alloy with a chrome plated finish for corrosion resistance and a bright appearance.

Does this latch use a key or a turn button? The Perko 0960DP0CHR uses a turn button lock, not a keyed cylinder lock, for quick tool-free operation.

Can the 0960DP0CHR be installed on either a left-hand or right-hand opening door? Yes. The bevel on the Perko 0960DP0CHR latch tongue can be reversed during installation, so the same latch works on doors that swing either direction.

What size is the escutcheon plate on this latch set? The escutcheon plate on the Perko 0960DP0CHR measures 4-3/8 inch by 1-1/4 inch.

What diameter is the latch tube? The tubular latch body on the 0960DP0CHR has a 3/4 inch outside diameter.

What screws are needed to mount the 0960DP0CHR latch set? Perko specifies #6 screws for mounting the 0960DP0CHR Tubular Latch Set.

How much does the 0960DP0CHR latch set weigh? The Perko 0960DP0CHR Tubular Latch Set weighs 1.1 pounds.

Is this a genuine Perko part? Yes, part number 0960DP0CHR is a genuine Perko Tubular Latch Set, identified by Perko's own catalog part number and UPC 085226035548.

What type of doors is the 0960DP0CHR latch set designed for? This turn button tubular latch set is designed for cabin, locker, and storage compartment doors, and similar applications requiring a simple slide-and-turn latch.

Is the 0960DP0CHR sold as a complete kit? Yes, the Perko 0960DP0CHR is a retail packaged latch set that includes the tubular latch body and matching escutcheon.
