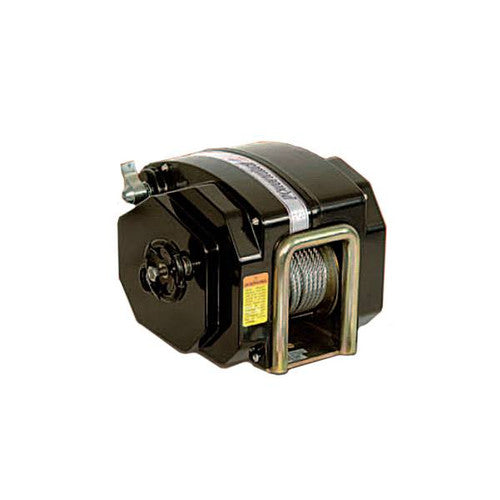

Powerwinch 912 Marine Trailer Winch - 11,500 lb Capacity, 12V, 40 ft Cable

The Powerwinch 912 Marine Trailer Winch is an electric trailer winch built to take the physical strain out of loading a boat onto its trailer. Instead of manually cranking a boat into place against gravity, the 912 uses smooth power-in/freewheel-out action so the operator can winch the boat in with the press of a button and then freewheel the cable back out by hand for the next launch. It is rated for boats up to 11,500 pounds and delivers a vertical lift capacity of 4,000 pounds on a single line, retrieving cable at a line speed of 8 feet per minute through a 450:1 gear ratio. For heavier pulls, a pulley or block can be rigged at the bow eye to double the line capacity to 7,500 pounds, which halves retrieval speed but roughly doubles pulling strength; the winch is not intended to be used as a hoist. The unit runs on a 12-volt DC power source and is protected by a 60 amp circuit breaker. It comes fitted with a 40 foot cable measuring 7/32 inch in diameter, and the winch body measures approximately 10 inches deep, 10 inches wide, and 8 inches high. The Powerwinch 912 is backed by a one year limited warranty.

Specifications

• Brand: Powerwinch
• Manufacturer Part Number: P77912
• Max Boat Weight: 11,500 pounds
• Line Speed: 8 feet per minute
• Vertical Lift Capacity: 4,000 pounds (single line)
• Double Line Capacity: 7,500 pounds
• Gear Ratio: 450:1
• Power Source: 12V DC
• Circuit Breaker: 60 amp
• Cable Length: 40 feet
• Cable Diameter: 7/32 inch
• Depth: 10 inches
• Width: 10 inches
• Height: 8 inches
• Weight: 34 pounds
• UPC: 810123840090
• Warranty: 1 year limited

Frequently Asked Questions

How much boat weight can the Powerwinch 912 handle? The Powerwinch 912 is rated for boats up to 11,500 pounds, with a vertical lift capacity of 4,000 pounds on a single line.

Does the 912 winch reel in and out automatically? Yes, the Powerwinch 912 uses power-in/freewheel-out action, so it winches the boat in electrically at the press of a button, while the cable freewheels back out by hand for the next launch.

What cable comes with the Powerwinch 912? It ships with a 40 foot cable measuring 7/32 inch in diameter.

Can I increase the pulling power of the 912 winch? Yes, rigging a pulley or block at the bow eye doubles the line capacity of the Powerwinch 912 to 7,500 pounds, though this halves retrieval speed.

What voltage and amperage protection does the Powerwinch 912 use? The winch runs on 12V DC power and is protected by a 60 amp circuit breaker.

How fast does the Powerwinch 912 retrieve cable? Line speed is 8 feet per minute on a single line, through a 450:1 gear ratio.

What are the dimensions of the Powerwinch 912? The Powerwinch 912 winch body measures approximately 10 inches deep, 10 inches wide, and 8 inches high, and weighs 34 pounds.

Is the Powerwinch 912 safe to use as a hoist? No, the Powerwinch 912 is designed as a trailer winch for loading boats and is not intended to be used or considered as a hoist.

What warranty comes with the Powerwinch 912? The Powerwinch 912 Marine Trailer Winch carries a one year limited warranty.

Is the pulley block included with the Powerwinch 912? Yes, a pulley block for double-line applications is included with the Powerwinch 912 to help achieve the 7,500 pound double line capacity.
