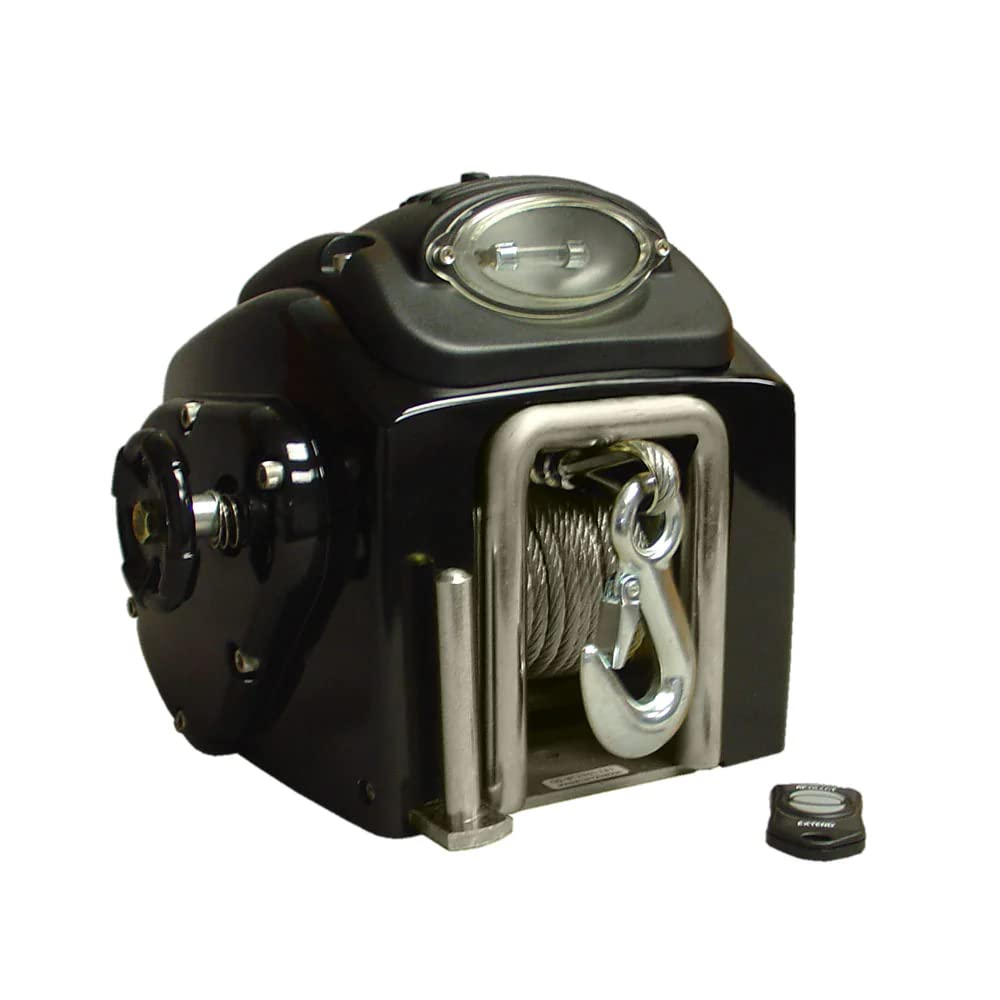

Powerwinch RC 30 Wireless Remote Trailer Winch, 11,500 lb Capacity, P55950

The Powerwinch RC 30 is a wireless remote-control trailer winch built to load a boat onto its trailer with the press of a button instead of hand-cranking against gravity. It is rated to pull boats up to 11,500 pounds and offers a vertical lift capacity of 4,000 pounds on a single line. An included pulley block lets the cable be doubled at the bow eye, halving retrieval speed but increasing pulling power to 7,500 pounds for heavier loads.

Construction features a corrosion-resistant, zinc-plated frame and an aircraft-quality cable, paired with a level wind system that keeps the cable spooling evenly and prevents snarls. The housing is UV-resistant ABS plastic protecting a smooth-running, heat-treated gear system designed for long-term wear resistance. The RC 30 operates on remote power-in, freewheel-out operation from a 12 volt power source, protected by a 60 amp circuit breaker, and includes a 40-foot cable measuring 7/32 inches in diameter. A built-in light in the winch casing helps secure and check on the boat at night, and an emergency hand crank is stored in the winch cover for backup operation if the remote or power is unavailable.

The winch measures 11.5 by 9 by 9.5 inches (W x H x D) and is backed by a 1-year warranty. It is identified by manufacturer part number P55950.

Specifications

• Brand: Powerwinch
• Manufacturer Part Number: P55950
• Model Name: P55950-S
• Product Type: Electric Trailer Winch
• Max Boat Weight: 11,500 pounds
• Vertical Lift Capacity (single line): 4,000 pounds
• Double Line Capacity: 7,500 pounds
• Line Speed: 8 feet per minute
• Power Source: 12 volts
• Circuit Breaker: 60 amp
• Cable Length: 40 feet
• Cable Diameter: 7/32 inches
• Dimensions (W x H x D): 11.5 by 9 by 9.5 inches
• Remote Control: Yes, wireless
• Light: Built-in
• Frame Material: Zinc-plated steel
• Housing Material: UV-resistant ABS plastic
• Cable Type: Aircraft-quality cable
• Weight: 34.6 pounds
• Warranty: 1 year
• UPC: 810123840007

Frequently Asked Questions

How much weight can the Powerwinch RC 30 pull? The Powerwinch RC 30 (part number P55950) is rated to pull boats up to 11,500 pounds and offers a vertical lift capacity of 4,000 pounds on a single line.

Can I get more pulling power out of the RC 30 for a heavier boat? Yes, the RC 30 winch includes a pulley block that doubles the cable at the bow eye, increasing pulling power to 7,500 pounds while halving retrieval speed.

Is the RC 30 winch wireless? Yes, part number P55950 operates via a wireless remote control with power-in retrieval and freewheel-out operation for paying out cable.

What is the cable length and diameter on this winch? The Powerwinch RC 30 comes with a 40-foot cable measuring 7/32 inches in diameter, made of aircraft-quality cable material.

What power source does the RC 30 require? This winch runs on 12 volts and is protected by a 60 amp circuit breaker.

Does the RC 30 have a backup in case the remote fails? Yes, an emergency hand crank is stored in the winch cover of the P55950, allowing manual operation if remote or power access is unavailable.

Is there a light on the winch for nighttime use? The Powerwinch RC 30 has a built-in light enclosed in the winch casing to help secure and check on the boat at night.

What are the physical dimensions and weight of the RC 30? The winch measures 11.5 by 9 by 9.5 inches (width by height by depth) and weighs 34.6 pounds.

What is the frame and housing made of? Part number P55950 has a corrosion-resistant, zinc-plated steel frame and a UV-resistant ABS plastic housing protecting the internal gear system.

How does the level wind system help with this winch? The RC 30's level wind system spools the cable evenly onto the drum, which helps prevent cable snarls during retrieval.

What warranty comes with the Powerwinch RC 30? The P55950 trailer winch is backed by a 1-year warranty.

Is the internal gear system durable for repeated use? The RC 30 uses a smooth-running, heat-treated gear system designed to hold up against long-term wear and tear from repeated loading cycles.
