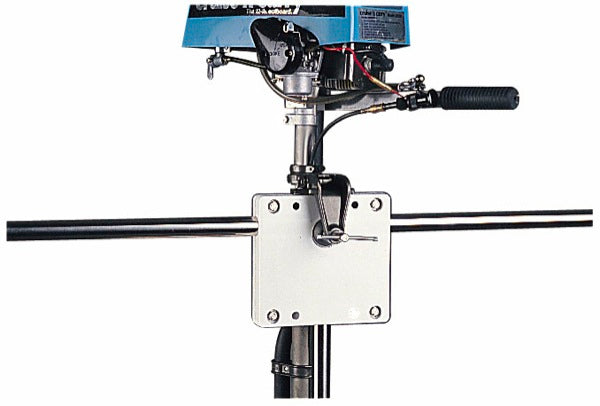

Sea-Dog Rail Mount Motor Bracket 327150-1, White, Fits 7/8 to 1 Inch Rails, Up to 8 HP 2-Cycle Outboards

The Sea-Dog Rail Mount Motor Bracket (327150-1) holds a small, 2-cycle outboard motor up to 8 HP upright on the stern rail, keeping the boat deck clear and the motor secure for transit or storage. It is molded from UV stabilized polypropylene, so it resists the sun, salt spray, and impact that break down painted metal or wood mounts over time. The bracket fits both 7/8 inch and 1 inch diameter rails, as well as rails that use 90 degree tee fittings, which is a wider fit range than most other polypropylene and wood motor brackets on the market, since those typically only fit 1 inch welded rails. It is built as a two-piece unit with extra holes so a chain can be added to further secure the motor, an added margin of safety recommended for any rail-mounted outboard. Beyond mounting a small outboard, the bracket doubles as a flat, rail-mounted platform for other stern-rail accessories such as barbecues, downrigger brackets, or fish cleaning tables. All necessary fasteners are included, so no separate hardware purchase is needed for installation. This listing is for the white finish (327150-1); the same bracket is also offered in black under a separate part number for boaters who want to match darker rail or hull trim.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 327150-1
• Color: White
• Material: UV stabilized, injection molded polypropylene
• Maximum Horsepower: 8 HP (2-Cycle Only)
• Fits Rail Diameter: 7/8 inch to 1 inch, including rails with 90 degree tee fittings
• Dimension A: 1-9/16 inches
• Dimension B: 6-11/16 inches
• Dimension C: 6-11/16 inches
• Weight: 1.004 pounds
• Standard Pack: 5 each
• UPC: 035514327237
• Included Hardware: All necessary mounting fasteners included

Replaces (OEM)

• ISO-79988

Frequently Asked Questions

What rail sizes does the Sea-Dog 327150-1 motor bracket fit? The Sea-Dog Rail Mount Motor Bracket 327150-1 fits both 7/8 inch and 1 inch diameter rails, as well as rails that use 90 degree tee fittings, which covers a wider range of stern rails than most polypropylene or wood brackets that only fit 1 inch welded rails.

What is the maximum outboard horsepower for this bracket? This bracket is rated for 2-cycle outboards up to 8 HP only; it is not rated for larger or 4-stroke motors.

What is the 327150-1 motor bracket made of? It is made of UV stabilized, injection molded polypropylene, a material chosen to resist sun and saltwater exposure on an exterior stern-rail mount.

Does the bracket come with mounting hardware? Yes, the Sea-Dog 327150-1 includes all necessary fasteners for installation, so no additional hardware needs to be purchased separately.

Can the motor be secured with a chain on this bracket? Yes, the two-piece 327150-1 bracket has extra holes built in specifically to allow a chain to be added to further secure the outboard motor.

Is this bracket only for mounting an outboard motor? No, beyond holding a small outboard upright, the 327150-1 rail bracket can also serve as a mounting platform for other stern-rail accessories such as a barbecue, downrigger bracket, or fish cleaning table.

What color is part number 327150-1? Part number 327150-1 is the white version of Sea-Dog's Rail Mount Motor Bracket; the same bracket is also available in black under a different part number.

How much does the Sea-Dog rail mount motor bracket weigh? The 327150-1 bracket weighs 1.004 pounds.

What are the dimensions of the 327150-1 bracket? The bracket measures 1-9/16 inches by 6-11/16 inches by 6-11/16 inches.

Is there an OEM equivalent number for this bracket? Yes, the Sea-Dog 327150-1 motor bracket has a listed OEM equivalent part number of ISO-79988.

Will this bracket fit a 4-stroke outboard? The 327150-1 bracket is rated for 2-cycle outboards up to 8 HP only, so it is not intended for 4-stroke motors.
