Which flow rate should I choose?

Match the cartridge to your existing pump's rated flow: choose 500 GPH for standard Tournament Series livewells, 800 GPH for higher-capacity setups, or 1100 GPH for the largest livewell volumes and longer plumbing runs.

Will these cartridges fit Pro-Series aerator pumps?

No. All three cartridges in this line are built exclusively for Tournament Series aerator pumps and are not compatible with Pro-Series pump housings.

What voltage do these motor cartridges run on?

All three cartridges operate on a 12 volt marine electrical system.

Do I need to rewire my pump to install one of these?

No. Each cartridge uses a snap-in design that drops into the existing Tournament Series pump housing without rewiring.

What pump models does the 1100 GPH cartridge fit?

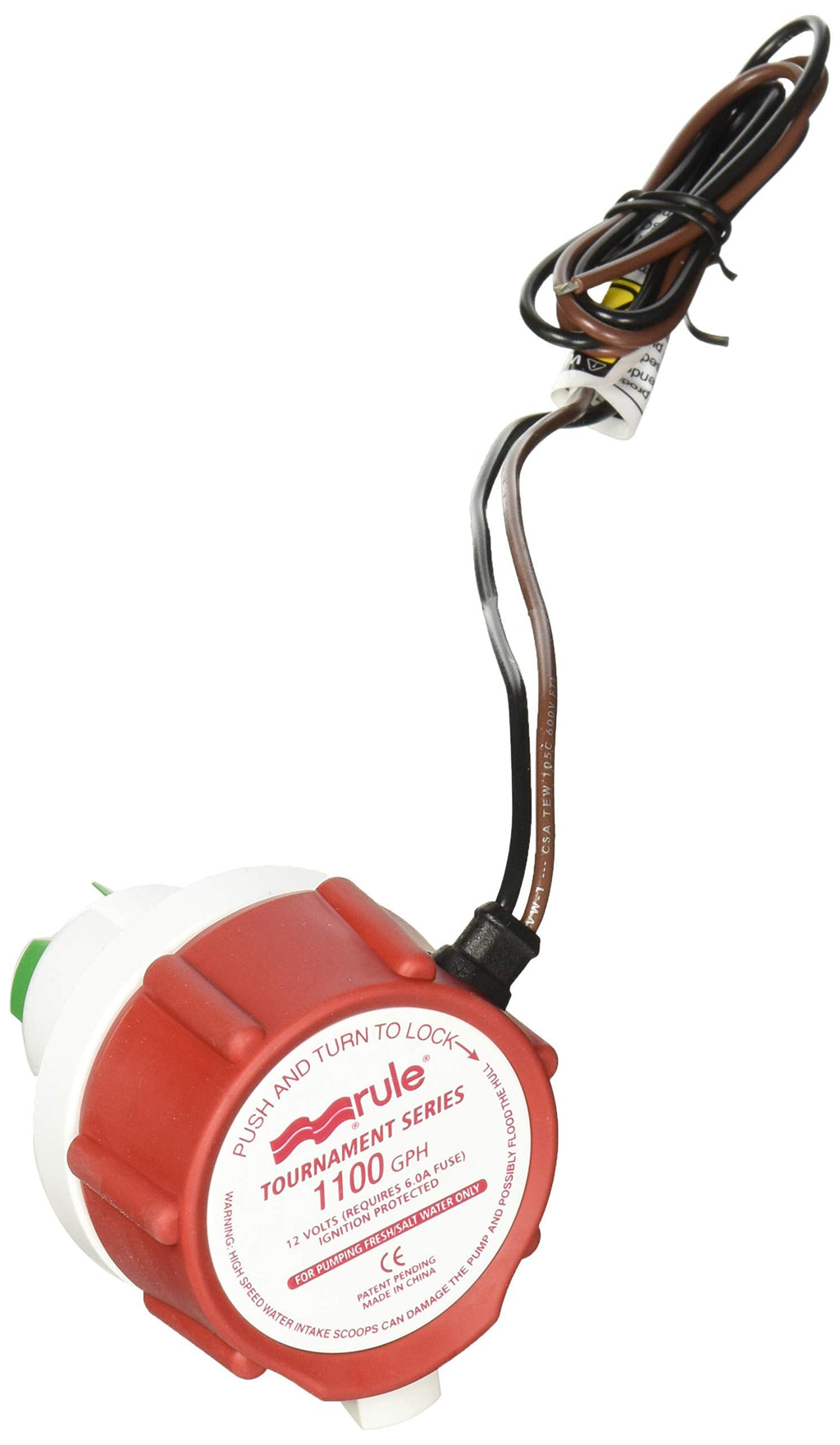

The 1100 GPH cartridge (47DR) is designed for Tournament Series pumps including the 405C, 405STC, and 405FC models.

How long is the warranty on these cartridges?

Each motor cartridge in this line carries a 3-year manufacturer warranty.

What material are the cartridges made from?

All three cartridges use a synthetic, corrosion-resistant housing suited to marine environments.

Can I upgrade my flow rate by installing a higher-GPH cartridge?

Only if your pump housing and plumbing are rated for the higher flow - installing a higher-GPH cartridge in an undersized housing can strain the system, so confirm compatibility with your pump model first.

Rule/Jabsco Aerator Motor Cartridges - 500-1100 GPH

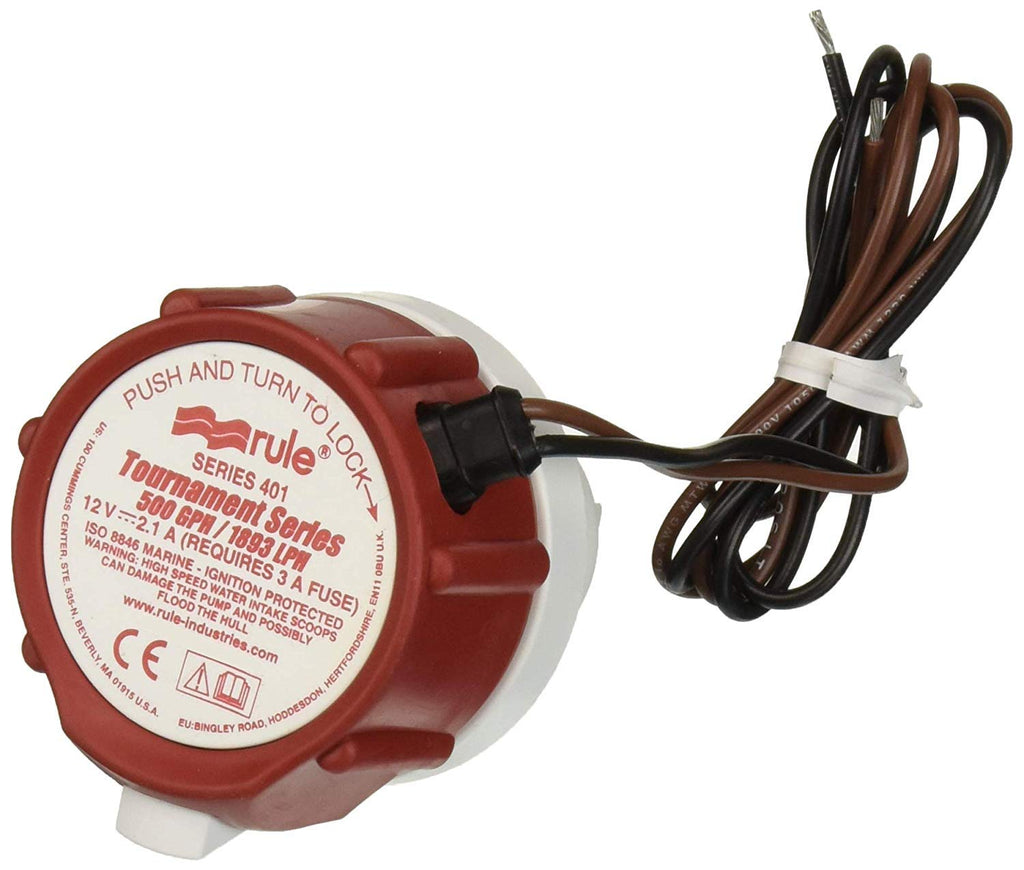

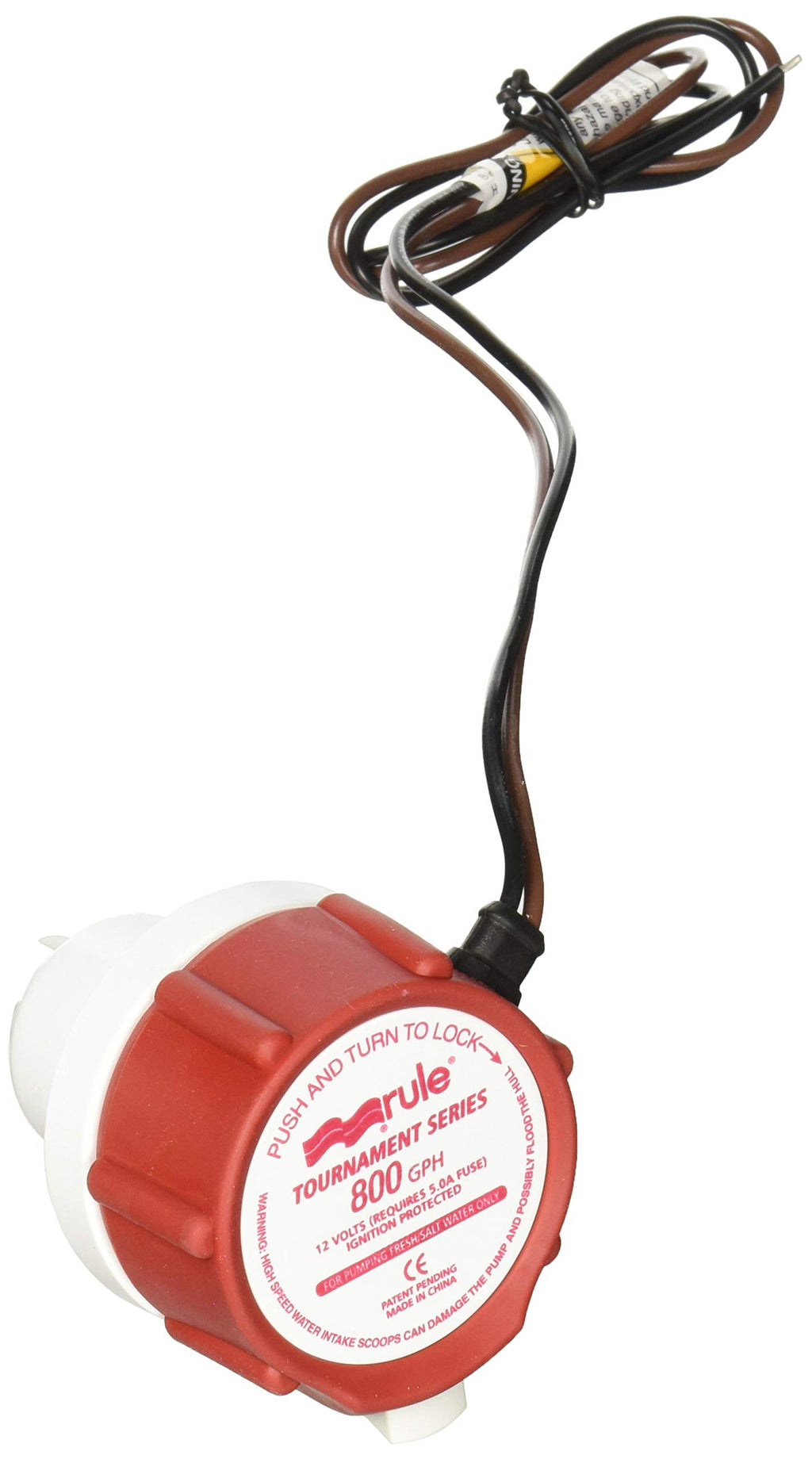

Rule/Jabsco Tournament Series Aerator Pump Replacement Motor Cartridges - 500 to 1100 GPH

$42.20

Keep your livewell aerator running at full strength without replacing the entire pump housing. This Tournament Series replacement motor cartridge line drops directly into compatible Jabsco/Rule Tournament Series aerator pump bodies, restoring full flow rate with a snap-in design that requires no rewiring or special tools. Each cartridge is built with a synthetic, corrosion-resistant housing rated for 12 volt marine electrical systems, and matched to a specific flow rate so your livewell keeps bait and catch oxygenated all day on the water.

Specifications

Brand: Rule / Jabsco
Voltage: 12 Volts
Design: Snap-in replacement cartridge
Material: Synthetic housing
Compatibility: Tournament Series aerator pumps only (not compatible with Pro-Series)
Manufacturer Warranty: 3 years

Sizes & Options

These cartridges are available in three flow rates - 500 GPH, 800 GPH, and 1100 GPH - matched to specific Tournament Series pump models. Check the model number stamped on your existing pump housing (such as 405C, 405STC, or 405FC) or your livewell's rated flow requirement before ordering, since installing a cartridge with the wrong flow rate can under- or over-power your aerator system.

Rule/Jabsco Tournament Series Aerator Pump Replacement Motor Cartridges - 500 to 1100 GPH

Specifications

Sizes & Options
