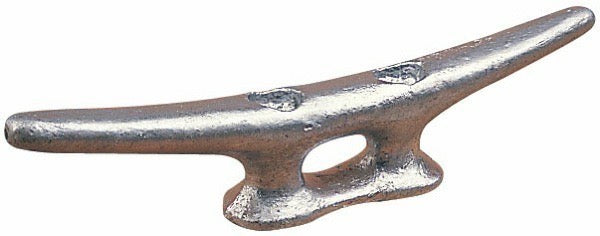

Sea-Dog Flat Head Open Base Cleat, 5 Inch, Galvanized Cast Iron

The Sea-Dog 5 inch Flat Head Open Base Cleat is a hot dipped galvanized cast iron dock and deck cleat designed for smaller recreational boats and recreational docks. Its open base and flat head design give it a low profile that lies flatter against the mounting surface than a raised-base cleat, making it easy to walk over and less likely to snag lines or feet on deck. The corrosion resistant hot dipped galvanizing protects the cast iron body against the marine environment, holding up to saltwater spray and everyday dock use.

This cleat installs with two flat head thru-bolts sized for a #12 fastener (bolts not included), so hardware is countersunk for a clean, snag-free finish. It measures 5 inches overall (A), with a base footprint of 1-5/16 inches (B) by 1-1/16 inches (C) and an overall width of 2-3/16 inches (D), giving a compact profile suited to smaller craft and dock applications. Sea-Dog notes this cleat is not recommended for large boats or commercial applications, so it is best matched to recreational boats and residential dock hardware where a smaller, lighter-duty cleat is appropriate.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 040105-1
• Product Type: Flat Head Open Base Cleat
• Overall Length (A): 5 inches
• Dimension B: 1-5/16 inches
• Dimension C: 1-1/16 inches
• Dimension D: 2-3/16 inches
• Fastener Size: #12 Flat Head
• Mounting Hardware: Two flat head thru-bolts (not included)
• Material: Hot Dipped Galvanized Cast Iron
• Weight: 0.646 pounds
• Standard Pack: 10 each / 10 pair
• UPC: 035514040037

Recommended Use

• Smaller recreational boats and recreational docks
• Not recommended for large boats or commercial applications

Frequently Asked Questions

What size is the Sea-Dog 040105-1 cleat? The Sea-Dog 040105-1 measures 5 inches overall in length, with a base footprint of 1-5/16 inches by 1-1/16 inches and an overall width of 2-3/16 inches.

What material is this cleat made from? It is made from hot dipped galvanized cast iron, which resists corrosion in marine and dockside environments.

Is mounting hardware included with the 040105-1 cleat? No. The Sea-Dog 040105-1 installs with two flat head thru-bolts sized for a #12 fastener, but the bolts themselves are not included.

Is this cleat rated for large boats? No, Sea-Dog states this flat head open base cleat is designed for smaller recreational craft and recreational docks and is not recommended for large boats or commercial applications.

What does 'open base' mean for this cleat design? An open base cleat, like the Sea-Dog 040105-1, has an open area beneath the horns rather than a solid base plate, which is the standard low-profile flat head cleat style used on smaller boats and docks.

How much does the 040105-1 cleat weigh? The Sea-Dog 040105-1 weighs 0.646 pounds.

How many cleats come in a package? The 040105-1 is packed in a standard pack of 10 each or 10 pairs, though individual listings may sell it in smaller quantities.

Can this cleat be used on a dock instead of a boat? Yes, Sea-Dog specifies this cleat for use on both smaller recreational craft and recreational docks.

What fastener size does the 040105-1 use? This cleat uses a #12 flat head fastener for its two mounting thru-bolts.

Does the cleat have a UPC for retail tracking? Yes, the Sea-Dog 040105-1 5 inch cleat carries UPC 035514040037.
