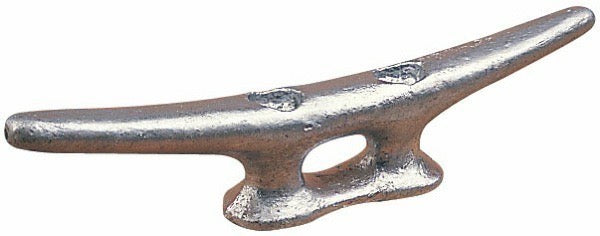

Sea-Dog 040106-1 Flat Head Open Base Cleat, 6 Inch, Galvanized Cast Iron

The Sea-Dog 040106-1 is a 6 inch flat head open base cleat built for securing docking and mooring lines on smaller recreational craft and recreational docks. It is constructed of cast iron with a hot dipped galvanized finish that resists corrosion in wet marine environments, giving it a durable silver finish that holds up to repeated line loading and weather exposure. The open base design allows lines to be wrapped and cleated off quickly, while the flat head profile sits low against the mounting surface for a clean, low-profile installation. This cleat installs with two flat head thru-bolts (not included), which pass through the mounting holes sized for 1/4 inch hardware. It is sold as a single cleat. Sea-Dog specifies this model for use on smaller recreational boats and recreational docks and does not recommend it for large boats or commercial applications, so buyers should size their line loads accordingly. Sea-Dog Line has manufactured marine hardware since 1933 and has received multiple industry awards for quality and efficiency. This part number, 040106-1, corresponds to the 6 inch size within Sea-Dog's flat head open base cleat lineup, which also includes 3-1/2 inch, 4 inch, 5 inch, 8 inch, 10 inch, 12 inch, and 14 inch versions for different boat and dock sizes.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 040106-1
• Product Type: Flat Head Open Base Cleat
• Overall Length: 6 inches
• Height: 1-3/8 inches
• Base Length: 1-1/4 inches
• Bolt Hole Spacing: 2-3/16 inches
• Bolt Hole Diameter: 1/4 inch
• Head Style: Flat Head
• Base Style: Open Base
• Material: Cast Iron
• Finish: Hot Dipped Galvanized
• Color: Silver
• Item Dimensions: 7.88 x 3.88 x 1.5 inches
• Weight: 0.878 pounds
• Mounting Hardware: Two flat head thru-bolts (not included)
• Recommended Use: Smaller recreational boats and recreational docks
• UPC: 035514040044

Frequently Asked Questions

What size is the Sea-Dog 040106-1 cleat? The Sea-Dog 040106-1 is 6 inches in overall length, with a base length of 1-1/4 inches and a bolt hole spacing of 2-3/16 inches, making it one of the mid-size options in Sea-Dog's flat head open base cleat lineup.

What is this cleat made of? It is made of cast iron with a hot dipped galvanized finish, which gives the 040106-1 corrosion resistance for use in wet marine environments.

Does the 040106-1 cleat come with mounting bolts? No, the Sea-Dog 040106-1 installs with two flat head thru-bolts sized for its 1/4 inch bolt holes, but the bolts themselves are not included and must be purchased separately.

Is this cleat rated for large boats or commercial use? No. Sea-Dog specifies the 040106-1 flat head open base cleat for use on smaller recreational craft and recreational docks, and it is not recommended for large boats or commercial applications.

How much does the 040106-1 cleat weigh? The Sea-Dog 040106-1 flat head open base cleat weighs 0.878 pounds.

What does 'open base' mean on this cleat? An open base cleat has a gap beneath the horns rather than a solid base plate, which is the design used on the Sea-Dog 040106-1 and lets dock lines be wrapped and cleated off quickly.

What color or finish does this cleat have? The 040106-1 has a silver, hot dipped galvanized finish over its cast iron construction.

Is the 040106-1 sold as a single cleat or a pair? It is sold as a single cleat; the Sea-Dog 040106-1 is not packaged as a matched pair.

What size bolts does the 040106-1 cleat need? The mounting holes on the Sea-Dog 040106-1 are sized for 1/4 inch flat head thru-bolts.

What are the overall dimensions of this cleat's packaging or footprint? The Sea-Dog 040106-1 measures 7.88 x 3.88 x 1.5 inches overall.

Are there other sizes of this same cleat available? Yes, Sea-Dog makes this flat head open base cleat in several other lengths, including 3-1/2 inch, 4 inch, 5 inch, 8 inch, 10 inch, 12 inch, and 14 inch versions, each under its own part number; the 040106-1 is the 6 inch size.

Who makes the 040106-1 cleat and how long has the company been in business? The 040106-1 is made by Sea-Dog Line, a family-owned marine hardware manufacturer that has been in business since 1933.
