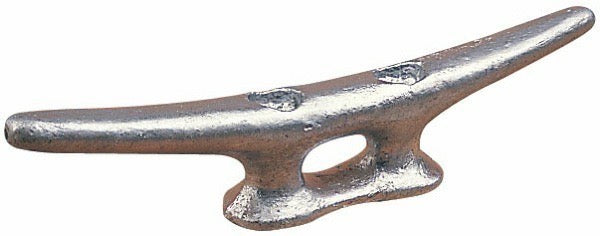

Sea-Dog Flat Head Open Base Cleat 040110, 10 Inch, Galvanized Cast Iron

The Sea-Dog 040110 is a 10 inch flat head open base cleat built for securing dock lines and mooring lines on smaller recreational boats and recreational docks. It is constructed of corrosion resistant hot dipped galvanized cast iron, giving it the strength of cast iron with a protective galvanized finish that resists rust and corrosion in wet marine environments. The open base design allows lines to be wrapped and cleated off quickly, while the low-profile flat head shape keeps the cleat from becoming a snag point on deck or dock surfaces.

This cleat installs with two flat head thru-bolts (not included), which pass through the base and seat flush for a clean, secure mount. At 10 inches overall length, the 040110 sits in the middle of Sea-Dog's flat head open base cleat lineup, sized for boats and dock applications that need more holding capacity than the smaller 5, 6, and 8 inch versions but do not require the largest 12 or 14 inch sizes. Sea-Dog notes this cleat is intended for smaller recreational craft and recreational docks and is not recommended for large boats or commercial applications.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 040110
• Product Type: Flat Head Open Base Cleat
• Material: Galvanized Cast Iron
• Finish: Hot Dipped Galvanized
• Head Style: Flat Head
• Base Style: Open Base
• Overall Length: 10 inches
• Base Length: 2-1/2 inches
• Base Width: 2-3/8 inches
• Overall Height: 4-1/16 inches
• Bolt Hole Diameter: 3/8 inch
• Mounting Hardware: Installs with two flat head thru-bolts (not included)
• Weight: 2.13 pounds
• Standard Pack: 10 each
• UPC: 035514040112

Frequently Asked Questions

What size is the Sea-Dog 040110 cleat? The 040110 measures 10 inches in overall length, with a base of 2-1/2 inches by 2-3/8 inches and an overall height of 4-1/16 inches.

What is the 040110 cleat made of? It is made of hot dipped galvanized cast iron, which combines the strength of cast iron with a galvanized finish that resists rust and corrosion in marine use.

Does the Sea-Dog 040110 come with mounting bolts? No, the 040110 installs with two flat head thru-bolts, and the bolts are not included with the cleat.

What size bolts does this cleat use? The 040110 has a bolt hole diameter of 3/8 inch for its two flat head thru-bolts.

How much does the 10 inch Sea-Dog cleat weigh? The Sea-Dog 040110 flat head open base cleat weighs 2.13 pounds.

Is the 040110 cleat suitable for large boats? No, Sea-Dog states this flat head open base cleat is intended for smaller recreational craft and recreational docks and is not recommended for large boats or commercial applications.

What is an open base cleat used for? An open base cleat like the 040110 is used to secure dock lines and mooring lines, with an open design under the horns that makes it easy to wrap and cleat off a line quickly.

Why choose a flat head cleat instead of a horn cleat with a raised base? The flat head design of the 040110 keeps the cleat low profile against the mounting surface, reducing the chance of the base catching lines or gear on deck or dock.

How many 040110 cleats come in a package? The Sea-Dog 040110 has a standard pack quantity of 10 each and is also sold individually per each.

Is the 040110 different from the smaller Sea-Dog flat head cleats? Yes, the 040110 is the 10 inch size in Sea-Dog's flat head open base cleat line, which also includes 5, 6, 8, 12, and 14 inch versions with correspondingly different base dimensions and weights.

Can the Sea-Dog 040110 be used outdoors in saltwater environments? Yes, the hot dipped galvanized finish on the 040110 is corrosion resistant, making it suitable for exposed marine and dock environments.
