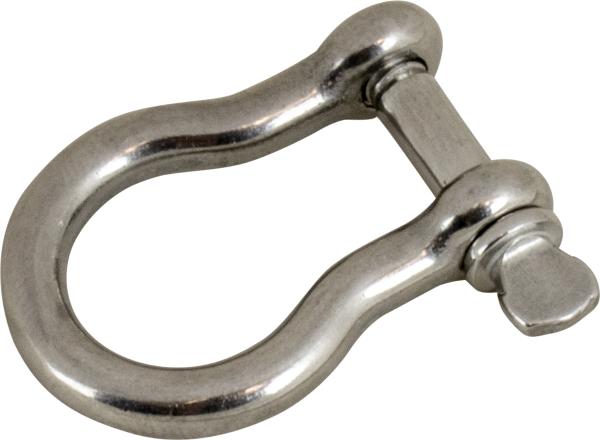

Sea-Dog Bow Shackle 147060-1, 3/8 Inch Pin, Investment Cast 316 Stainless Steel Screw Pin Shackle

The Sea-Dog 147060-1 Bow Shackle is a 3/8 inch pin stainless steel shackle built for general-purpose marine rigging, anchoring, and hardware connections. Its rounded bow shape accepts a wider range of attachment angles than a straight D-shackle, making it a versatile choice wherever lines, chains, or fittings need a secure but removable connection point.

The shackle body is investment cast from 316 stainless steel, a marine-grade alloy chosen for its resistance to corrosion in saltwater environments. A screw pin closure allows the shackle to be opened and closed by hand without tools, which makes it well suited for rigging tasks where the shackle is connected and disconnected repeatedly, such as swapping fenders, securing anchors, or attaching rigging hardware.

Because this shackle is investment cast rather than forged, it is not load rated and should be used for general connection and rigging purposes rather than applications requiring a certified working load or breaking strength rating. It is sold individually (each).

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 147060-1
• Product Type: Bow Shackle
• Material: 316 Stainless Steel (Investment Cast)
• Closure Type: Screw Pin
• Pin Diameter: 3/8 inch
• Additional Body Dimensions: 13/16 inch x 1-3/8 inch x 1-13/16 inch
• Color/Finish: Silver
• Weight: 0.3 pounds
• Load Rating: Not load rated (cast construction)
• Packaging: Sold each
• UPC: 035514147149

Frequently Asked Questions

What size is the Sea-Dog 147060-1 Bow Shackle? The 147060-1 Bow Shackle has a 3/8 inch pin diameter, with body dimensions of 13/16 inch x 1-3/8 inch x 1-13/16 inch.

What material is this shackle made from? It is made from investment cast 316 stainless steel, a corrosion resistant marine-grade alloy suited to saltwater exposure.

Is the Sea-Dog 147060-1 load rated? No. As an investment cast shackle rather than a forged one, the 147060-1 is not load rated and should be used for general rigging and connection purposes, not certified load-bearing applications.

How does the pin open and close? The 147060-1 uses a screw pin closure, allowing it to be threaded open and closed by hand for quick, repeated connecting and disconnecting.

Is this shackle sold as a single piece or in a set? The Sea-Dog 147060-1 Bow Shackle is sold each, as a single shackle.

What is the difference between a bow shackle and a D-shackle? A bow shackle like the 147060-1 has a rounded body shape that accommodates a wider range of attachment angles, while Sea-Dog's forged D-shackles have a straighter profile and carry a stated breaking strength rating.

Will this shackle rust in saltwater? It is built from 316 stainless steel, which is chosen specifically for its corrosion resistance in marine and saltwater environments.

What is the weight of the 147060-1 shackle? The Sea-Dog 147060-1 Bow Shackle weighs 0.3 pounds.

What color or finish does this shackle have? It has a silver stainless steel finish.

What applications is this bow shackle suited for? With its rounded shape and screw pin closure, the 147060-1 is designed for general rigging applications, including anchoring and hardware attachment where fast, repeated connecting and disconnecting is needed.
