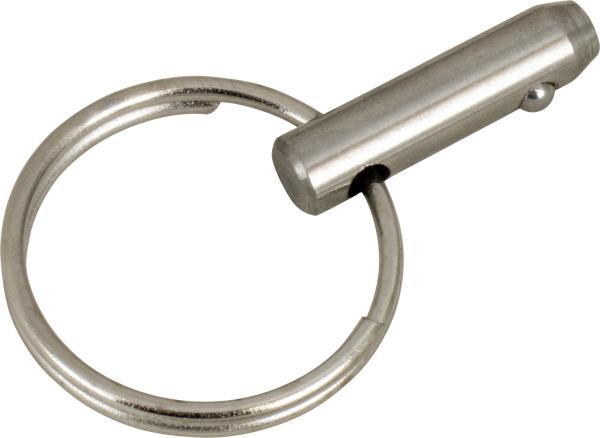

Sea-Dog Release Pin 1/4 Inch x 1 Inch, 304 Stainless Steel Detent Quick Release Pin

The Sea-Dog 193410-1 is a standard duty detent release pin built from formed 304 stainless steel for corrosion resistance in marine environments. It is designed for basic holding and removal applications that do not require a positive locking ball feature, activated by a simple push or pull motion. The internal detent ball depresses on insertion and springs back up once through the mounting hole, giving a fast, tool-free release when the pin needs to come out.

This robust, durable design holds up to repetitive-use applications, making it a common choice for anchor clevis fittings, hinge pins, and as a replacement for cotter pins in spots where the pin has to be pulled and reinserted frequently, such as bimini top and deck hinge hardware. A split ring is included on the pin so an optional lanyard can be attached to keep the pin from being lost overboard. Note that the deck hinge itself is not included; this listing is for the release pin only.

The 193410-1 measures 1/4 inch in pin diameter (A), 1 inch overall length (B), 3/4 inch useable/working length (C), 7/16 inch handle length (D), and 1 inch across the ring (E). It is part of Sea-Dog's standard duty release pin lineup and is sized for smaller-diameter hinge and clevis applications compared to the larger pins in the same series.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 193410-1
• Type: Standard duty detent release pin
• Material: Formed 304 stainless steel
• Pin Diameter (A): 1/4 inch
• Overall Length (B): 1 inch
• Useable Length (C): 3/4 inch
• Handle Length (D): 7/16 inch
• Ring Diameter (E): 1 inch
• Weight: 0.048 pounds
• UPC: 035514193016
• Includes: Split ring for lanyard attachment

Frequently Asked Questions

What is the pin diameter on the Sea-Dog 193410-1 release pin? The pin diameter is 1/4 inch, with an overall length of 1 inch.

Does this release pin have a positive locking ball feature? No. The Sea-Dog 193410-1 is a standard duty detent pin, not a positive locking pin, so it is meant for basic holding and removal rather than applications that need a locked-in-place ball detent.

How does the release mechanism work? The 193410-1 is activated by a push or pull motion. Its detent ball depresses as the pin is inserted and springs back up once it clears the hole, allowing a quick, tool-free release.

What is this pin made of? It is made of formed 304 stainless steel, chosen for corrosion resistance in marine environments.

Can this pin be used to replace a cotter pin? Yes. Sea-Dog markets the 193410-1 as suitable for replacing cotter pins in applications where the pin needs to be removed frequently, since it releases without tools.

Is a lanyard included with the 193410-1? A split ring is included on the pin for attaching an optional lanyard, though the lanyard itself is not included.

Is the deck hinge included with this pin? No, the deck hinge is not included. The 193410-1 listing covers the release pin only.

What is the useable or working length of this pin? The useable length (dimension C) of the 193410-1 is 3/4 inch.

What applications is this release pin designed for? Common uses include anchor clevis fittings, hinge pins, and other repetitive-use marine hardware applications where a quick, tool-free release is needed.

How much does the Sea-Dog 193410-1 weigh? It weighs 0.048 pounds.

Is this pin suitable for repetitive, everyday use? Yes, the 193410-1 is built with a robust, durable design intended for repetitive-use applications rather than occasional use only.
