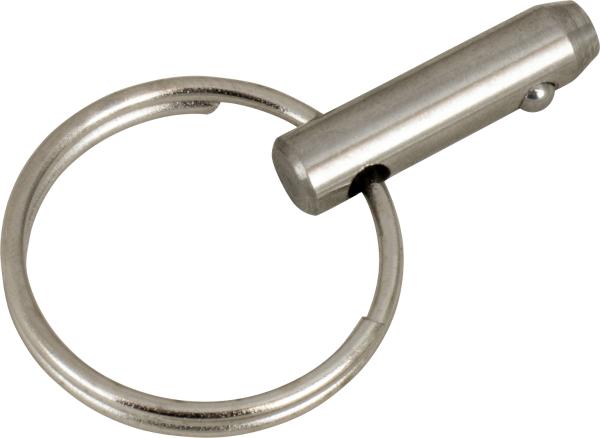

Sea-Dog Release Pin 1/4 Inch x 1-1/2 Inch, 304 Stainless Steel, Sold in Pairs

This Sea-Dog release pin is a standard duty detent pin sized 1/4 inch by 1-1/2 inch, made from formed 304 stainless steel for corrosion resistance in marine environments. It is designed for basic holding and removal applications that do not require a positive locking ball feature, and is activated with a simple push or pull motion. A spring-loaded detent ball depresses on insertion and springs back up to hold the pin in place, allowing quick release when needed. The robust, durable design suits repetitive-use applications where a part needs to be removed and reinserted often.

Typical uses include anchor clevis fittings, hinge pins, and as a replacement for cotter pins in spots where frequent removal is required, such as bimini top and deck hardware. Each pin includes a split ring so an optional lanyard can be attached to prevent loss overboard. This pin is sold as a pair. Note that the deck hinge shown in reference imagery is a separate component and is not included with this pin.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 193415-1
• Pin Diameter: 1/4 inch
• Overall Pin Length: 1-1/2 inches
• Length Dimension C: 1-1/4 inches
• Length Dimension D: 7/8 inch
• Ring Diameter: 1 inch
• Material: 304 Stainless Steel
• Weight: 0.062 pounds
• Package Quantity: Sold as a pair (2 pieces)
• Includes: Split ring for lanyard attachment

Frequently Asked Questions

What size is the Sea-Dog 193415-1 release pin? The 193415-1 measures 1/4 inch in pin diameter by 1-1/2 inches in overall pin length, with a 1 inch diameter ring.

What material is this release pin made from? It is made from formed 304 stainless steel, chosen for corrosion resistance in marine environments.

Does this pin have a locking ball feature? No, this is a standard duty detent pin without a positive locking ball feature. The detent ball simply depresses and springs back for quick release, so it is meant for basic holding and removal, not high-security locking applications.

How many pins come in a package? The Sea-Dog 193415-1 is sold as a pair, so each package contains 2 release pins.

What is this release pin typically used for? Common uses include anchor clevis fittings, hinge pins, and as a replacement for cotter pins in locations where the pin needs to be removed frequently.

Can I attach a lanyard to this pin? Yes, the 193415-1 includes a split ring specifically for attaching an optional lanyard, which helps prevent the pin from being lost overboard.

Is the deck hinge included with this pin? No, the deck hinge sometimes shown alongside this pin in reference images is a separate part and is not included with the 193415-1 release pin.

How is this pin operated? It is activated by a simple push or pull motion; the spring-loaded detent ball depresses during insertion and springs back up to hold the pin in place for quick release.

Is this pin suitable for repeated use? Yes, the robust formed stainless steel construction of the 193415-1 is designed for repetitive-use applications where the pin is regularly inserted and removed.

How much does this release pin weigh? The Sea-Dog 193415-1 weighs 0.062 pounds.
