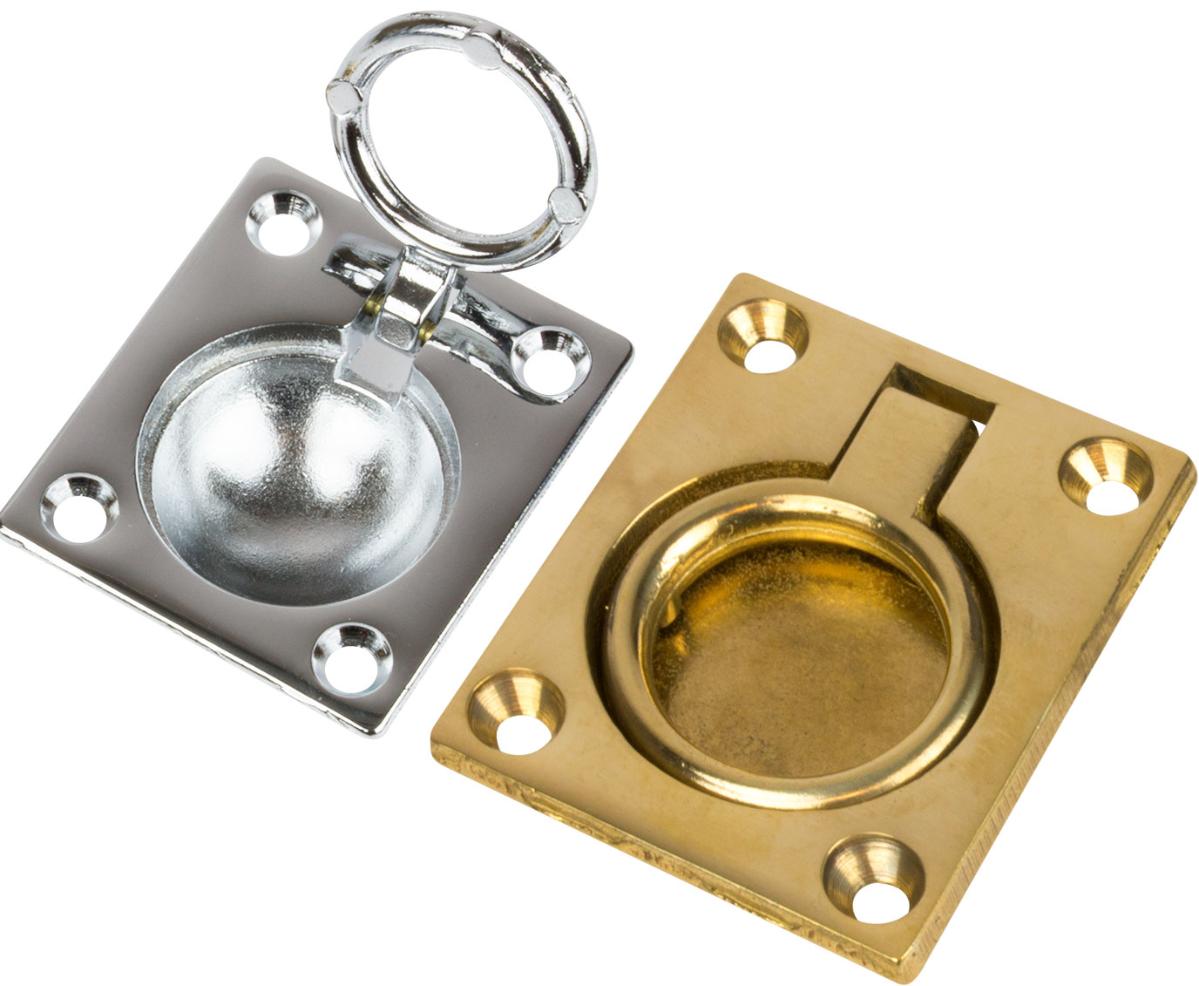

Sea-Dog 222400-1 Chrome Ring Pull, 1-3/4 Inch Cast Brass Hatch Handle

The Sea-Dog 222400-1 is a cast brass ring pull with a chrome plated finish, designed for hatches, cabinets, chests, and drawers aboard a boat or in any marine-grade application. The handle pivots out from the face plate to give a firm grip for opening, then folds back down flush against the surface when not in use, keeping the surrounding panel clean and free of snag points. The face plate measures 1-3/4 inches by 1-1/2 inches, sized for smaller hatch lids, drawer fronts, and cabinet doors where a low-profile pull is needed.

Construction is sand cast brass, giving the pull the weight and rigidity to hold up to repeated use and marine exposure, finished in a plated chrome for corrosion resistance and a bright, clean appearance. The ring pull mounts with four flat head fasteners (not included), sized for a #6 screw. This is a universal mounting hardware item and is not tied to a specific engine, drive, or boat model.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 222400-1
• Material: Cast Brass
• Finish: Chrome Plated
• Face Plate Length: 1-3/4 inches
• Face Plate Width: 1-1/2 inches
• Dimension C: 1/2 inch
• Dimension D: 1/8 inch
• Dimension E: 1-1/8 inches
• Fastener: #6 Flat Head (not included)
• Weight: 0.116 pounds
• Standard Pack: 10 each
• UPC: 035514222082

Fitment

Universal mounting hardware for hatches, cabinets, chests, and drawers; not specific to any make, model, or engine.

Replaces (OEM)

No OEM cross-reference numbers apply to this part.

Frequently Asked Questions

What is the Sea-Dog 222400-1 ring pull used for? The Sea-Dog 222400-1 is a pivoting ring pull handle used on hatches, cabinets, chests, and drawers, giving a hand hold that folds flush against the surface when not in use.

What size is the 222400-1 ring pull? The face plate measures 1-3/4 inches by 1-1/2 inches, making the Sea-Dog 222400-1 sized for smaller hatch lids, cabinet doors, and drawer fronts.

Is the 222400-1 ring pull solid brass? Yes, the Sea-Dog 222400-1 is constructed of sand cast brass, finished with a chrome plated coating for corrosion resistance and appearance.

What finish does the Sea-Dog 222400-1 have? This ring pull has a chrome plated finish over its cast brass body, giving it a bright, corrosion-resistant surface.

Does the 222400-1 come with mounting screws? No, fasteners are not included with the Sea-Dog 222400-1; it is designed to be installed with four #6 flat head screws supplied separately.

What type of fastener does this ring pull require? The Sea-Dog 222400-1 installs with four #6 flat head (FH) fasteners, which are not included in the package.

How many ring pulls come in a package? The Sea-Dog 222400-1 is sold and packed individually, with a standard case pack of 10 each for retailers and installers.

How much does the 222400-1 ring pull weigh? The Sea-Dog 222400-1 weighs 0.116 pounds.

Can this ring pull be used on cabinets and drawers, not just boat hatches? Yes, the Sea-Dog 222400-1 is general-purpose marine hardware suited to hatches, cabinets, chests, and drawers, not limited to any one application.

Does the ring pull lay flush when it is not being used? Yes, the pivoting ring on the 222400-1 folds down flat against its face plate when released, so it does not protrude or snag when not in use.

Is there a non-chrome brass version of this ring pull? The 222400-1 is the chrome plated version of this ring pull; Sea-Dog also offers the same style in a plain polished brass finish under a different part number.

What is the UPC for the Sea-Dog 222400-1? The UPC for the Sea-Dog 222400-1 chrome ring pull is 035514222082.
