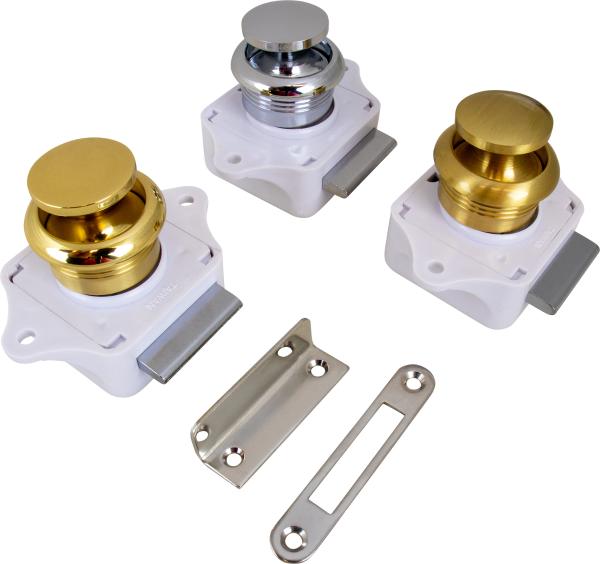

Sea-Dog 224300-1 Push Button Rim Latch, Polished Chrome, Includes Flat and 90 Degree Strike Plates

The Sea-Dog 224300-1 is a push button rim latch for marine cabinets and drawers. Pushing the button releases a positive-action closure that keeps doors and drawers securely shut until the button is deliberately pressed again, preventing them from popping open in rough water. The housing is built from sturdy brass and plastic with a polished chrome finish on the knob, giving it a clean, finished look on cabinetry. It mounts as a mortise latch for a flush, streamlined appearance and is suitable for either left-side or right-side door use, so one part number works regardless of which way the door swings.

This is the packaged version of the latch, which comes complete with both a flat strike plate and a 90 degree strike plate, covering inset and overlay mounting without having to buy plates separately. (The bulk version of this latch, part number 224300, does not include strike plates and requires them to be ordered separately as 224320 for flat mounting or 224321 for 90 degree mounting.) Maximum door thickness for installation is 1 inch. The latch body installs with two #6 RH fasteners, and each strike plate requires two #4 FH fasteners; fasteners are not included and must be sourced separately.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 224300-1
• Type: Push Button Rim Latch
• Housing Material: Brass/Plastic
• Finish: Polished Chrome
• Knob Material: Chrome Plated Brass
• Maximum Door Thickness: 1 inch
• Dimension A: 1-15/16 inches
• Dimension B: 1-7/8 inches
• Dimension C: 2-1/16 inches
• Dimension D: 1 inch
• Fastener Type: #6 RH (not included)
• Strike Plate Fastener: #4 FH (not included)
• Flat Strike Plate Hole Spacing: 1-7/8 inches
• 90 Degree Strike Plate Hole Spacing: 1-3/16 inches
• Included Components: Push button latch, flat strike plate, 90 degree strike plate
• Mounting: Mortise mount
• Side: Left or right side use
• Weight: 0.254 pounds
• UPC: 035514224147
• OEM Equivalent Part Number: SDL 2253001

Fitment

Universal fit for cabinet and drawer doors up to 1 inch thick; suitable for left-side or right-side installation.

Replaces (OEM)

SDL 2253001

Frequently Asked Questions

What does the Sea-Dog 224300-1 push button rim latch do? Pushing the button on the Sea-Dog 224300-1 releases a positive-action closure that holds a cabinet or drawer door shut until the button is pressed again, keeping doors from popping open while underway.

Does the 224300-1 include the strike plates? Yes, the 224300-1 is the packaged version and comes complete with both a flat strike plate and a 90 degree strike plate, so it covers both inset and overlay mounting out of the box.

Can this latch be installed on either side of a door? The 224300-1 is suitable for left-side or right-side use, so the same part works no matter which way the cabinet door swings.

What finish does the 224300-1 have? It has a polished chrome finish on the knob, over a brass and plastic housing.

What is the maximum door thickness this latch will fit? The Sea-Dog 224300-1 is rated for a maximum door thickness of 1 inch.

Are mounting fasteners included with the 224300-1? No. The latch body requires two #6 RH fasteners and each strike plate requires two #4 FH fasteners, but fasteners are not included and must be purchased separately.

How much does the 224300-1 weigh? The Sea-Dog 224300-1 push button rim latch weighs 0.254 pounds.

What is the difference between the 224300-1 and the bulk 224300? The 224300-1 is the packaged version that includes both strike plates, while the bulk part 224300 does not include strike plates; those must be ordered separately as 224320 (flat) or 224321 (90 degree).

What is the mounting hole spacing on the included strike plates? The flat strike plate included with the 224300-1 has a hole spacing of 1-7/8 inches, and the 90 degree strike plate has a hole spacing of 1-3/16 inches.

How is the 224300-1 mounted to the cabinet? It uses a mortise mount for a flush, finished appearance on the cabinet door.

Is there an OEM equivalent number for the 224300-1? Yes, the Sea-Dog 224300-1 has a listed OEM equivalent part number of SDL 2253001.

What material is the 224300-1 latch made of? The housing is brass and plastic construction with a chrome plated brass knob.
