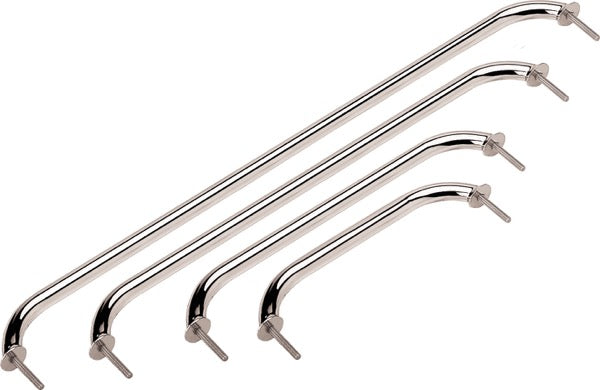

Sea-Dog Stainless Steel Stud Mount Flanged Handrail, 10 Inch, Part 254209-1

The Sea-Dog 254209-1 is a stud mount flanged handrail built from formed 304 stainless steel, giving boaters a secure, corrosion-resistant grab rail for decks, gunwales, companionways, and other onboard grip points. The flanged base provides a larger mounting surface than a standard end-cap rail, which adds stability while keeping the look clean since the design uses no visible mounting hardware. Two integral 5/16 inch-18 x 1-5/8 inch threaded studs are formed directly into the base, so installation is a matter of drilling through-holes, passing the studs through, and securing them from the underside with two 5/16 inch-18 nuts (nuts not included). The rail measures 10 inches overall (dimension A) with an 8-3/4 inch dimension B, a 2-1/4 inch dimension C, and a 1-1/2 inch dimension D, and the tube itself has a 7/8 inch outer diameter for a comfortable, secure hand grip. At 0.44 pounds, it is light enough for easy handling during installation but retains the rigidity expected of formed stainless tubing. Because it is finished in stainless steel rather than a coated or painted finish, it resists saltwater corrosion and holds up to sun and spray exposure over time. This handrail is a direct fit replacement or upgrade wherever a 10 inch stud mount flanged handrail of this footprint is needed.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 254209-1
• Product Type: Stud Mount Flanged Handrail
• Material: Formed 304 Stainless Steel
• Finish: Stainless Steel
• Mounting Style: Stud Mount, Flanged Base
• Dimension A (Overall Length): 10 inches
• Dimension B: 8-3/4 inches
• Dimension C: 2-1/4 inches
• Dimension D: 1-1/2 inches
• Tube Outer Diameter: 7/8 inch
• Mounting Stud Thread: 5/16 inch-18 x 1-5/8 inch
• Fastener Required: Two 5/16 inch-18 Nuts (not included)
• Weight: 0.44 pounds

Frequently Asked Questions

What is the overall length of the Sea-Dog 254209-1 handrail? The 254209-1 handrail measures 10 inches overall (dimension A), with an 8-3/4 inch dimension B, a 2-1/4 inch dimension C, and a 1-1/2 inch dimension D.

What material is this handrail made from? It is formed from 304 stainless steel, which resists corrosion in saltwater and marine environments and is left in a stainless finish rather than painted or coated.

How does this handrail mount to the boat? The 254209-1 is a stud mount design with a flanged base and two integral 5/16 inch-18 x 1-5/8 inch threaded studs built into the rail, so there is no visible mounting hardware on top of the surface.

What hardware do I need to install it? Installation requires two 5/16 inch-18 nuts, which are not included with the 254209-1 handrail, to secure the integral threaded studs from the underside of the mounting surface.

How thick is the grip tubing on this rail? The tube outer diameter on the Sea-Dog 254209-1 is 7/8 inch, sized for a comfortable, secure hand grip.

How much does this handrail weigh? The Sea-Dog 254209-1 stud mount flanged handrail weighs 0.44 pounds.

What is the difference between this stud mount handrail and a surface mount handrail? The 254209-1 stud mount flanged handrail uses integral threaded studs and nuts so no mounting hardware is visible on top, while a surface mount handrail (such as Sea-Dog's 254312 series) uses 5/16 inch flathead fasteners driven through the base and has a 1 inch tube outer diameter rather than 7/8 inch.

Does this handrail come with mounting nuts included? No, the two 5/16 inch-18 nuts needed to secure the 254209-1 to its mounting studs are not included and must be sourced separately.

Is this handrail suitable for saltwater use? Yes, the 254209-1 is constructed of formed 304 stainless steel specifically for corrosion resistance in marine and saltwater environments.

Is the 254209-1 flange visible after installation? The flanged base sits against the mounting surface with the threaded studs passing through from underneath, so there is no visible mounting hardware on the exposed side of the rail.

What are dimensions B, C, and D used for on this handrail? On the Sea-Dog 254209-1 spec sheet, dimension B is 8-3/4 inches, dimension C is 2-1/4 inches, and dimension D is 1-1/2 inches, describing the rail's mounting footprint and profile alongside its 10 inch overall length.

Is the Sea-Dog 254209-1 a genuine Sea-Dog part? Yes, 254209-1 is the Sea-Dog manufacturer part number for this stud mount flanged handrail, formed from 304 stainless steel.
