Sea-Dog Stud Mount Flanged Stainless Steel Boat Handrail, 13-1/2 Inch

This Sea-Dog stud mounted flanged handrail gives boaters a secure, corrosion resistant grab point along a deck, cockpit, or companionway. It is formed from 304 stainless steel, so it resists salt spray and marine corrosion far better than painted or plated steel alternatives, and the formed construction keeps the rail strong without adding excess weight. The stud mounted flanged design provides a larger mounting surface than a standard stud mount rail, which spreads load over more area and adds stability at each end. Two integral 5/16 inch-18 x 1-5/8 inch threaded studs are built into the base flanges, so once the rail is bolted down there is no visible mounting hardware on top of the flange, giving a clean, finished look. The tube itself has a 7/8 inch outer diameter, sized for a comfortable, secure grip in wet conditions. This particular size has an overall length of 13-1/2 inches (A), a base length of 12 inches (B), a height of 2-1/4 inches (C), and a width of 1-1/2 inches (D). Installation requires two 5/16 inch-18 nuts, which are not included and must be sourced separately. This handrail is also offered in 10 inch, 19-3/8 inch, and 25-1/4 inch overall lengths under different Sea-Dog part numbers, so be sure to match the 254212-1 part number if this 13-1/2 inch size is what your boat requires.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 254212-1
• Overall Length (A): 13-1/2 inches
• Base Length (B): 12 inches
• Height (C): 2-1/4 inches
• Width (D): 1-1/2 inches
• Tube Outer Diameter: 7/8 inch
• Fastener: 5/16 inch-18 Nut (not included)
• Mounting Studs: 5/16 inch-18 x 1-5/8 inch integral threaded studs
• Material: Formed 304 Stainless Steel
• Finish: Stainless
• Weight: 0.53 pounds
• UPC: 035514254106

Fitment

Universal fit for boat decks, cockpits, companionways, and other surfaces where a 13-1/2 inch stud mounted flanged handrail is needed.

Frequently Asked Questions

What are the dimensions of the Sea-Dog 254212-1 handrail? The 254212-1 handrail has an overall length of 13-1/2 inches (A), a base length of 12 inches (B), a height of 2-1/4 inches (C), and a width of 1-1/2 inches (D), with a 7/8 inch outer diameter tube.

What is this handrail made of? It is made of formed 304 stainless steel, chosen for its resistance to corrosion in marine environments.

Does the handrail include mounting hardware? Two integral 5/16 inch-18 x 1-5/8 inch threaded studs are built into the base flanges, but the 5/16 inch-18 mounting nuts are not included and must be purchased separately.

How much does the 13-1/2 inch stud mount handrail weigh? The Sea-Dog 254212-1 weighs 0.53 pounds.

Will there be visible hardware on top of the mounting flanges? No. Because the 254212-1 uses integral threaded studs, the mounting nuts are installed underneath the mounting surface, leaving no visible hardware on the flange.

How is a stud mounted flanged handrail different from a surface mount handrail? The stud mounted flanged design used on the 254212-1 installs with two integral 5/16 inch-18 threaded studs and hidden nuts, while Sea-Dog's surface mount handrails (such as part number 254312-1) install with two visible 5/16 inch FH fasteners through the base instead.

What size are the mounting studs on this handrail? The integral studs on the 254212-1 are 5/16 inch-18 x 1-5/8 inch, threaded directly into the base flanges.

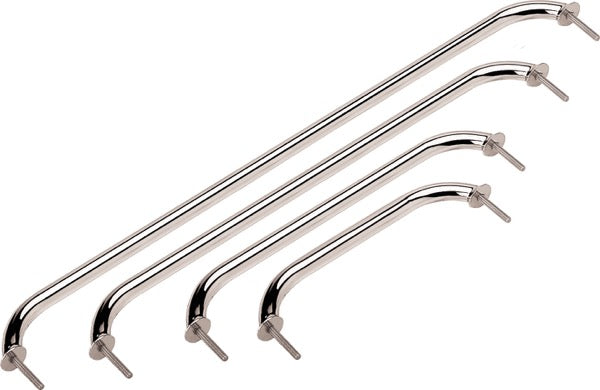

Does this handrail come in other lengths? Yes, the same stud mounted flanged design is available in 10 inch, 19-3/8 inch, and 25-1/4 inch overall lengths under different Sea-Dog part numbers, so confirm 254212-1 is the correct part number for the 13-1/2 inch size before ordering.

What is the tube diameter of the 254212-1 handrail? The tube on the Sea-Dog 254212-1 has a 7/8 inch outer diameter.

Is the Sea-Dog 254212-1 genuine Sea-Dog hardware? Yes, 254212-1 is the genuine Sea-Dog manufacturer part number for this 13-1/2 inch stud mounted flanged handrail.

How many mounting nuts are needed to install this handrail? Two 5/16 inch-18 nuts are required to secure the 254212-1 handrail's integral threaded studs, and these nuts are not included.
