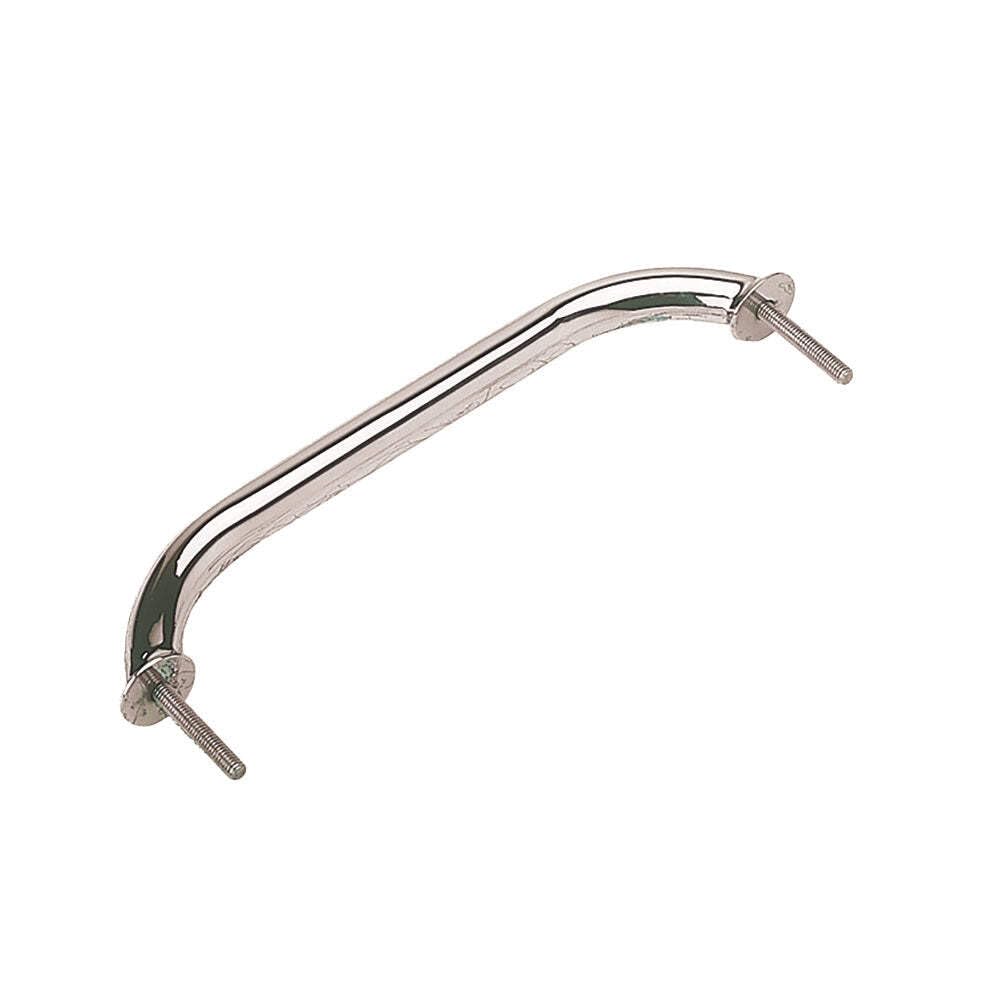

Sea-Dog Stud Mounted Flanged Boat Handrail, 19-3/8 Inch, 304 Stainless Steel

This Sea-Dog Stud Mounted Flanged Handrail is a 19-3/8 inch grab rail built for boaters who want a larger mounting surface without visible hardware on the finished side. The flanged base spreads mounting load over a wider footprint for greater stability at the helm, gunwale, or companionway, and the flush design keeps the deck or cabin surface looking clean since there are no exposed screw heads on top.

The handrail is constructed of corrosion resistant formed 304 stainless steel, making it suitable for salt and fresh water environments where ordinary hardware would pit or rust. It mounts using two integral 5/16-18 x 1-5/8 inch threaded studs that pass through the mounting surface, and is secured from underneath with two 5/16-18 nuts (nuts not included). The 7/8 inch O.D. Tube gives a comfortable, secure grip for boarding, moving around the deck, or steadying yourself in rough water.

This is a universal-fit accessory and is not tied to a specific boat make, model, or engine, so it can be installed anywhere a stud-mounted handrail is needed.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 254218-1
• Product Name: Stud Mounted Flanged Handrail
• Material: Formed 304 stainless steel
• Finish: Stainless
• Mounting Type: Stud mounted, flanged base
• Dimensions (A x B x C x D): 19-3/8 in x 18 in x 2-1/4 in x 1-1/2 in
• Tube Outer Diameter: 7/8 inch
• Fastener: 5/16-18 Nut
• Threaded Stud Size: 5/16-18 x 1-5/8 inch
• Weight: 0.7 pounds
• Standard Pack: 5 each
• UPC: 035514254120

Frequently Asked Questions

How long is the Sea-Dog 254218-1 handrail? The Sea-Dog 254218-1 measures 19-3/8 inches overall (A dimension), with an 18 inch base dimension (B) between the mounting studs.

What is this handrail made of? It is constructed of formed 304 stainless steel, chosen for corrosion resistance in marine environments.

Does the 254218-1 handrail come with mounting hardware? The handrail includes two integral 5/16-18 x 1-5/8 inch threaded studs, but the two 5/16-18 nuts needed to secure it are not included.

How is this handrail mounted? It uses a stud mount, flanged design: the threaded studs pass through the mounting surface and are tightened from underneath with 5/16-18 nuts, leaving no visible hardware on top.

What is the tube diameter of the grip? The grip tube has a 7/8 inch outer diameter on the Sea-Dog 254218-1 handrail.

Will this handrail fit any boat? Yes, the 254218-1 is a universal stud-mounted handrail and is not restricted to a specific make or model of boat.

How much does the handrail weigh? This handrail weighs 0.7 pounds.

What is the difference between this handrail and Sea-Dog's surface mount handrails? The 254218-1 is a stud mounted, flanged design with no visible mounting hardware, while Sea-Dog's surface mount handrails attach with exposed 5/16 inch flat head fasteners instead of threaded studs and nuts.

What size fasteners does the 254218-1 need? It requires two 5/16-18 nuts to secure the integral threaded studs; these nuts are not included with the handrail.

Is the flanged base of this handrail useful? Yes, the flanged base on the 254218-1 provides a larger mounting surface than a standard stud mount, giving the handrail greater stability.

What finish does the Sea-Dog 254218-1 have? It has a stainless finish, formed from 304 stainless steel for corrosion resistance.

How many handrails come in a package? The Sea-Dog 254218-1 is packed in a standard pack quantity of 5 each.
