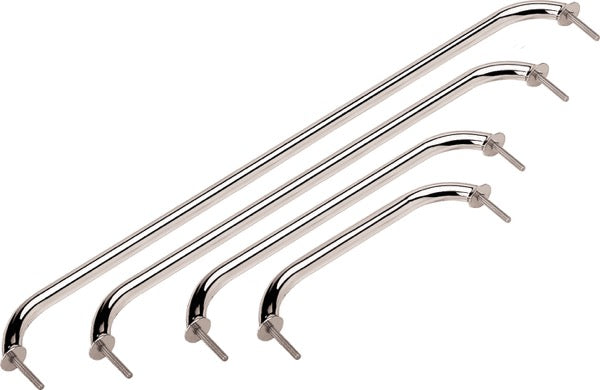

Sea-Dog Stud Mount Flanged Handrail 254224-1, 25-1/4 Inch, 304 Stainless Steel

The Sea-Dog Stud Mount Flanged Handrail (254224-1) is a 25-1/4 inch stainless steel grab rail designed to give boaters a secure, stable handhold at deck edges, cabin entries, swim platforms, and other high-traffic areas. The flanged, stud-mounted design provides a larger mounting surface for greater stability than a standard flush-mount rail, while integral 5/16"-18 x 1-5/8" threaded studs allow for a clean installation with no visible mounting hardware showing on the finished side.

This handrail is formed from corrosion resistant 304 stainless steel, making it well suited to withstand ongoing exposure to saltwater and marine environments. The tube measures 7/8 inch in outer diameter, sized for a comfortable, secure grip. It installs using two 5/16"-18 nuts, which are not included and must be sourced separately.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 254224-1
• Product Type: Stud Mount Flanged Handrail
• Material: Formed 304 Stainless Steel
• Finish: Stainless
• Dimension A: 25-1/4 inches
• Dimension B: 24-1/4 inches
• Dimension C: 2-1/4 inches
• Dimension D: 1-1/2 inches
• Tube Outer Diameter: 7/8 inch
• Fastener: 5/16"-18 Nut (not included)
• Mounting Stud: 5/16"-18 x 1-5/8" threaded stud
• Weight: 0.76 pounds
• Standard Pack: 5 each

Fitment

Universal fit; not specific to a particular boat make or model.

Frequently Asked Questions

What is the overall length of the Sea-Dog 254224-1 handrail? The 254224-1 handrail measures 25-1/4 inches for dimension A and 24-1/4 inches for dimension B.

What material is this handrail made from? It is constructed of formed 304 stainless steel, chosen for corrosion resistance in marine environments.

Does the 254224-1 handrail come with mounting hardware? No. It installs with two 5/16"-18 nuts, which are not included and need to be purchased separately.

How does this handrail mount to the boat? The Sea-Dog 254224-1 uses integral 5/16"-18 x 1-5/8" threaded studs, so there is no visible mounting hardware once installed.

What is the tube diameter of the handrail? The tube outer diameter is 7/8 inch, sized for a comfortable, secure grip.

How much does the 254224-1 handrail weigh? It weighs 0.76 pounds.

Why choose a stud mounted flanged handrail over a surface mount handrail? The stud mounted, flanged design of the 254224-1 provides a larger mounting surface for greater stability, and its studs leave no visible mounting hardware, unlike a surface mount rail that uses fasteners through the base.

Is this handrail sold as a single unit? The 254224-1 is packed in a standard pack of 5 each; check the listing quantity for how it is sold.

Where can this handrail be installed on a boat? This Sea-Dog stud mount flanged handrail is a general-purpose grab rail suited to deck edges, cabin entries, swim platforms, and other areas where a secure handhold is needed.

What finish does the 254224-1 handrail have? It has a stainless finish, formed from 304 stainless steel for corrosion resistance.

Are other lengths of this handrail available? The 254224-1 is the 25-1/4 inch version of Sea-Dog's stud mount flanged handrail line; shorter lengths are offered as separate part numbers with different dimensions.
