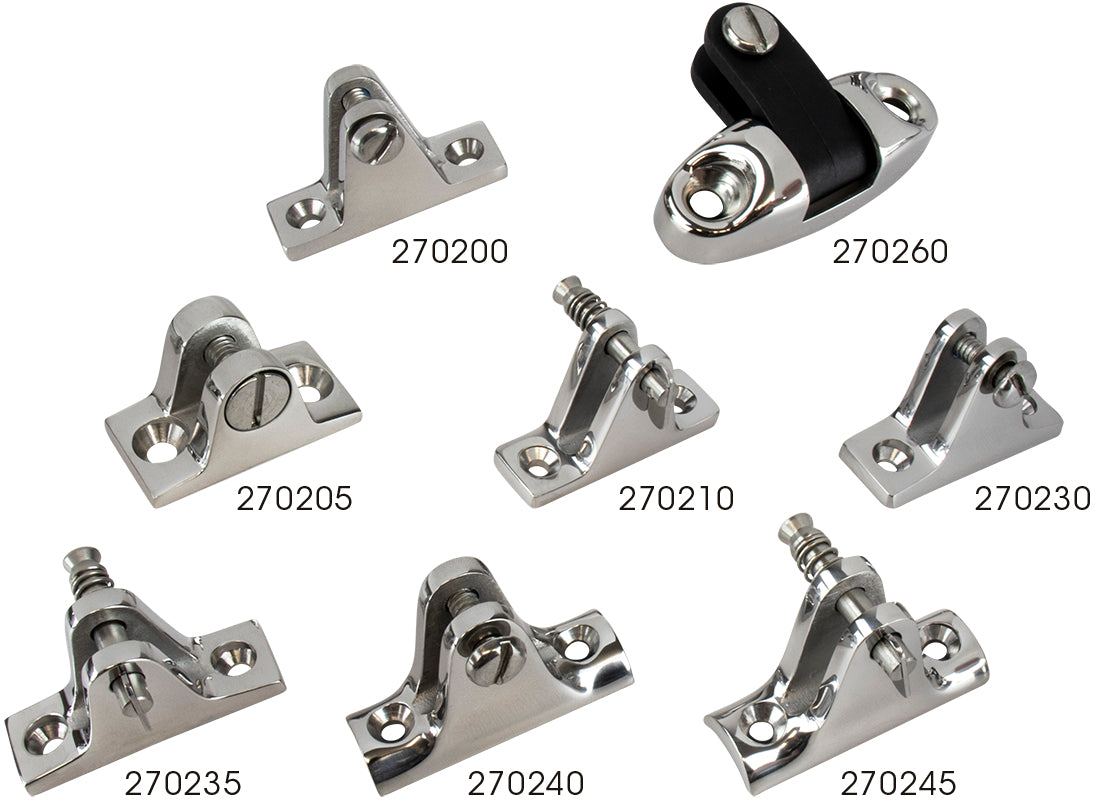

Sea-Dog 270235-1 10-Degree Angle Base Deck Hinge with Removable Pin, 316 Stainless Steel, 10-Pack

The Sea-Dog 270235-1 is a 10-degree angle base deck hinge built for mounting Bimini top eye ends and similar fittings to sloped gunwales and other slanted surfaces. The built-in angled base compensates for the slope of the mounting surface so the attached fitting sits correctly, which is why it is used specifically for slanted-surface applications rather than flat-deck mounting.

This version features a removable pin: a spring-loaded quick release pin lets you pull the pin and lift the hinge apart in seconds, so you can take the Bimini top down for storage, trailering, or dockside without unbolting the base hardware from the boat. The pin size is 1/4 inch and the hinge base measures 3/4 inch by 2-1/4 inch.

The hinge is investment cast from corrosion resistant 316 stainless steel, the marine-grade alloy used throughout Sea-Dog's rail fitting line for long-term resistance to saltwater corrosion. It installs with two flat head fasteners, sized for a #10 screw (fasteners are not included). Each unit ships as one hinge, sold in a pack of 10.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 270235-1
• Description: 10 Degree Angle Base Deck Hinge (Removable Pin)
• Base Size: 3/4 inch x 2-1/4 inch
• Pin Size: 1/4 inch
• Pin Type: Removable, spring-loaded quick release
• Fastener: #10 flat head screws (not included)
• Material: 316 stainless steel, investment cast
• Overall Item Dimensions: 6 x 4 x 2 inches
• Weight: 0.228 pounds
• Package Quantity: 10 per pack
• UPC: 035514270014

Fitment

Universal fit for slanted-surface mounting applications such as sloped gunwales; not specific to a particular boat make or model.

Frequently Asked Questions

What is the Sea-Dog 270235-1 deck hinge used for? The 270235-1 is a 10-degree angle base deck hinge used to mount Bimini top eye ends and similar fittings to sloped gunwales or other slanted surfaces, where the angled base keeps the attached fitting properly aligned.

Does this hinge have a removable pin? Yes, the 270235-1 uses a spring-loaded quick release pin, allowing the hinge to be pulled apart by hand for Bimini top removal without unbolting the base from the boat.

What pin size does the 270235-1 use? The pin size on the Sea-Dog 270235-1 angle base deck hinge is 1/4 inch.

What are the base dimensions of this deck hinge? The base of the 270235-1 measures 3/4 inch by 2-1/4 inch.

What material is the Sea-Dog 270235-1 hinge made from? It is investment cast from 316 stainless steel, a corrosion resistant marine-grade alloy.

How many hinges come in a pack? The Sea-Dog 270235-1 is sold in a pack of 10 hinges.

What size fasteners are needed to install this hinge? Installation requires two #10 flat head fasteners, which are sized to fit the 270235-1 but are not included with the hinge.

How much does one deck hinge weigh? Each Sea-Dog 270235-1 deck hinge weighs 0.228 pounds.

Is this hinge specific to certain boat makes or models? No, the 270235-1 is a universal mounting hinge for slanted surfaces and is not designated for a specific boat make or model.

What is the difference between the 270235-1 and the 270230-1 deck hinge? Both are 10-degree angle base deck hinges with the same 3/4 inch by 2-1/4 inch base, but the 270235-1 has a removable spring-loaded pin while the 270230-1 uses a fixed pin.

Can this deck hinge be used for flat deck mounting? The 270235-1 has a 10-degree angled base intended for slanted surfaces like sloped gunwales, rather than flat deck mounting.

What are the overall dimensions of the 270235-1? The item measures 6 x 4 x 2 inches overall, with a mounting base of 3/4 inch by 2-1/4 inch.
