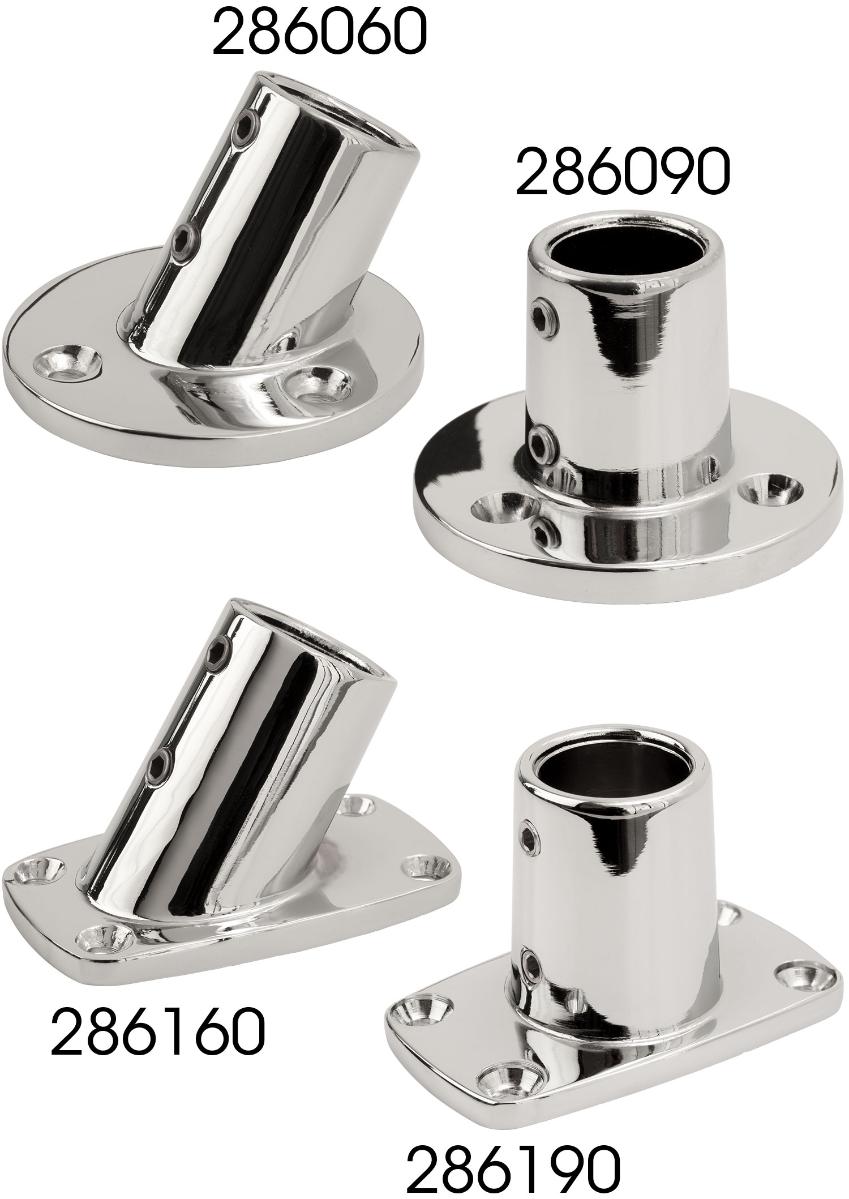

Sea-Dog 286060-1 Rail Fitting, 60 Degree Round Base, Chrome Plated Die Cast Zinc

The Sea-Dog 286060-1 is a 60 degree round base rail fitting designed to join sections of round boat railing at a fixed angle. It is constructed of die cast zinc with a chrome plated finish for a durable, polished look on deck. The fitting accepts 7/8 inch outer diameter tubing and has a 2-5/8 inch round base, making it a common choice for boat rail runs that need a 60 degree bend.

Installation is straightforward: the fitting attaches to the railing with set screws (included when purchased as a display packed unit) or can be pop riveted in place using stainless steel or aluminum rivets. A 1/8 inch Allen wrench is required to install the set screws. The base itself mounts to the deck or mounting surface using #10 flat head fasteners, which are not included. Sea-Dog recommends this fitting for freshwater use.

This part is sold under Sea-Dog part number 286060-1 and is part of a family of round and rectangular base rail fittings offered in multiple angles, so boat owners can match the fitting to the specific bend needed in their railing layout.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 286060-1
• Angle: 60 degrees
• Base Shape: Round
• Tube Outer Diameter: 7/8 inch
• Base Diameter: 2-5/8 inches
• Mounting Fastener: #10 flat head (not included)
• Installation Tool: 1/8 inch Allen wrench
• Material: Die cast zinc
• Finish: Chrome plated
• Recommended Use: Freshwater
• Weight: 0.358 pounds
• UPC: 035514286046
• Standard Pack: 10 each

Frequently Asked Questions

What angle is the Sea-Dog 286060-1 rail fitting? The 286060-1 is a 60 degree round base rail fitting, used to join round rail tubing at a 60 degree bend.

What size tubing does this fitting work with? It is sized for 7/8 inch outer diameter tubing, with a 2-5/8 inch round base.

How is the 286060-1 rail fitting installed? It attaches to the railing with set screws (included on display packed units) or can be pop riveted using stainless steel or aluminum rivets; a 1/8 inch Allen wrench is needed for the set screws, and the base mounts with #10 flat head fasteners that are not included.

Are mounting fasteners included with this rail fitting? No, the #10 flat head fasteners used to mount the base are not included with the Sea-Dog 286060-1.

What material is the Sea-Dog 286060-1 made from? It is made of die cast zinc with a chrome plated finish.

Is this rail fitting suitable for saltwater use? Sea-Dog recommends the 286060-1 for freshwater use.

How much does the 286060-1 rail fitting weigh? The fitting weighs 0.358 pounds.

Can set screws be purchased separately for this fitting? Yes, replacement set screws for bulk (non-display) packed 286060-1 fittings are available separately as part number 299999-1.

What other base shapes are available in this rail fitting line? The 286060-1 round base fitting is offered alongside rectangular base versions at other angles, so buyers can choose round or rectangular bases to match their railing.

Does the 286060-1 come in a display pack or bulk pack? It is available both as a bulk item and in a display packed version; the display packed version includes set screws, while bulk units do not.
