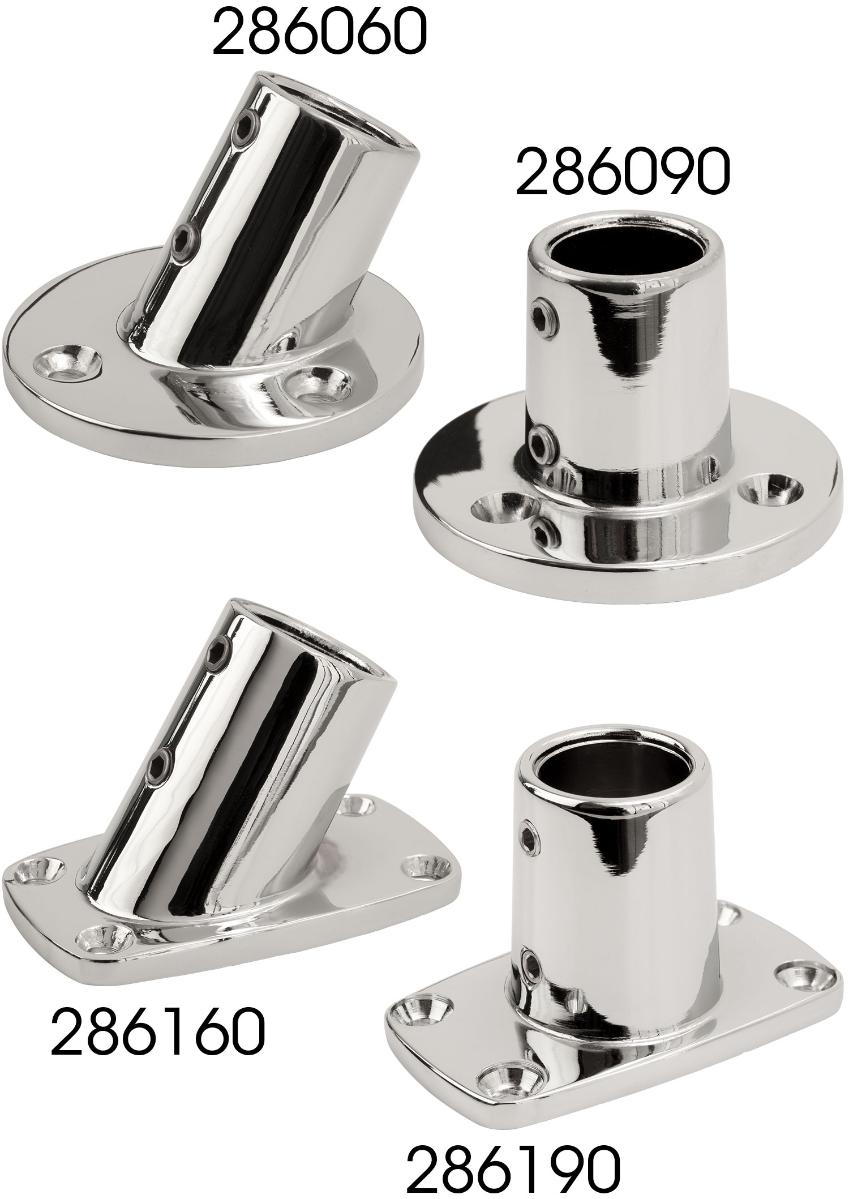

Sea-Dog 286160-1 Rectangular Base Rail Fitting, 60-Degree, 7/8 Inch Tube

The Sea-Dog 286160-1 is a 60-degree rectangular base rail fitting designed to join angled sections of 7/8 inch outer diameter stainless steel tubing on boat handrails, bow rails, and stanchion systems. The rectangular base measures 1-5/8 inches by 2-3/4 inches and mounts to the deck using #10 flat head fasteners (not included), making it well suited for rail runs along flat or rectangular mounting surfaces where a round base would not sit flush.

Construction is chrome plated die cast zinc, giving the fitting a bright, corrosion-resistant finish that matches other chrome rail hardware on the boat. The fitting is recommended for freshwater use. Tubing attaches to the fitting using set screws, which are included when the fitting is sold in a display-packed configuration; for bulk-packed fittings, set screws are sold separately under part number 299999-1. Installation and adjustment of the set screws requires a 1/8 inch Allen wrench. The fitting is sized for 7/8 inch OD stainless tubing with a wall thickness of 0.049 inches, a common gauge for boat handrail and lifeline tubing.

This is a rigid 60-degree fixed-angle fitting rather than an adjustable joint, so it is best used where the rail geometry is already known to require a 60-degree bend. It pairs with Sea-Dog's broader line of round and rectangular base rail fittings offered in 45-degree, 60-degree, and 90-degree angles for building out a complete custom rail system.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 286160-1
• Fitting Type: 60-Degree Rectangular Base Rail Fitting
• Base Shape: Rectangular
• Tube Outer Diameter: 7/8 inch
• Base Dimensions: 1-5/8 inches x 2-3/4 inches
• Mounting Fasteners: #10 flat head screws (not included)
• Material: Chrome plated die cast zinc
• Color/Finish: Chrome
• Installation Tool Required: 1/8 inch Allen wrench
• Compatible Tubing Wall Thickness: 0.049 inches
• Recommended Environment: Freshwater use
• Set Screws: Included with display-packed fittings; sold separately as part number 299999-1 for bulk-packed fittings
• Item Dimensions: 5.81 x 3.88 x 1.25 inches
• Weight: 0.32 pounds
• Package Quantity: 1
• UPC: 035514286077

Frequently Asked Questions

What angle is the Sea-Dog 286160-1 rail fitting? The 286160-1 is a fixed 60-degree fitting, used where a rail run needs to bend at that specific angle rather than an adjustable joint.

What size tubing does this fitting work with? It is sized for 7/8 inch outer diameter stainless steel tubing with a wall thickness of 0.049 inches.

Does the 286160-1 come with mounting screws? No, the #10 flat head fasteners used to mount the base to the deck are not included and must be purchased separately.

Are set screws included with this rail fitting? Set screws are included only when the 286160-1 is sold in its display-packed configuration; for bulk-packed units, set screws are sold separately as part number 299999-1.

What tool do I need to install the Sea-Dog 286160-1? A 1/8 inch Allen wrench is required to tighten the set screws that secure the tubing in the fitting.

What is this rail fitting made of? The 286160-1 is constructed of chrome plated die cast zinc for a durable, corrosion-resistant finish.

Can I use this fitting in saltwater? The 286160-1 is recommended for freshwater use.

How big is the mounting base on this fitting? The rectangular base measures 1-5/8 inches by 2-3/4 inches.

How much does the Sea-Dog 286160-1 weigh? It weighs 0.32 pounds.

What is the difference between the 286160-1 and the 286190-1? Both are rectangular base rail fittings for 7/8 inch tubing, but the 286160-1 is a 60-degree fitting while the 286190-1 is a 90-degree fitting; choose based on the bend angle your rail run requires.

Can this fitting be riveted instead of using set screws? Yes, the 286160-1 can be attached to the railing tubing with set screws or pop riveted using stainless or aluminum rivets.

Is the 286160-1 a round or rectangular base fitting? It uses a rectangular base, distinguishing it from Sea-Dog's round base equivalents at the same 60-degree angle.
