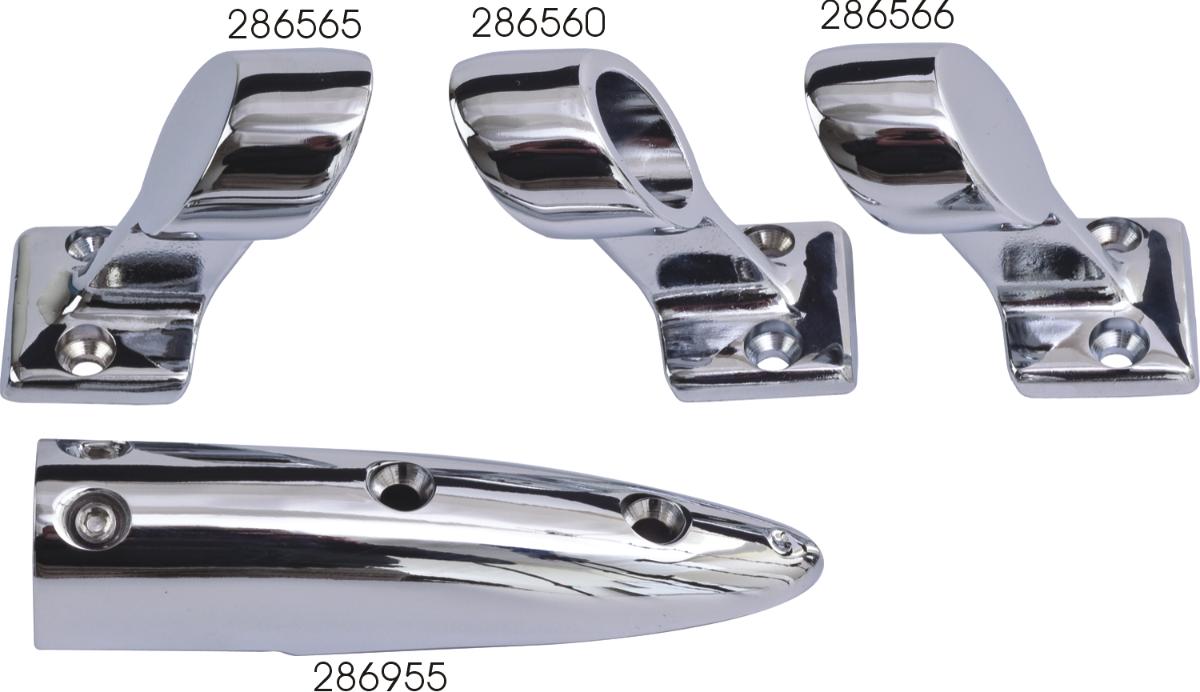

Sea-Dog 286565-1 Hand Rail Fitting, 60 Degree End - Left (Port), Chrome Plated Zinc, 7/8 Inch Tube

The Sea-Dog 286565-1 is a 60 degree end rail fitting made for the left (port) side of a boat's hand rail system. It terminates a rail run at a 60 degree angle and is built from die-cast zinc with a chrome plated finish for a bright, corrosion-resistant look. This fitting is designed for a 7/8 inch outer diameter rail tube and has a rail height of 2-1/8 inches, matching standard hand rail tubing sizes found on many boats.

Installation is flexible: the fitting can be secured to the rail tubing with an internal set screw, accessed and tightened with a 1/8 inch Allen wrench, or it can be pop riveted in place using stainless or aluminum rivets. It mounts to the deck or structure with #10 flat head fasteners, which are not included. This display-packed version comes with the mounting set screw included; replacement set screws are also sold separately for bulk-packed fittings. Sea-Dog recommends this fitting for freshwater use.

Because this is a left (port) specific end fitting, it is not interchangeable with the right (starboard) version. If you need to terminate a rail on the right (starboard) side, that is a separate part, Sea-Dog 286566-1, and ordering the correct side ensures the fitting angles the right way when installed.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 286565-1
• Type: 60 Degree End Rail Fitting - Left (Port)
• Mounting Method: Inside set screw or pop rivet (stainless or aluminum rivets)
• Rail Height: 2-1/8 inches
• Tube Outer Diameter: 7/8 inch
• Fastener: #10 flat head (not included)
• Set Screw: Included (display-packed version)
• Installation Tool Required: 1/8 inch Allen wrench
• Material: Die-cast zinc
• Finish: Chrome plated
• Recommended Use: Freshwater use
• Weight: 0.28 pounds

Fitment

Fits 7/8 inch outer diameter hand rail tubing with a 2-1/8 inch rail height; universal fit for rail systems using this tube size, left (port) end only.

Frequently Asked Questions

Which side does the Sea-Dog 286565-1 fit? The 286565-1 is a 60 degree end fitting made specifically for the left (port) side of a hand rail. It is not interchangeable with the right (starboard) side.

Is there a right (starboard) version of this fitting? Yes, the starboard equivalent is a separate part, Sea-Dog 286566-1, a 60 degree end - right (starboard) fitting with the same dimensions.

What tube size does this fitting work with? This fitting is sized for 7/8 inch outer diameter rail tubing with a 2-1/8 inch rail height.

What material is the 286565-1 made from? It is constructed of die-cast zinc with a chrome plated finish.

Are the mounting set screws included? Yes, this display-packed version of the 286565-1 comes with the set screw included. Replacement set screws are also sold separately for bulk-packed fittings.

What tool do I need to install this fitting? A 1/8 inch Allen wrench is required to tighten the internal set screw on the Sea-Dog 286565-1.

Can this fitting be riveted instead of using a set screw? Yes, the 286565-1 can be attached to railing with its set screw or pop riveted in place using stainless or aluminum rivets.

Are the deck mounting fasteners included? No. The fitting installs with #10 flat head fasteners, which are not included with the 286565-1.

How much does this rail fitting weigh? The Sea-Dog 286565-1 weighs 0.28 pounds.

Is this fitting suitable for saltwater use? Sea-Dog recommends the 286565-1 chrome plated zinc rail fitting for freshwater use.

What is the difference between the bulk and display packed versions? The display-packed version, part number 286565-1, includes the mounting set screw; the bulk-packed version does not include a set screw, which can be purchased separately.
