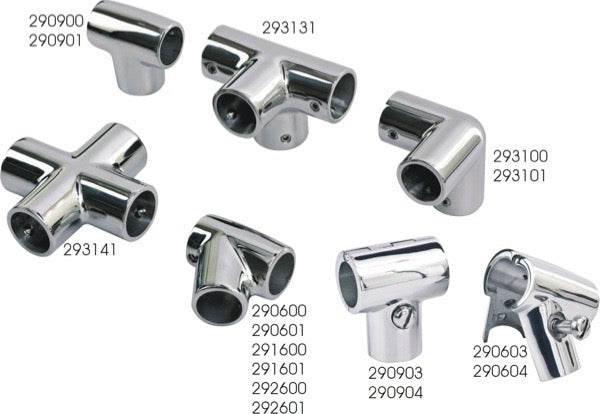

Sea-Dog 90-Degree Universal Hand Rail Tee, 1 Inch, 316 Stainless Steel - 290901-1

The Sea-Dog 290901-1 is a 90-degree Universal Tee fitting designed to create directional joints in 1 inch boat hand rail systems. As a Universal Tee, it is used where a rail run needs to branch or turn at a 90-degree angle, giving installers a clean, corrosion-resistant connection point without welding.

This fitting is constructed of investment cast 316 stainless steel, a grade chosen for its resistance to corrosion in salt water and marine environments, making it suitable for long-term exposure on deck hardware and hand rail assemblies. Installation requires a 1/8 inch Allen wrench, and the fitting is built for use with 1 inch outer diameter rail tubing, with a stainless tube wall thickness of 0.049 inches for the tubing it connects to.

The 290901-1 is part of Sea-Dog's Rail Tees, Elbows and Bow Forms line, a family of hinged, universal, and left/right handed tee, elbow, and corner fittings engineered to work together across a boat's hand rail system. Set screws for this fitting family can also be purchased separately under part number 299999-1 if replacements are needed.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 290901-1
• Fitting Angle: 90 Degrees
• Type: Universal Tee
• Tube Size: 1 inch
• Material: 316 Stainless Steel
• Construction: Investment Cast
• Stainless Tube Wall Thickness: 0.049 inches
• Installation: Requires 1/8 inch Allen wrench
• Weight: 0.406 pounds
• UPC: 035514290043
• Category: Boat Rail Fittings

Fitment

Fits 1 inch outer diameter boat hand rail tubing.

Frequently Asked Questions

What size hand rail tubing does the Sea-Dog 290901-1 fit? The Sea-Dog 290901-1 is sized for 1 inch outer diameter hand rail tubing.

What angle is this tee fitting? The 290901-1 is a 90-degree Universal Tee, used to create a 90-degree branch or turn in a hand rail run.

What material is the 290901-1 tee made from? It is constructed of investment cast 316 stainless steel, a corrosion-resistant grade suited to marine environments.

How much does the 290901-1 weigh? The Sea-Dog 290901-1 90-degree Universal Tee weighs 0.406 pounds.

What tools do I need to install this fitting? Installing the 290901-1 requires a 1/8 inch Allen wrench.

Does the 290901-1 come with set screws? Set screws for Sea-Dog's rail tee fittings are included where the fitting design calls for them, and replacement set screws are available separately as part number 299999-1.

What is the difference between a Universal Tee and a Hinged Tee in this Sea-Dog line? The 290901-1 is a Universal Tee, a fixed 90-degree fitting, while Sea-Dog's Hinged Tee fittings (such as part numbers 290903-1 and 290904-1) allow the rail angle to pivot rather than staying fixed.

Is the Sea-Dog 290901-1 corrosion resistant? Yes, the 290901-1 is investment cast from 316 stainless steel, which is corrosion resistant for marine use.

What is the tube wall thickness this fitting is designed for? The 290901-1 is designed for stainless tubing with a wall thickness of 0.049 inches.

Is the 290901-1 a genuine Sea-Dog part? Yes, part number 290901-1 is a genuine Sea-Dog 90-degree Universal Tee hand rail fitting.

What is the UPC for the Sea-Dog 290901-1? The UPC for the Sea-Dog 290901-1 90-degree Universal Tee is 035514290043.
