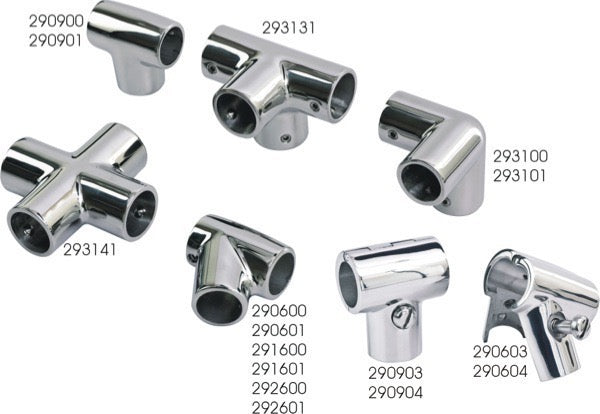

Sea-Dog 60 Degree Rail Tee Fitting, Left (Port), 7/8 Inch Tube, 316 Stainless Steel, Part 291600-1

The Sea-Dog 291600-1 is a 60 degree handrail tee fitting built for the left (port) side of the boat, sized for 7/8 inch outside diameter rail tubing. It is machined from investment cast 316 stainless steel, giving it strong corrosion resistance in saltwater and marine environments while holding a clean, polished look that matches the rest of a boat's stainless rail hardware. This tee creates the directional change needed where handrail tubing meets at a 60 degree angle on the port side, and it is designed for use with inside set screws to lock the tubing securely in place.

Installation uses inside set screws and requires only a 1/8 inch Allen wrench, making it straightforward to fit during a rail repair or a new rail build. Set screws are included with the fitting where appropriate for the connection; replacement set screws are also available separately as Sea-Dog part 299999-1 if extras are ever needed. The fitting is built from tubing stock with a stainless wall thickness of 0.049 inch, consistent with the rest of Sea-Dog's rail tee, elbow, and bow form line.

Because this is a port-side (left hand) 60 degree tee, it is not interchangeable with the starboard version. Buyers needing the right (starboard) equivalent in the same 7/8 inch size should order Sea-Dog part 292600-1 instead, as that is a separate, mirrored SKU.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 291600-1
• Fitting Type: 60 Degree Tee - Left (Port)
• Tube Outside Diameter: 7/8 inch
• Material: 316 Stainless Steel (Investment Cast)
• Tube Wall Thickness: 0.049 inch
• Set Screw Type: Inside set screws (included where appropriate; replacements sold separately as part 299999-1)
• Installation Tool Required: 1/8 inch Allen wrench
• Standard Pack: 10 each
• Weight: 0.34 pounds
• UPC: 035514291019

Frequently Asked Questions

Is the Sea-Dog 291600-1 for the port or starboard side of the boat? This is a left-hand (port side) 60 degree tee fitting only. It is not interchangeable with the starboard side; the equivalent right-hand (starboard) fitting in the same 7/8 inch size is Sea-Dog part 292600-1, a separate SKU.

What tube size does the 291600-1 tee fit? The 291600-1 is sized for 7/8 inch outside diameter handrail tubing.

What material is this rail tee made from? The 291600-1 60 degree tee is investment cast from 316 stainless steel, a corrosion-resistant grade suited to saltwater marine use.

Do set screws come with this fitting? Yes, the 291600-1 includes inside set screws where appropriate for the connection. Replacement set screws are also sold separately as Sea-Dog part 299999-1.

What tool do I need to install the 291600-1 tee? Installation of the 291600-1 tee requires only a 1/8 inch Allen wrench to tighten the inside set screws.

How much does the 291600-1 tee weigh? The Sea-Dog 291600-1 weighs 0.34 pounds.

What angle is this tee fitting? The 291600-1 is a 60 degree tee, used where handrail tubing needs to change direction at that angle on the port side.

How is the 291600-1 sold, individually or in a pack? Sea-Dog packs the 291600-1 tee in a standard pack of 10 each.

What is the wall thickness of the tubing this fitting is designed for? The 291600-1 is built to match stainless rail tubing with a wall thickness of 0.049 inch.

Can the 291600-1 be used on the starboard side of the rail? No. The 291600-1 is a left-hand (port) specific fitting; using it on the starboard side would put the tee angle in the wrong direction. Order the 292600-1 for the starboard side instead.

Is this fitting genuine Sea-Dog or aftermarket? The 291600-1 is a genuine Sea-Dog rail fitting, part of their Rail Tees, Elbows & Bow Forms line in investment cast 316 stainless steel.
