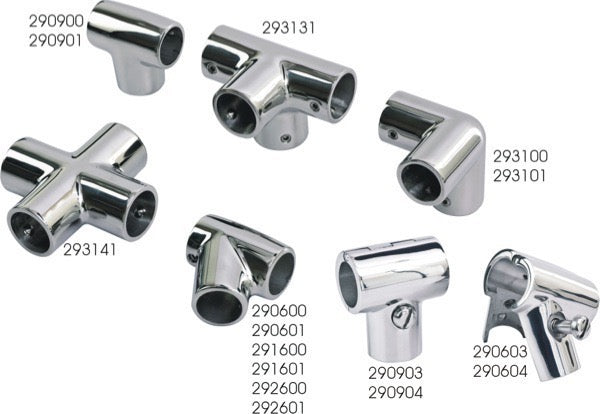

Sea-Dog Line 4-Way Rail Tee Fitting 293141-1, 1 Inch Tube OD, 316 Stainless Steel

The Sea-Dog Line 293141-1 is a 4-way rail tee fitting designed to create directionality where handrail tubing sections meet at a junction, letting you branch a 1 inch outside diameter rail run in four directions from a single point. It is constructed of investment cast 316 stainless steel for corrosion resistance in marine environments, making it suitable for lifeline, grab rail, and bow rail applications aboard boats and other marine craft. The fitting includes set screws where appropriate to lock the tubing in place once inserted; replacement set screws are available separately under part number 299999-1 if needed. Installation requires a 1/8 inch Allen wrench to tighten the set screws and secure the tubing sections into the fitting body. The fitting is sized for tube with a wall thickness of 0.049 inches, so it is intended for use with standard-wall 1 inch OD stainless rail tubing rather than heavier-wall tube. Overall dimensions are 3.25 inches by 3.25 inches. This 4-way tee is one of several rail tee, elbow, and bow form fittings offered in the same investment cast 316 stainless steel line, allowing a rail system to be built with matching hardware throughout.

Specifications

• Brand: Sea-Dog Line
• Manufacturer Part Number: 293141-1
• Type: 4-Way Tee
• Tube Outside Diameter: 1 inch
• Material: Investment cast 316 stainless steel
• Color/Finish: Stainless steel
• Dimensions: 3.25 inches L x 3.25 inches W
• Tube Wall Thickness: 0.049 inches
• Installation Tool Required: 1/8 inch Allen wrench
• Weight: 0.662 pounds
• UPC: 035514293044

Fitment

Fits 1 inch outside diameter stainless rail tubing with a wall thickness of 0.049 inches; use on handrail, grab rail, or similar tube-based rail systems.

Frequently Asked Questions

What tube size does the Sea-Dog Line 293141-1 fit? It is sized for 1 inch outside diameter rail tubing with a wall thickness of 0.049 inches.

How many directions does this rail tee branch into? Four. The 293141-1 is a 4-way tee, allowing rail tubing to be joined and directed in four directions from one fitting.

What tool do I need to install this fitting? A 1/8 inch Allen wrench is required to tighten the set screws that secure the tubing inside the 293141-1 fitting.

What material is the 293141-1 rail tee made of? It is investment cast from 316 stainless steel, chosen for its corrosion resistance in marine environments.

Are set screws included with this fitting? Set screws are included where appropriate on the 293141-1; replacement set screws are also sold separately under part number 299999-1.

What are the overall dimensions of this fitting? The Sea-Dog Line 293141-1 4-way tee measures 3.25 inches by 3.25 inches.

How much does the 293141-1 weigh? It weighs 0.662 pounds.

Will this fitting work with heavier wall-thickness tubing? No. The 293141-1 is dimensioned for tube with a 0.049 inch wall thickness, so heavier-wall tubing will not fit correctly.

Is this fitting corrosion resistant for saltwater use? Yes, the 293141-1 is made of investment cast 316 stainless steel, a grade selected for its corrosion resistance, making it suitable for marine use.

What is the UPC for this part? The UPC for the Sea-Dog Line 293141-1 4-way tee is 035514293044.

Can this fitting be used for both handrail and lifeline applications? The 293141-1 is a rail tee intended for handrail-type tube junctions where directionality is needed, such as grab rail and bow rail systems using 1 inch OD tubing.
