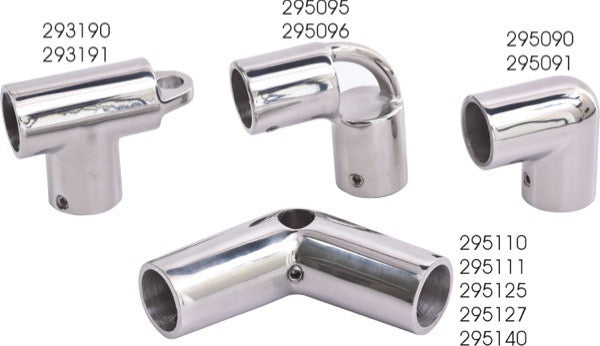

Sea-Dog 90 Degree Elbow Rail Fitting, 7/8 Inch Tube, 316 Stainless Steel - 295090-1

The Sea-Dog 295090-1 is a 90 degree elbow fitting designed for boat rail systems using 7/8 inch outer diameter tubing. It is used to join two sections of rail at a right angle, letting builders and installers create clean corner transitions in bow rails, stanchion systems, and other tubular railing runs without cutting or welding. The fitting is constructed of corrosion resistant investment cast 316 stainless steel, with a stainless tube wall thickness of 0.049 inch, making it suitable for continuous marine exposure to saltwater and UV without rusting or pitting.

Installation is straightforward: the elbow can be attached to the railing tube using set screws or pop riveted in place with stainless or aluminum rivets, whichever method suits the existing rail assembly. Set screws are included where appropriate for this fitting, and a 1/8 inch Allen wrench is required to install them. Replacement set screws are also available separately under part number 299999-1 if extras are needed for a larger installation. The 295090-1 is sold and packed 10 pieces to a standard pack, making it a practical choice for boatbuilders, canvas and rail shops, and marine hardware stockists outfitting multiple rail runs. Its 90 degree bend and 7/8 inch tube fit make it a direct match for standard 7/8 inch rail systems where a square corner connection is needed.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 295090-1
• Type: Elbow (Rail Fitting)
• Tube Outer Diameter: 7/8 inch
• Angle: 90 degrees
• Material: 316 Stainless Steel (Investment Cast)
• Stainless Tube Wall Thickness: 0.049 inch
• Mounting Method: Set screws or pop rivets (stainless or aluminum)
• Installation Tool Required: 1/8 inch Allen wrench
• Weight: 0.34 pounds
• Standard Pack: 10 each
• Product Dimensions: 5.81 x 3.88 x 1.5 inches
• UPC: 035514295017

Frequently Asked Questions

What size tubing does the Sea-Dog 295090-1 elbow fit? The 295090-1 fits 7/8 inch outer diameter rail tubing, making the 90 degree bend in that tube size.

What angle is this elbow fitting? It is a 90 degree elbow, used to create a square corner transition in a rail run.

What material is the 295090-1 made from? It is constructed of corrosion resistant investment cast 316 stainless steel with a stainless tube wall thickness of 0.049 inch, suitable for continuous marine and saltwater exposure.

How is this rail elbow installed? The 295090-1 can be attached to the rail tube with set screws or pop riveted in place using stainless or aluminum rivets. Set screws are included where appropriate, and a 1/8 inch Allen wrench is required to tighten them.

Are set screws included with this fitting? Yes, set screws are included where appropriate for the 295090-1 elbow. Additional or replacement set screws are also sold separately under part number 299999-1.

How much does the 295090-1 weigh? This Sea-Dog 90 degree elbow weighs 0.34 pounds.

How many pieces come in a pack? The 295090-1 elbow is sold in a standard pack of 10 pieces.

What tool do I need to install this elbow? A 1/8 inch Allen wrench is required to install the set screws on the 295090-1.

Can this elbow be riveted instead of using set screws? Yes, the 295090-1 can be pop riveted to the railing using stainless or aluminum rivets as an alternative to set screws.

Is the Sea-Dog 295090-1 elbow different from the 1 inch version? Yes, the 295090-1 is sized for 7/8 inch tube, while the similar 295091-1 elbow is the 1 inch tube version; they are separate part numbers for different tube diameters.

Will this fitting rust in saltwater use? No, the 295090-1 is investment cast from 316 stainless steel, which is corrosion resistant and intended for marine saltwater environments.

What is the UPC for the Sea-Dog 295090-1 elbow? The UPC for this Sea-Dog 7/8 inch, 90 degree stainless steel elbow (295090-1) is 035514295017.
