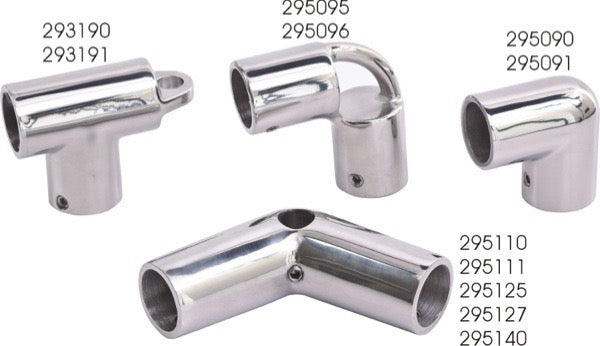

Sea-Dog 110 Degree Bow Form Rail Fitting, 1 Inch Tube, 316 Stainless Steel - 295111

The Sea-Dog 295111 is a 110 degree Bow Form rail fitting built for 1 inch outside diameter boat railing. It is investment cast from 316 stainless steel, giving it strong corrosion resistance for saltwater and freshwater use. The stainless tube wall thickness is 0.049 inches, matching standard boat rail tubing so the fitting seats cleanly at the joint.

This Bow Form doubles as a mast mount: the mounting hole in the fitting is sized to accept a 1/2 inch diameter flagpole or mast, letting you combine a rail bend with a flag or antenna staff mounting point in one fitting. It can be attached to the railing two ways: with set screws (included) or by pop riveting with stainless or aluminum rivets. Installing or adjusting the set screws requires a 1/8 inch Allen wrench.

This is part of Sea-Dog's line of Rail Tees, Elbows, and Bow Forms, which share the same cast stainless construction and mounting methods across different tube sizes and bend angles. The 295111 is the 110 degree, 1 inch tube version of that Bow Form design.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 295111
• Product Type: Bow Form (Rail Fitting)
• Angle: 110 degrees
• Tube Size: 1 inch OD
• Material: Investment Cast 316 Stainless Steel
• Stainless Tube Wall Thickness: 0.049 inches
• Mounting Hole Diameter: 1/2 inch (fits 1/2 inch diameter flagpole or mast)
• Installation Method: Set screws (included) or pop riveted with stainless or aluminum rivets
• Tool Required: 1/8 inch Allen wrench
• Finish: Corrosion resistant stainless steel
• Weight: 0.664 pounds
• UPC: 035514295154

Fitment

• Fits 1 inch outside diameter boat rail tubing
• Mounting hole accepts a 1/2 inch diameter flagpole or mast

Frequently Asked Questions

What angle is the Sea-Dog 295111 Bow Form? The 295111 is a 110 degree Bow Form, designed to create a bend in boat railing at that angle while also providing a mounting point for a flagpole or mast.

What size railing does this fitting work with? It is sized for 1 inch outside diameter boat rail tubing, with a stainless tube wall thickness of 0.049 inches to match standard rail stock.

What is the 295111 made of? It is investment cast from 316 stainless steel, a grade chosen for its resistance to corrosion in marine environments.

Can I mount a flagpole or antenna on this fitting? Yes, the mounting hole in the 295111 Bow Form is designed to fit a 1/2 inch diameter flagpole or mast, so the fitting serves as both a rail bend and a mast mount.

How is the Bow Form attached to the rail? The 295111 can be attached with the included set screws, or pop riveted in place using stainless or aluminum rivets, depending on your preferred installation method.

What tool do I need to install it? A 1/8 inch Allen wrench is required to install or tighten the set screws on the 295111.

Are the set screws included? Set screws are included with the 295111 where the fitting design calls for them; replacement set screws are also available separately.

How much does the 295111 weigh? The Sea-Dog 295111 Bow Form weighs 0.664 pounds.

Will this fit 7/8 inch railing instead of 1 inch? No, the 295111 is built for 1 inch outside diameter tubing; Sea-Dog offers a separate 7/8 inch, 110 degree Bow Form (295110) as a different part number for that tube size.

Is this fitting corrosion resistant for saltwater use? Yes, the 295111 is cast from 316 stainless steel, which is chosen specifically for corrosion resistance in marine and saltwater conditions.

What is the UPC for the Sea-Dog 295111? The UPC for the Sea-Dog 295111 Bow Form is 035514295154.
