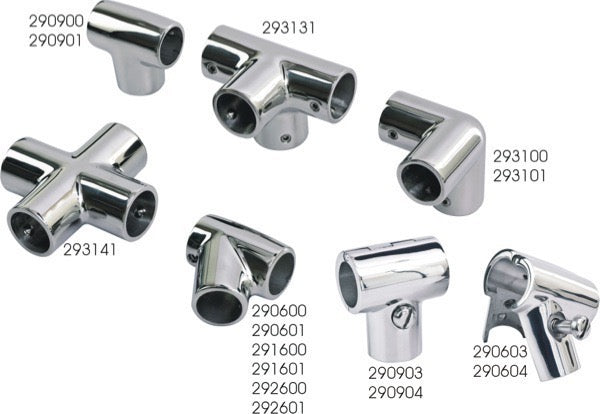

Sea-Dog 3-Way Corner Fitting, 7/8 Inch Tube, 316 Stainless Steel Boat Rail Hardware

The Sea-Dog 3-Way Corner Fitting (293100-1) is a handrail connector designed for 7/8 inch tube boat rail systems, joining three rail sections at a corner to create clean, secure directional changes in a rail run. It is machined from investment cast 316 stainless steel, giving it strong corrosion resistance for saltwater and marine environments while matching the finish of other Sea-Dog rail hardware. The fitting includes set screws where appropriate to lock it onto the tube ends, and installation is done with a 1/8 inch Allen wrench. It is sized for tube with a wall thickness of 0.049 inch. If additional or replacement set screws are needed, they are available separately under Sea-Dog part number 299999-1. This fitting is intended for boat builders, canvas and rail fabricators, and boat owners repairing or customizing bow rails, stern rails, and other tubular handrail systems. At 0.47 pounds, it is a compact, durable component that keeps a three-way rail junction rigid without adding significant weight to the rail assembly.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 293100-1
• Product Type: 3-Way Corner Fitting
• Tube Outer Diameter: 7/8 inch
• Material: 316 Stainless Steel, investment cast
• Finish: Stainless Steel
• Tube Wall Thickness Compatibility: 0.049 inch
• Installation Tool Required: 1/8 inch Allen wrench
• Includes: Set screws (where appropriate)
• Weight: 0.47 pounds
• Item Dimensions: 5.81 x 3.88 x 2.5 inches
• UPC: 035514293068

Fitment

Fits 7/8 inch outer diameter boat rail tubing at a three-way corner junction.

Frequently Asked Questions

What is the Sea-Dog 293100-1 used for? It is a 3-way corner fitting that joins three sections of 7/8 inch boat rail tubing at a corner, letting rail builders change direction cleanly in a handrail run.

What tube size does this corner fitting work with? The 293100-1 is sized for 7/8 inch outer diameter tubing with a wall thickness of 0.049 inch. Sea-Dog also makes a 1 inch version, part number 293101-1, for larger tube.

What material is the fitting made from? It is made from investment cast 316 stainless steel, chosen for its corrosion resistance in marine and saltwater environments.

Does the 293100-1 come with hardware to install it? Yes, the fitting includes set screws where appropriate. Replacement or additional set screws are sold separately under Sea-Dog part number 299999-1.

What tool do I need to install this corner fitting? A 1/8 inch Allen wrench is required to tighten the set screws on the Sea-Dog 293100-1.

How much does this fitting weigh? The Sea-Dog 293100-1 weighs 0.47 pounds.

Is this fitting sold as a single piece or a set? The 293100-1 is sold as a single 3-way corner fitting.

How many rail sections connect to this fitting? Three separate tube ends connect to the 293100-1, making it a 3-way corner junction rather than a simple elbow or tee.

What is the difference between this and a 4-way corner fitting? The 293100-1 connects three tube ends at a corner, while Sea-Dog's 4-way corner fitting (293131-1) is built for a junction where four rail sections meet.

What are the dimensions of the 293100-1? The fitting measures 5.81 x 3.88 x 2.5 inches.

Is this fitting genuine Sea-Dog hardware? Yes, part number 293100-1 is genuine Sea-Dog rail hardware, not an aftermarket copy.

Can this fitting be used on both port and starboard rail runs? Yes, the 293100-1 3-way corner fitting is not side-specific and can be used anywhere a 7/8 inch rail run needs a three-way corner connection.
