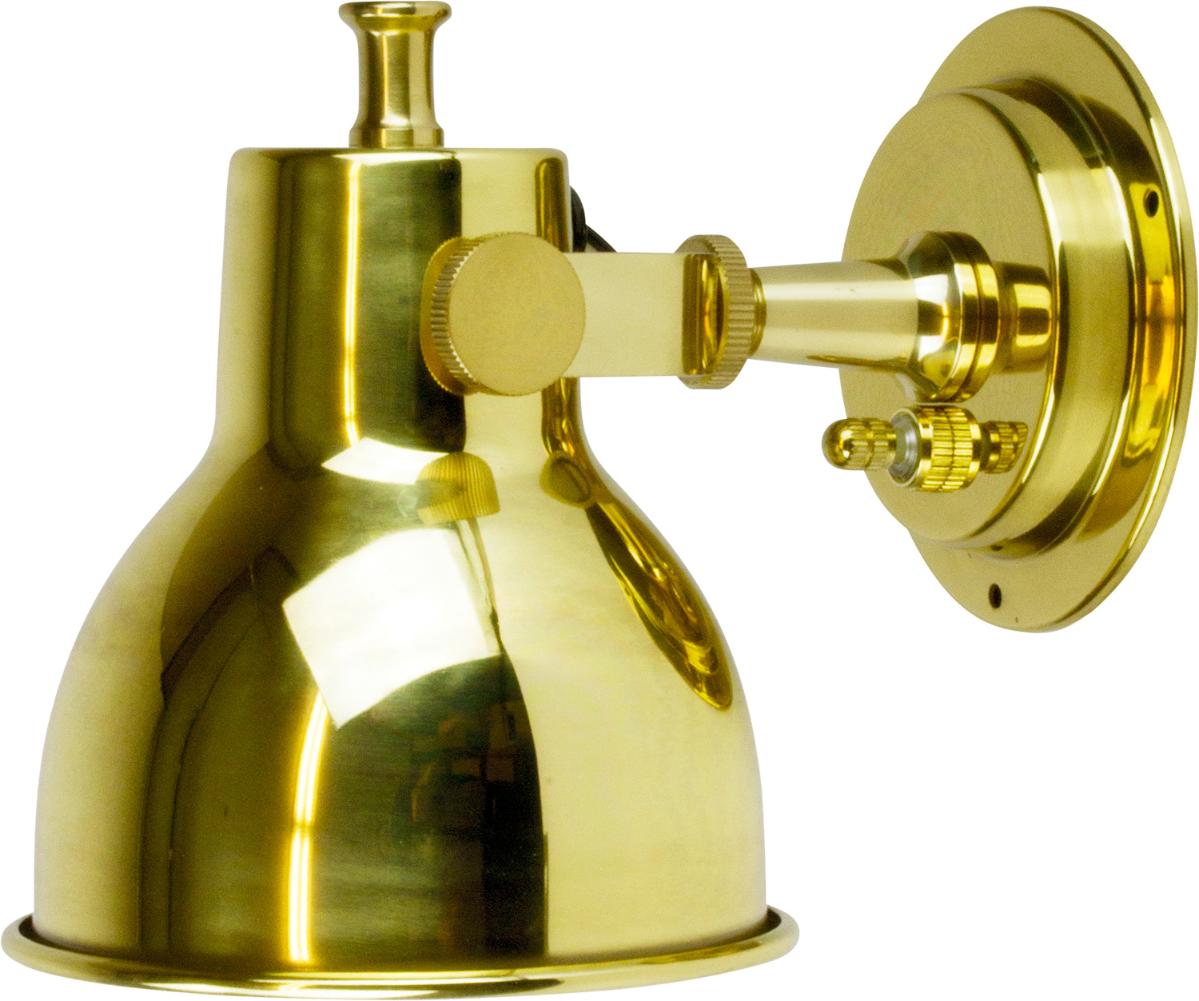

Sea-Dog Small Brass Berth Light 400400-1, 12V with On/Off Switch

The Sea-Dog Small Brass Berth Light (400400-1) is a bulkhead or wall-mounted cabin light built from machined and stamped brass with a lacquer coating that resists tarnish. The polished brass housing is finished with solid brass knurled adjusting knobs, and the interior surface of the lamp shade is coated in white enamel to reflect more light into the cabin. The light is prewired with an integral on/off switch, so it is ready to hook into a 12VDC circuit without additional switch wiring.

It ships with a 12 volt, 15 watt DC bulb using a double contact bayonet base. If you prefer LED lighting, the fixture can be converted using a double contact bayonet base G4 adapter (442042-1, sold separately) paired with a G4 bulb (also sold separately). Installation is straightforward: the light mounts with three #6 round head fasteners, which are not included, so have them on hand before installing. This is the Small size in the Sea-Dog berth light lineup; a Large version (400410-1) is also available with larger overall dimensions for buyers who want a bigger fixture.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 400400-1
• Style: Small Berth Light
• Overall Dimensions (A x B x C x D): 3-9/16 inches x 2-15/16 inches x 3-3/4 inches x 4-3/8 inches
• Weight: 0.6 pounds
• Material: Machined and Stamped Brass
• Finish: Polished Brass with Lacquer Coating
• Lamp Shade Interior: White Enamel
• Voltage: 12VDC
• Wattage: 15 watts
• Bulb Type: Double Contact Bayonet Base
• Lens Material: Glass
• Lens Color: Smoke
• Switch: Integral On/Off Switch
• Mounting: Bulkhead or Wall Mount
• Fastener: #6 RH (Round Head), Not Included
• Country of Origin: China
• UPC: 035514400282

Frequently Asked Questions

What is the Sea-Dog 400400-1 berth light made of? It is made of machined and stamped brass with a lacquer coating to prevent tarnish, and the interior of the lamp shade is finished in white enamel to reflect more light.

What are the dimensions of this berth light? The Sea-Dog 400400-1 Small Berth Light measures 3-9/16 inches by 2-15/16 inches by 3-3/4 inches by 4-3/8 inches (dimensions A through D) and weighs 0.6 pounds.

Does the berth light come with a bulb? Yes, the 400400-1 includes a 12 volt, 15 watt DC bulb with a double contact bayonet base, and it is prewired with an integral on/off switch.

Can this light be converted to LED? The 400400-1 can be converted to LED using a double contact bayonet base G4 adapter (442042-1) along with a G4 bulb, both sold separately.

What voltage does this light run on? The Sea-Dog Small Brass Berth Light operates on 12VDC.

How is the 400400-1 berth light mounted? It is designed for bulkhead or wall mounting and installs with three #6 round head fasteners, which are not included.

Is there a larger version of this berth light? Yes, Sea-Dog also offers a Large berth light (400410-1) with bigger overall dimensions; the 400400-1 is the Small size in the lineup.

What color is the light housing and lens? The 400400-1 has a polished brass housing with solid brass knurled adjusting knobs, and the lens is smoke-colored glass.

Where is the Sea-Dog 400400-1 berth light manufactured? The country of origin for this berth light is China.

Can I order a replacement bulb for this light separately? Yes, a replacement double contact bayonet base bulb (441142-1) is available separately for the Sea-Dog 400400-1 berth light.

Does the berth light have a built-in switch? Yes, the 400400-1 is prewired with an integral on/off switch so no separate switch wiring is needed.
