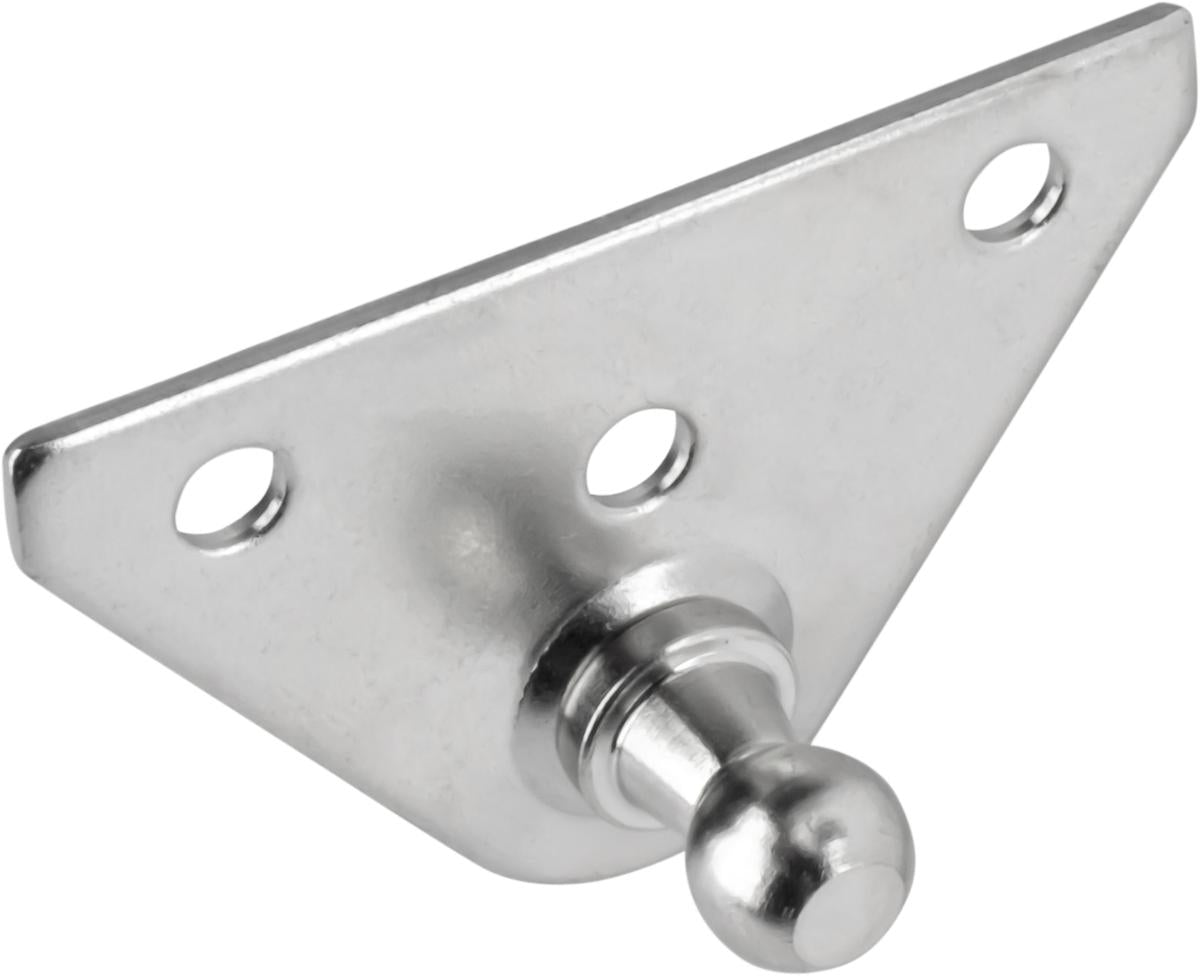

Sea-Dog Flush Gas Lift Mount, 304 Stainless Steel, 10mm Ball, Part 321583-1

The Sea-Dog Flush Gas Lift Mount (321583-1) is used for mounting gas filled lift springs on boat hatches, lids, and covers. It accepts a 10 mm ball fitting and is constructed of corrosion resistant stamped 304 stainless steel, giving it long-term durability in a marine environment. The flush mount design allows the bracket to sit level with the mounting surface for a clean, low-profile installation rather than standing proud. Installation requires three #10 RH (round head) fasteners, which are not included and must be supplied separately. With a finish of stainless and a compact footprint, this mount is intended as a mounting-point bracket for the ball end of a gas lift spring assembly, letting the spring pivot smoothly as the hatch or lid opens and closes. It is a small, purpose-built hardware component rather than a full spring or strut assembly, so it is typically ordered alongside a compatible gas lift spring with a matching 10 mm ball interface.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 321583-1
• Product Type: Flush Gas Lift Mount
• Material: 304 Stainless Steel
• Finish: Stainless
• Ball Size: 10 mm
• Fastener Type: #10 RH (Round Head), three required, not included
• Dimension A: 2-1/4 inches
• Dimension B: 1/2 inch
• Dimension C: 1-1/2 inches
• Dimension D: 1 inch
• Dimension E: 1-1/2 inches
• Weight: 0.06 pounds
• UPC: 035514321648
• Package Dimensions: 6 inches L x 4 inches W

Frequently Asked Questions

What is the Sea-Dog 321583-1 Flush Gas Lift Mount used for? It is used for mounting gas filled lift springs, such as those on boat hatches and lids, giving the spring's ball end a fixed, flush-mounted attachment point.

What size ball fitting does this mount accept? The Sea-Dog Flush Gas Lift Mount 321583-1 accepts a 10 mm ball fitting.

What material is the 321583-1 mount made of? It is constructed of corrosion resistant stamped 304 stainless steel.

Are mounting screws included with this mount? No, installation fasteners are not included. The Sea-Dog 321583-1 installs with three #10 RH (round head) fasteners that must be purchased separately.

How much does the Sea-Dog Flush Gas Lift Mount weigh? The 321583-1 weighs 0.06 pounds.

What are the dimensions of the 321583-1 mount? The mount measures 2-1/4 inches (A), 1/2 inch (B), 1-1/2 inches (C), 1 inch (D), and 1-1/2 inches (E) across its listed reference points.

Is this a flush mount or a surface mount design? The Sea-Dog 321583-1 is a flush gas lift mount, designed to sit level with the mounting surface rather than protrude above it.

What finish does the Sea-Dog 321583-1 have? It has a stainless finish.

How many fasteners are needed to install this mount? Three #10 RH fasteners are needed to install the Sea-Dog Flush Gas Lift Mount 321583-1; they are not included.

What is included when you order the 321583-1? The order includes the Sea-Dog Flush Gas Lift Mount itself; the #10 RH mounting fasteners are not included and must be sourced separately.
