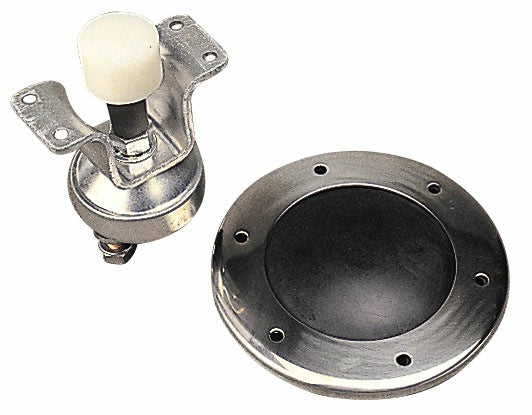

Sea-Dog Foot Switch 420430-1, Stainless Steel Momentary Deck Switch for Windlasses

The Sea-Dog Foot Switch, part number 420430-1, is a momentary-contact deck switch designed for hands-free operation of windlasses and other marine equipment. The switch is normally off and turns on only while depressed by foot, then returns to the off position when released, making it ideal for windlass control where continuous foot pressure should be required for safe operation.

Construction is stamped 304 stainless steel with a rubber cover, giving the switch strong corrosion resistance for exposed deck installations. A rubber seal combined with the stainless bezel keeps water out of the switch body, protecting the internal contacts from spray and rain. The switch is rated 12 volts at 30 amps, suitable for direct windlass circuit control.

Installation requires a 2 inch diameter hole to accept the switch body, with an overall footprint of 4-7/16 inches by 3-5/16 inches. The switch bracket can be mounted on the surface of the deck or mortised flush for a lower-profile installation. It installs using ten #8 RH fasteners, which are not included. A replacement rubber seal is available separately for this switch.

Specifications

• Brand: Sea-Dog
• Manufacturer Part Number: 420430-1
• Material: Stamped 304 stainless steel with rubber cover
• Switch Action: Normally off, momentarily on when depressed by foot
• Mounting Hole Size: 2 inches
• Overall Dimensions (A x B x C): 4-7/16 inches x 3-5/16 inches x 2 inches
• Voltage: 12 volts
• Amperage: 30 amps
• Fastener Type: #8 RH (not included, 10 required)
• Mounting Style: Surface mount or flush mortise mount
• Weight: 0.752 pounds
• UPC: 035514420341

Fitment

Universal foot switch for windlasses and other 12 volt marine deck equipment requiring a momentary-contact foot control.

Replaces (OEM)

No OEM cross-reference numbers apply to this part.

Frequently Asked Questions

What is the Sea-Dog 420430-1 foot switch used for? This foot switch is designed to control windlasses and other 12 volt marine deck equipment, providing momentary on operation while the pedal is depressed by foot.

How does the momentary action work? The 420430-1 foot switch is normally off and only closes the circuit while it is being pressed; releasing the pedal returns it to the off position, which is a common safety feature for windlass controls.

What size hole do I need to install this switch? A 2 inch diameter hole is required to mount the Sea-Dog 420430-1 foot switch.

What are the overall dimensions of the switch? The 420430-1 measures 4-7/16 inches by 3-5/16 inches, with a 2 inch mounting hole depth dimension, per Sea-Dog specifications.

What voltage and amperage is this switch rated for? 12 volts at 30 amps is the rating for the Sea-Dog 420430-1 foot switch.

Can this foot switch be mounted flush with the deck? Yes, the switch bracket for the 420430-1 can either be mounted on the surface of the deck or mortised in for a flush installation.

What is the switch made of? Corrosion resistant stamped 304 stainless steel with a rubber cover is used to construct the Sea-Dog 420430-1 foot switch, making it suited to exposed marine deck environments.

How is the switch protected from water? A rubber seal paired with the stainless steel bezel on the 420430-1 keeps water out of the switch housing.

Are mounting fasteners included with the switch? No, the Sea-Dog 420430-1 installs with ten #8 RH fasteners that are not included and must be sourced separately.

How much does the foot switch weigh? The Sea-Dog 420430-1 foot switch weighs 0.752 pounds.

Is a replacement seal available for this switch? Yes, Sea-Dog offers a separate replacement seal for the 420430-1 foot switch.
