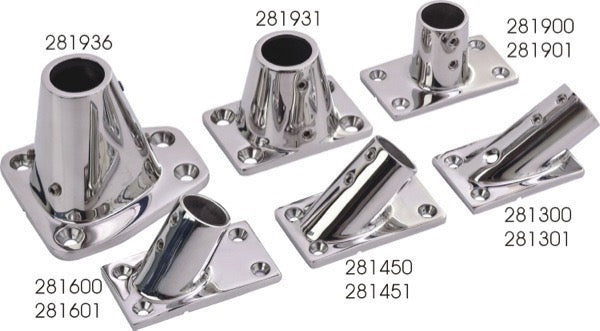

Sea-Dog Rectangular Base Rail Fittings - 316 Stainless Steel, Available in 60 Degree x 7/8" to 90 Degree x 1" Tube

Sea-Dog rectangular base rail fittings let you change the direction of stainless steel tube runs on rails, towers, and bimini frames without welding or custom bending. Each fitting is investment cast from 316 stainless steel for long-term corrosion resistance in saltwater environments, and mounts to a rectangular base pad with flat head fasteners for a low-profile, secure attachment. The rectangular base spreads mounting loads over a wider footprint than round bases, making these fittings a good choice for higher-stress bend points on rails and towers.

This line covers two common bend/tube combinations: a 60 degree bend for 7/8 inch tube and a 90 degree bend for 1 inch tube, so you can match the fitting to both the direction change and the tube diameter already in use on your boat.

Specifications

• Brand: Sea-Dog
• Material: Investment cast 316 stainless steel
• Base type: Rectangular
• Fastener size: #10 flat head (FH), four required per fitting (not included)
• Set screws: Included where appropriate; replacement set screws sold separately as 299999-1
• Installation tool: 1/8 inch Allen wrench
• Fit type: Universal fit
• Available bend angles: 60 degree, 90 degree
• Available tube sizes: 7/8 inch, 1 inch

Sizes & Options

Choose your fitting by matching both the bend angle you need and the outer diameter of the tube it will connect to. The 60 degree option is sized for 7/8 inch tube, while the 90 degree option is sized for 1 inch tube. Measure your existing rail or tower tube's outer diameter before ordering, since fittings are not interchangeable between tube sizes, and confirm the bend angle matches the direction change required at that point in the frame.
