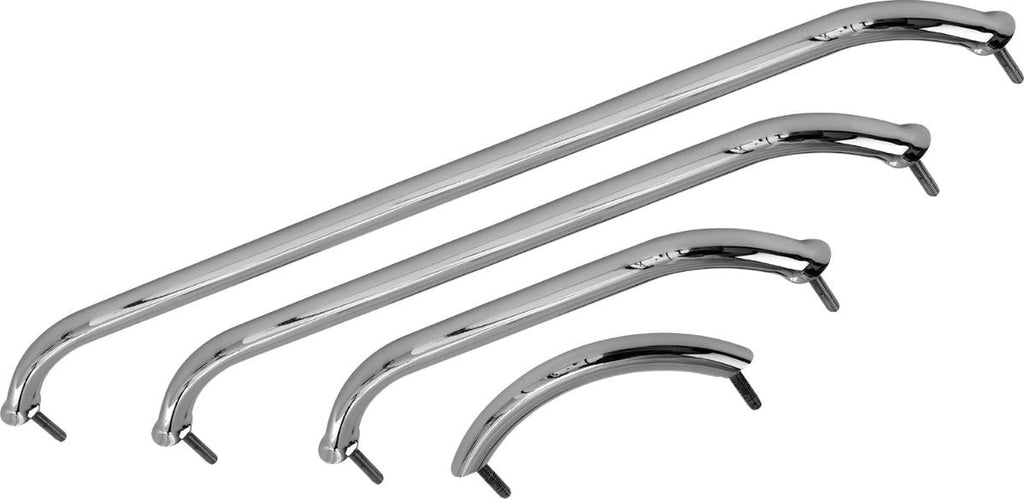

Sea-Dog Stud Mount Handrail - 304 Stainless Steel Boat Handrail, Available in 18-1/2" to 24"

The Sea-Dog Stud Mount Handrail is a formed 304 stainless steel grab rail designed to give crew and passengers a secure, corrosion resistant handhold anywhere a boat needs one - companionway steps, swim platforms, cabin tops, or cockpit coamings. Each rail is built from a single piece of polished 304 stainless tube, formed into a low-profile arch with integral threaded studs at each end so mounting hardware is concealed beneath the deck or mounting surface for a clean, finished look. Sea-Dog offers this handrail line in two overall lengths to fit different mounting spans, so you can match the rail to the surface you are outfitting without cutting or modifying tubing.

Specifications

• Brand: Sea-Dog
• Material: 304 Stainless Steel (formed)
• Finish: Stainless
• Tube Outside Diameter: 3/4 inch
• Mounting Studs: 5/16"-18 threaded studs, integral
• Fastener: 5/16"-18 Nut (not included)
• Height (C): 2 inches
• Base Dimension (D): 1-1/4 inches

Sizes & Options

This handrail line is available in 18-1/2 inch and 24 inch overall lengths (part numbers 254118-1 and 254124-1). Measure the mounting span you need to bridge - the distance between the two stud centers - before ordering, since the two lengths are not interchangeable once studs are cut into the mounting surface. Each rail ships as a single unit; mounting nuts are not included and should be sourced separately in 5/16"-18 stainless steel to match the rail's finish.
