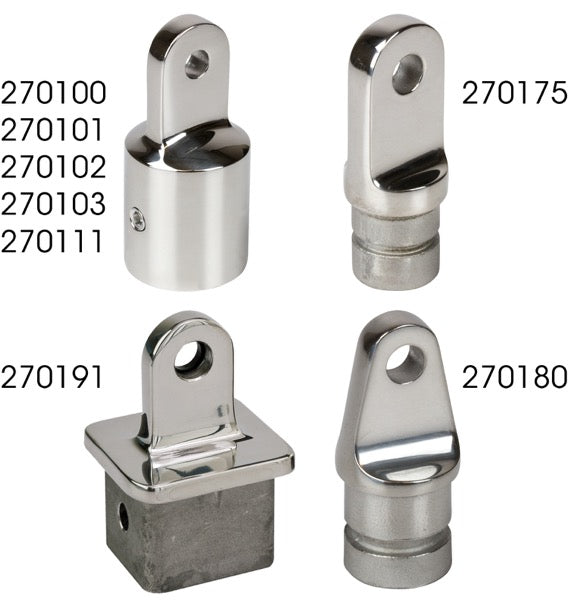

Sea-Dog Top Cap Bimini Fitting, 316 Stainless Steel - Available in 7/8" to 1" Tube O.D.

The Sea-Dog Top Cap is a precision investment-cast 316 stainless steel fitting that caps the end of round Bimini top tubing while doubling as the pivot point for the frame. As the tubing folds or raises, the top cap keeps the joint smooth and secure, and its mirror-polished chrome finish resists saltwater corrosion far better than plated steel alternatives. Each cap accepts a set screw (sold separately) through the pin hole to lock it firmly onto the tube, and installation only requires a 1/8 inch Allen wrench.

Specifications

• Brand: Sea-Dog
• Material: 316 Stainless Steel, Investment Cast
• Finish: Chrome
• Color: Gray
• Connector Type: Cap
• Pin Size: 1/4 inch
• Thread Type: NPT
• Installation Tool Required: 1/8 inch Allen wrench
• Standard Pack: 10 each

Sizes & Options

This top cap fitting is offered in two tube sizes: 7/8 inch and 1 inch outer diameter. Measure the outer diameter of your existing Bimini top tubing before ordering, as the cap must match the tube O.D. precisely for a secure, wobble-free pivot. If your tubing measures larger than 1 inch, look for Sea-Dog's 1-1/8 inch or 1-1/4 inch top cap part numbers instead.
