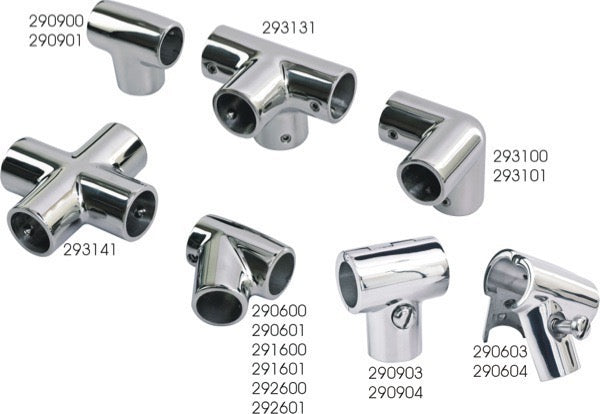

Sea-Dog Universal Hand Rail Tee Fitting, 7/8" Tube O.D. - Available in 60 Degree and 90 Degree

The Sea-Dog Universal Hand Rail Tee joins three sections of 7/8 inch outer diameter boat rail tubing at a fixed angle, giving you a strong, corrosion-resistant junction anywhere your rail system branches, such as at a bow pulpit, ladder opening, or T-top support. Investment cast from marine-grade stainless steel, each tee is built to handle constant saltwater exposure, vibration, and UV without pitting or fading, and its finished, modern profile matches the rest of your Sea-Dog rail hardware for a clean, factory-look installation.

Because it is a Universal (non-hinged) fitting, the angle is fixed at the factory rather than adjustable on the boat, which means a stronger, rattle-free joint once installed. Choose the angle that matches the geometry of your rail run: 60 degrees for tighter, more acute branch points and 90 degrees for perpendicular tee-offs, the most common configuration on straight rail sections.

Specifications

• Brand: Sea-Dog
• Fitting type: Universal (fixed-angle) hand rail tee
• Tube outer diameter: 7/8 inch
• Angle options: 60 degrees, 90 degrees
• Material: Investment cast stainless steel (316 stainless on the 60 degree version)
• Finish/color: Black, modern style
• Sold individually, per fitting

Sizes & Options

This tee fitting is sold by angle, not by length, since it is a junction fitting rather than a straight tube section. Measure the angle needed where your rail branches: pick the 60 degree tee for sharper, angled branch points such as swept bow rails, or the 90 degree tee for standard perpendicular tee-offs. Both versions fit the same 7/8 inch O.D. tubing, so confirm your existing rail tube diameter before ordering, as Sea-Dog also offers this tee in other tube sizes as separate part numbers.
